High-Uniformity PE Rotomolding Powder Production with an 800 Model Disc Pulverizer

For large-scale rotational molding operations, powder quality is not a secondary detail; it is the foundation of product appearance, wall-thickness consistency, mechanical strength, cycle stability, and overall manufacturing cost. A high-capacity PE rotomolding powder pulverizer must do far more than reduce plastic granules into smaller particles. It must create a controlled powder with a narrow particle size distribution, stable flowability, low thermal degradation, minimal dust loss, and repeatable quality over long production runs. The 800 model PE rotomolding pulverizer is engineered for this demanding production environment, where high throughput and high uniformity must be achieved at the same time.

This 800 model disc pulverizer is designed as a heavy-duty, ultra-high-capacity solution for manufacturers of large water tanks, pallets, trash bins, playground products, industrial containers, and other rotationally molded PE products. It is also suitable for PE powder suppliers, recycling operations that re-pulverize waste rotomolding products, and production lines serving powder-demanding applications such as SPC flooring core layers, hot-melt adhesive powder, and industrial plastic powder processing. With an 800 mm grinding disc diameter, a robust motor configuration, inverter speed control, DC53 separated grinding blades, vacuum feeding, stainless-steel conveying pipes, water cooling, air conveying, vibrating screening, and efficient dust collection, the system is built for continuous production and consistent powder performance.

In competitive powder production, output alone is not enough. A machine that produces a large volume of powder but generates excessive fines, overheated particles, broad particle size variation, poor flowability, high dust emission, frequent blade replacement, or unstable operation will eventually increase the real cost per ton. The value of the 800 model pulverizer lies in its balance of capacity, stability, blade metallurgy, precision machining, cooling control, dust recovery, and long-term service economics. It is positioned as a high-performance pulverizing platform for factories that want to reduce reject rates, improve powder quality, lower labor intensity, and increase production efficiency.

Why Powder Uniformity Matters in PE Rotomolding

Rotational molding depends on the behavior of powder inside a heated mold. Unlike injection molding or extrusion, where molten polymer is forced through a controlled flow channel, rotomolding relies on powder particles melting, sintering, and flowing gradually over the inner surface of the mold as it rotates. This makes powder particle size, particle shape, and distribution especially important. If the powder is too coarse, melting may be incomplete, surface texture may become rough, corners may not fill properly, and cycle times may increase. If the powder contains too many fines, dusting, poor handling, inconsistent bulk density, and thermal degradation can occur. If the powder distribution is too wide, the final product can show uneven thickness, weak areas, pinholes, or inconsistent surface quality.

A high-quality PE rotomolding powder usually requires controlled fineness, good flowability, low contamination, and stable thermal history. The pulverizing process must cut and grind the material efficiently without overheating it. Overheating may soften the polymer in the grinding chamber, causing sticking, clumping, smearing, and reduced flowability. In severe cases, the powder can suffer oxidation or degradation, which affects color, mechanical performance, and long-term durability of molded products. Therefore, the key challenge is to create fine, uniform PE powder while controlling temperature and maintaining throughput.

The 800 model pulverizer addresses this challenge through a combination of high-quality grinding discs, precise tooth grinding, dynamic balancing, reinforced cooling, controlled feeding, airflow conveying, and screening. These features are particularly important for large factories because small variations that may be tolerated in small batch production become major cost drivers at high output. When a factory produces hundreds of kilograms per hour, even a small percentage of off-spec powder can create significant waste. Consistency is therefore a direct contributor to profitability.

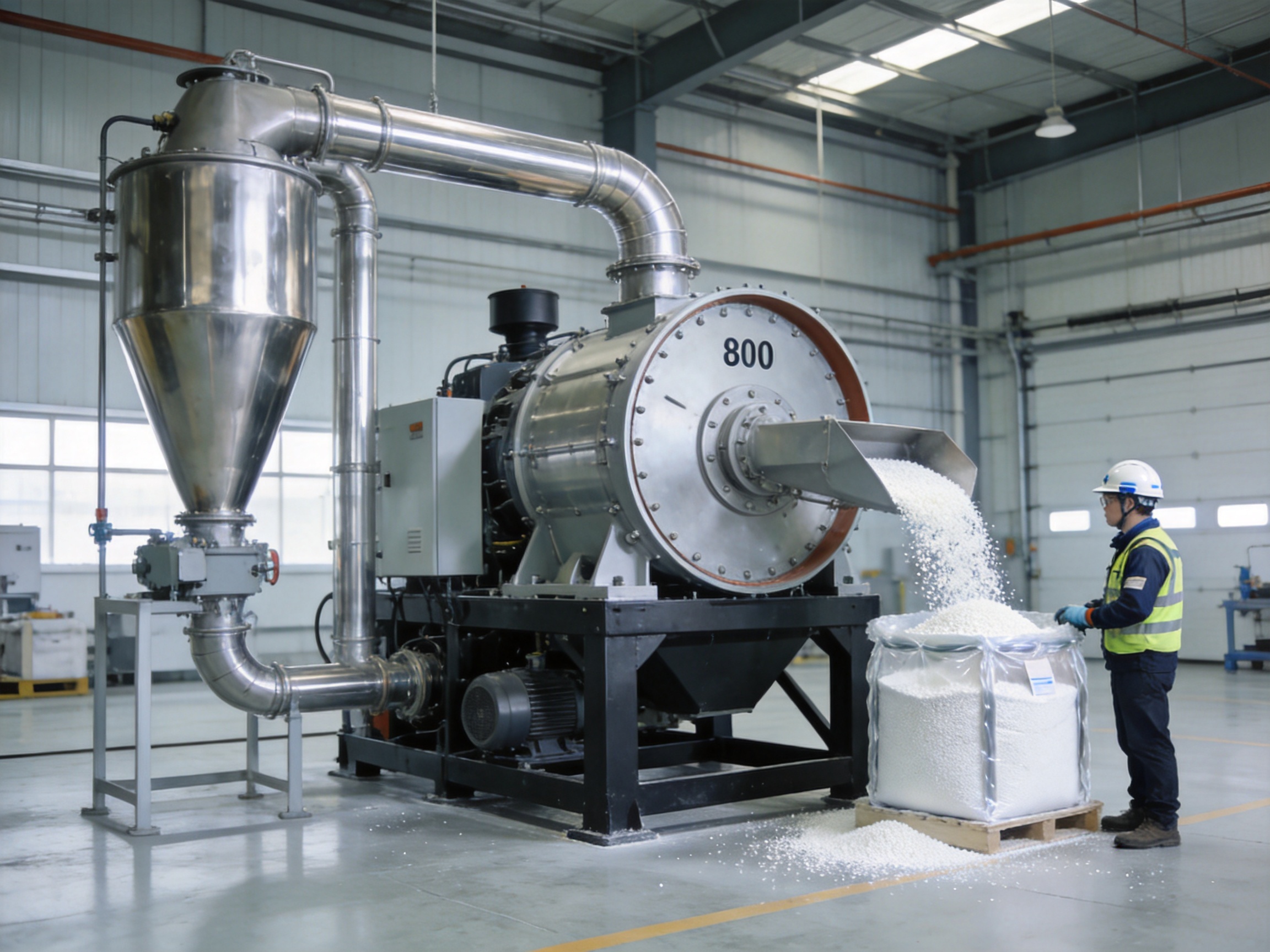

Core Positioning of the 800 Model Pulverizer

The 800 model is a heavy-duty pulverizing system developed for high-volume PE rotomolding powder production. Its 800 mm disc diameter provides a large working area for grinding, and its drive motor options of 75 kW, 90 kW, 110 kW, or 132 kW allow the machine to be configured according to capacity targets, material behavior, and required mesh size. Standard capacity data indicates a typical range of 450 to 900 kg/h, while optimized PE rotomolding applications may achieve higher output depending on material type, feed size, moisture condition, blade condition, screen selection, and target fineness. This flexibility makes the system suitable for both dedicated powder factories and integrated rotomolding manufacturers that need their own internal powder production capability.

The system is especially valuable where powder uniformity is a competitive requirement. In the rotomolding market, the quality of finished products is often judged by surface smoothness, color consistency, wall thickness, impact strength, and product reliability. These finished-product characteristics begin with raw material powder. By producing powder with controlled particle size and strong flow characteristics, the 800 model helps downstream production achieve better mold coverage, more predictable cycle times, and lower defect rates.

Compared with smaller pulverizers, the 800 model is designed to deliver significantly higher capacity while maintaining stable operation. It occupies approximately 8 to 12 square meters depending on line layout and auxiliary equipment. Total installed power varies according to configuration, typically in the range of 75 to 110 kW for many setups, with higher drive motor selections available for more demanding applications. Its working design is intended for factories that require long operating hours, continuous production, and dependable powder quality under industrial conditions.

Key Technical Specifications

DC53 Grinding Disc Material: A Major Advantage Over Conventional Solutions

One of the strongest advantages of the 800 model pulverizer is its use of DC53 high-grade cold-work mold steel for the grinding discs and separated blades. In many conventional pulverizers, standard tool steels such as D2 are used. D2 can be effective in some applications, but high-output PE rotomolding powder production places continuous stress on cutting edges. Blade wear changes the grinding gap, increases heat generation, broadens particle size distribution, reduces powder uniformity, and eventually forces shutdown for maintenance.

DC53 offers a stronger balance of hardness and toughness. With a hardness level around HRC 62 to 64, it provides excellent wear resistance while maintaining better toughness and anti-chipping performance than many conventional options. In practical terms, this means the grinding edges can remain sharp for longer, the pulverizer can maintain more stable powder quality over extended runs, and the factory can reduce the frequency of blade replacement or refurbishment. The service life can be significantly longer than standard discs, often described as 1.5 to 2.5 times longer depending on material conditions and operating practices.

This blade advantage is not merely a maintenance benefit. It directly affects powder quality. Sharp, accurately formed blade teeth cut and shear plastic more cleanly. Dull or chipped teeth tend to tear, rub, heat, and smear material. This can produce irregular particles, excess dust, and poor flow. By using premium disc material and maintaining precise blade geometry, the 800 model supports the narrow particle size distribution required for high-quality rotomolding powder.

The separated blade structure also contributes to serviceability. Instead of treating the entire disc as a single consumable component, separated blade designs can simplify maintenance strategies and make refurbishing more practical. For high-volume factories, long-term tooling cost matters. If blade refurbishment costs only a fraction of the cost of new discs, the lifetime cost of ownership becomes more favorable. This is particularly important in plants running multiple shifts, where tooling expense and downtime have a direct effect on profitability.

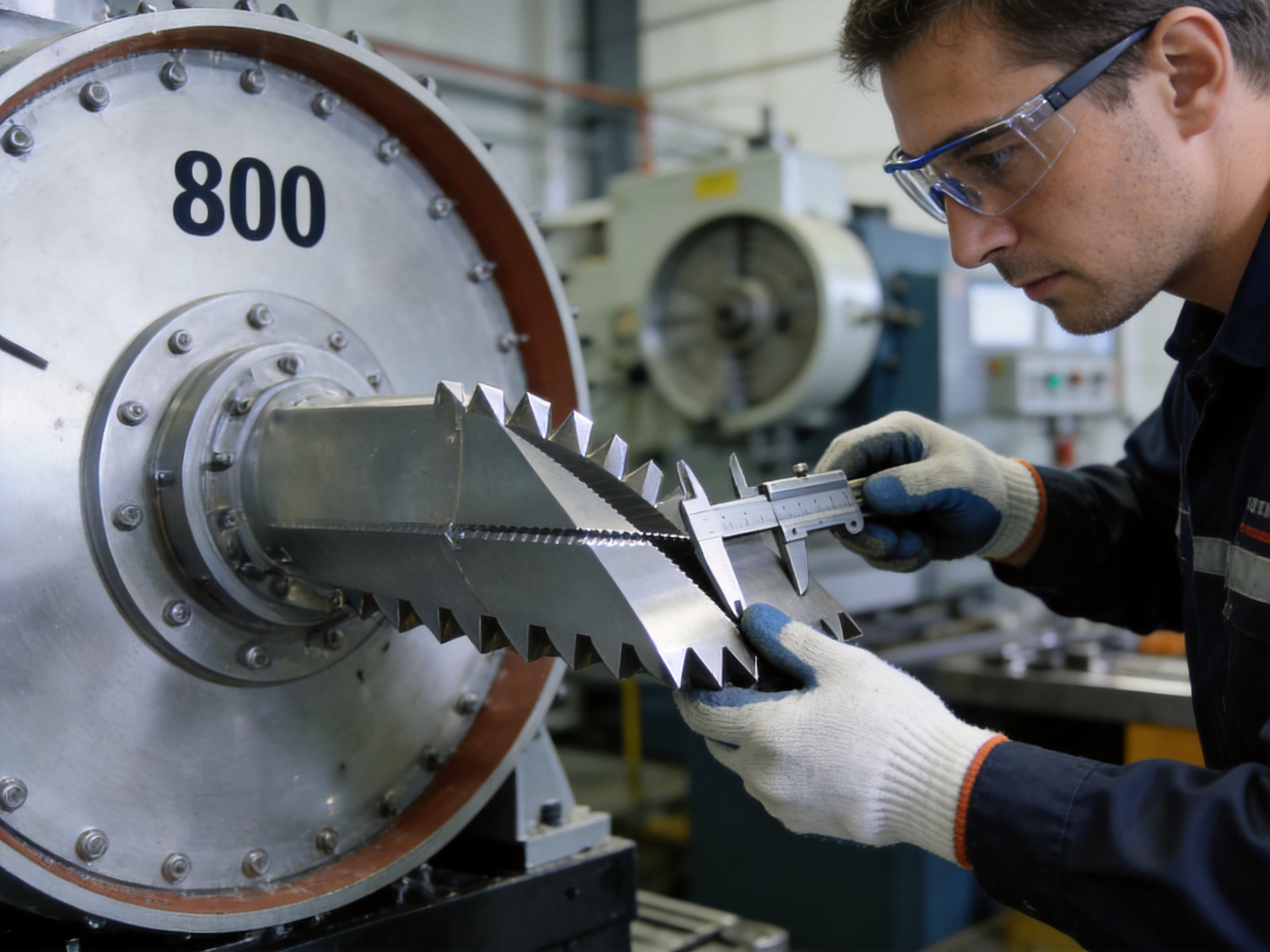

Precision Tooth Grinding and Micron-Level Consistency

Blade material alone is not enough. A superior steel disc will not deliver superior powder if the teeth are not ground accurately. The 800 model benefits from precision grinding processes using imported Taiwanese professional CNC tool grinders built to high technical standards. Tooth-by-tooth precision grinding ensures that blade angles, cutting edges, tooth profiles, and surface consistency are tightly controlled. This manufacturing discipline is crucial because disc pulverizing depends on extremely small mechanical relationships between moving and fixed grinding surfaces.

When tooth geometry varies, the grinding chamber produces uneven cutting action. Some areas may cut aggressively while others rub material, causing heat, vibration, and particle distribution variation. High-precision tooth grinding helps create a more uniform cutting field across the disc surface. The result is better powder consistency, more predictable throughput, and reduced process instability.

For PE rotomolding powder, consistent tooth angle and edge sharpness contribute to a narrow particle size distribution. A narrow distribution improves powder behavior in the mold, reduces downstream defects, and supports smoother finished surfaces. Manufacturers producing large tanks, containers, bins, or products requiring reliable wall thickness benefit from this consistency because it reduces the risk that powder performance will change during a production shift.

This precision also improves energy efficiency. Clean cutting generally requires less wasted energy than frictional rubbing. When blades are accurately ground and properly balanced, the pulverizer can convert more motor power into effective size reduction rather than heat and vibration. Over months of operation, this contributes to lower electricity consumption per ton of finished powder.

Dynamic Balancing for Smooth, Stable, and Low-Vibration Operation

High-speed rotating components in a large disc pulverizer must be balanced precisely. An 800 mm disc operating under industrial load can generate significant vibration if imbalance exists. Vibration is more than an operator comfort issue. It accelerates bearing wear, stresses the spindle, affects reducer life, loosens fasteners, increases noise, reduces powder consistency, and may create safety risks. Therefore, dynamic balancing is a core requirement for premium pulverizer manufacturing.

The 800 model is produced with rigorous dynamic balancing using high-precision German balancing equipment. The goal is stable rotation, low vibration, and long service life of key mechanical assemblies. The machine is known for excellent vibration control, often described with the familiar image of coin-standing stability. While this image is symbolic, the technical point is clear: stable rotation helps the machine maintain consistent grinding conditions.

Low vibration also improves blade life. When a disc rotates smoothly, the grinding gap remains more stable and the blades experience more uniform loading. This reduces the chance of localized impact, tooth chipping, or uneven wear. In contrast, a poorly balanced pulverizer may show faster wear on specific zones, causing powder quality to deteriorate unevenly and making maintenance less predictable.

Noise performance is another practical advantage. Noise levels below 85 dB are valuable in industrial workshops because they improve the working environment and support compliance with occupational safety expectations. Lower noise often reflects better mechanical stability, better component alignment, and better airflow design. For factories operating around the clock, a quieter, smoother pulverizer is easier to manage and maintain.

Reinforced Cooling to Prevent Sticking, Clumping, and Degradation

PE pulverizing is highly sensitive to temperature. If the grinding chamber temperature rises too high, polyethylene can soften, smear, stick to the disc, form clumps, and lose flowability. In high-output production, heat generation can be intense because more material passes through the grinding zone and more mechanical energy is converted into thermal energy. The 800 model addresses this with a reinforced cooling strategy that combines water cooling and forced air movement.

The water-cooling system uses a jacket and circulation path with inlet and outlet flow to remove heat from the grinding area. This helps maintain a controlled operating temperature and reduces the risk of heat accumulation during long production runs. In many PE rotomolding powder applications, maintaining the grinding chamber within a controlled range is essential for preventing sticking and ensuring the powder remains free-flowing.

Airflow also contributes to cooling and material transport. The blower motor, available in 11 or 15 kW configurations, supports negative-pressure conveying and powder movement away from the grinding chamber. By removing powder promptly, the system reduces residence time in the hot zone. Shorter residence time helps preserve powder quality and reduces the risk of thermal damage.

Cooling performance is a major advantage over lower-cost pulverizers that rely on less effective heat removal. In those machines, operators may need to reduce feed rate, stop frequently for cleaning, or accept inconsistent powder quality during long runs. The 800 model is intended for continuous industrial use, so temperature control is built into its core design rather than treated as an optional convenience.

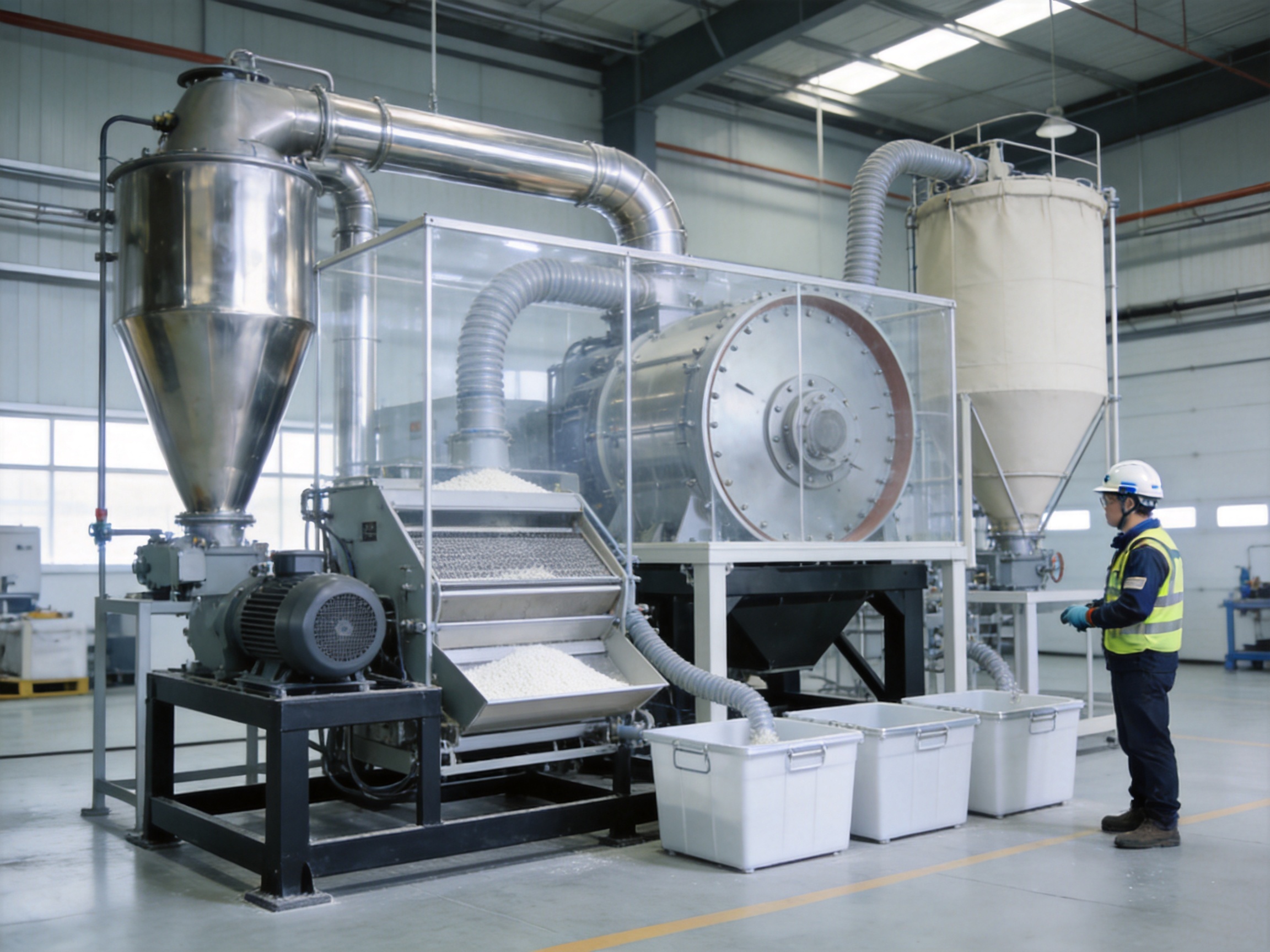

Negative-Pressure Conveying and Efficient Dust Collection

Dust management is essential in plastic powder production. Fine polymer dust can create workshop cleanliness problems, material loss, equipment contamination, and occupational health concerns. In addition, dust that escapes the system represents lost product. A modern pulverizing line must therefore combine production efficiency with environmental control.

The 800 model uses a fully enclosed industrial-grade negative-pressure airflow conveying system together with a high-efficiency pulse bag dust collector. Negative pressure helps keep powder inside the conveying path instead of allowing dust to escape into the surrounding area. The pulse bag dust collector captures fine particles and supports material recovery. A dust capture rate above 99.9 percent can help factories meet strict environmental expectations and maintain a cleaner workshop.

Compared with open or poorly sealed powder handling systems, this enclosed design offers several practical benefits. It reduces dust deposition on machinery, floors, electrical cabinets, and nearby production areas. It improves working conditions for operators. It reduces raw material waste. It also supports stable powder collection and packaging because the finished material is conveyed and classified in a controlled way.

In large factories, dust control has a direct economic value. A small percentage of powder loss may seem minor, but over high-volume daily production it can become a significant material cost. Capturing powder efficiently helps improve yield and lowers cost per ton. Cleaner operation also reduces cleaning labor and supports more professional factory management.

Vacuum Feeding for Cleaner and More Stable Material Input

Feeding consistency is one of the most important factors in pulverizer stability. If feed material enters too quickly, the machine may overload, generate excess heat, or produce coarser powder. If feed is too slow or uneven, output fluctuates and powder quality may become inconsistent. Vacuum feeding supports cleaner, more controlled material delivery and reduces manual handling.

By using vacuum feeding, the 800 model helps integrate the pulverizer into automated or semi-automated production lines. Operators do not need to manually load material into the machine as frequently, reducing labor intensity and improving safety. Cleaner feeding also reduces contamination risk because material is transported through a defined conveying system rather than being repeatedly exposed to the workshop environment.

Stable feeding works together with inverter speed control. The inverter allows the operating speed to be adjusted according to material behavior, fineness requirement, and production target. This gives process engineers more control than fixed-speed systems. For example, a plant may choose one setting for standard PE granules and another for recycled PE material with different toughness, moisture condition, or particle size. This flexibility helps maintain stable powder quality across different production scenarios.

Screening and Classification for Final Powder Control

After grinding, powder must be classified so that the finished product meets the required mesh specification. The 800 model includes a swing vibrator with a diameter option of 1200 or 1500 mm, supported by a vibrating screen motor of 1.1 or 1.5 kW. Screening separates acceptable powder from oversized particles, allowing the production line to maintain a consistent finished powder grade.

Effective screening is especially important for rotomolding powder because oversized particles can affect mold coverage and melting behavior. If coarse particles remain in the final powder, finished products may show surface roughness or uneven wall formation. If screening is too restrictive or inefficient, output may decrease and excessive recycling of material may occur. A properly sized vibrating screen balances throughput and classification accuracy.

The combination of precision pulverizing and effective screening helps produce powder with a controlled distribution. This reduces downstream variation and makes it easier for rotomolding operators to maintain stable process settings. In high-volume production, stable powder classification reduces the need for frequent adjustments on the molding line, improving overall plant efficiency.

Stainless-Steel Conveying Pipes and Industrial Cleanliness

The use of all stainless-steel pipe material is another important design detail. Stainless steel is durable, clean, and resistant to corrosion. In powder conveying systems, pipe material affects contamination risk, wear behavior, maintenance requirements, and overall appearance of the production line. For manufacturers supplying rotomolding powder to customers, the cleanliness and professionalism of the powder production system can also influence customer confidence.

Stainless-steel pipes reduce the chance of rust contamination and are easier to clean than many ordinary steel alternatives. They also support long service life in environments where dust, vibration, and continuous airflow are present. Pipe diameter options of 178 or 203 mm allow the conveying system to be matched to production volume and airflow requirements.

In competitor systems, lower-cost pipe materials may reduce initial purchase cost but create long-term maintenance and contamination concerns. For high-quality PE powder, even minor contamination can be unacceptable, especially when producing colored powder or products with strict appearance requirements. Stainless-steel conveying is therefore a practical quality-control feature, not merely an aesthetic upgrade.

Advantages Over Conventional Pulverizers

The 800 model pulverizer provides a set of advantages that differentiate it from many conventional plastic pulverizers. The first advantage is capacity. With a large 800 mm disc and strong drive motor options, it is suitable for heavy production schedules and large factories. Smaller machines may require multiple units to reach similar output, increasing floor space, labor, maintenance complexity, and energy use. A single high-capacity system can simplify production management and reduce unit cost.

The second advantage is powder uniformity. Precision-ground DC53 blades, accurate disc manufacturing, stable dynamic balance, controlled temperature, and proper screening work together to produce a narrower particle size distribution. Competitor machines that use lower-grade steel, less precise grinding, or poorer balancing may produce wider distributions, more fines, more coarse particles, and less predictable flowability. This affects downstream rotomolding quality and can increase reject rates.

The third advantage is tool life and maintenance economics. DC53 blade material and professional refurbishing capability can extend service intervals and reduce tooling costs. A machine with cheap blades may appear economical at purchase, but frequent sharpening, blade replacement, powder quality decline, and downtime can make it more expensive over time. For high-output powder plants, long-term maintenance cost is often more important than initial machine price.

The fourth advantage is cooling stability. The combination of water cooling and airflow helps prevent overheating, sticking, and clumping. Lower-cost systems may struggle during long production runs, forcing operators to reduce feed rate or stop for cleaning. The 800 model is built for continuous operation where stable powder quality must be maintained across full shifts.

The fifth advantage is environmental performance. Enclosed negative-pressure conveying and pulse bag dust collection reduce dust emissions and recover valuable powder. This supports cleaner workshops, lower raw material waste, and better compliance with factory environmental standards. In many modern plants, dust control is not optional; it is a requirement for safe, efficient, and professional operation.

Manufacturing Strength Behind the Machine

The quality of a pulverizer depends not only on its design but also on the manufacturing capability behind it. Changzhou Mao Yue Intelligent Equipment Co., Ltd. is a source manufacturer with 30 years of experience in plastic crushing and pulverizing equipment. The company has participated in the development of the plastic pulverizer market and focuses on equipment for rotational molding, masterbatch, polymers, PVC, PE, recycling, and powder coating applications.

The company operates six processing workshops, each averaging about 1,400 square meters. This production scale supports component machining, welding, assembly, testing, and customization. A strong workshop base matters because pulverizers require precise manufacturing of heavy rotating parts, frames, grinding discs, conveying systems, cooling components, and dust collection assemblies. The ability to control these processes internally helps improve consistency and delivery reliability.

The manufacturing environment includes Taiwan-imported high-precision grinding machines built to German standards, German dynamic balancing equipment, and Japanese welding systems. These investments are important because high-performance pulverizers require accuracy at several stages. Grinding disc teeth must be formed precisely. Rotating assemblies must be balanced accurately. Machine frames and welded structures must be strong and stable. Poor welding or machining can lead to vibration, misalignment, wear, and reduced service life.

The company also has a professional technical team that studies advanced machine technologies from countries such as Germany. Continuous technical learning helps improve machine design, process control, and component reliability. For customers, this means the equipment is not merely copied from old designs but continuously refined according to production feedback, international standards, and application needs.

European Quality Orientation and Certified Management

The manufacturer is committed to producing components according to European quality standards. This approach is reflected in the selection of belt pulley standards, dynamic balancing practices, machining precision, safety awareness, and quality management. The machine can use European-standard belt pulley arrangements, supporting reliability and ease of maintenance. Such details may seem small, but in industrial equipment they affect daily operation and spare part management.

The company has obtained CE mechanical certification and ISO 9001 quality management system certification. CE certification reflects attention to machine safety and compliance considerations, while ISO 9001 indicates a structured quality management process. For international customers, these certifications provide confidence that the manufacturer understands export requirements, documentation, quality control, and repeatable production management.

Quality management is especially important for customized equipment. Pulverizing lines often need to match specific factory layouts, materials, output goals, mesh requirements, voltage standards, dust-control expectations, and packaging methods. A structured manufacturer can better translate customer requirements into machine configuration and ensure that the final line performs as expected.

Application Scenarios in Large-Scale Production

The 800 model is particularly suitable for large-scale rotomolding product manufacturers that need a stable powder source. Large water tanks, pallets, trash bins, road barriers, playground equipment, industrial containers, agricultural tanks, and similar products consume significant volumes of PE powder. If a factory depends entirely on external powder suppliers, it may face supply delays, price fluctuations, and limited control over powder specification. By installing an internal pulverizing line, the factory can improve supply security and adjust powder characteristics according to its molding requirements.

Powder suppliers can also benefit from the machine because it supports high output and professional powder quality. Customers purchasing rotomolding powder often demand consistent mesh, good flowability, clean packaging, and stable batch-to-batch performance. A high-capacity pulverizer with good cooling and screening helps suppliers meet these requirements while maintaining competitive production costs.

The machine is also suitable for recycling and re-pulverizing waste PE rotomolding products. Rotomolding factories often generate scrap from trimming, failed parts, color changes, or returned products. Recycling this material into powder can reduce waste and recover value. However, recycled material may behave differently from virgin PE, so stable feeding, cooling, and blade strength are important. The 800 model’s robust construction and adjustable operation make it practical for such applications when proper preprocessing is performed.

Beyond rotomolding, the system can support powder production for SPC flooring core layer materials, hot-melt adhesive powder, industrial plastic powder, and other size-reduction processes where controlled particle size is needed. Material testing is always recommended for non-standard applications, but the heavy-duty architecture provides a strong foundation for broad industrial use.

Return on Investment and Cost Per Ton

For industrial buyers, a pulverizer is an investment, not simply a purchase. The real question is how quickly the machine can reduce cost, increase output, improve quality, and generate profit. The 800 model is positioned for a typical return-on-investment period of approximately 6 to 12 months in suitable production environments, driven by high throughput, low electricity consumption per ton, reduced blade replacement frequency, lower reject rates, and increased production capacity.

Several factors influence ROI. The first is production volume. A high-capacity machine creates the greatest value when the factory has enough demand to use its output. If a plant runs the machine for multiple shifts, the fixed investment is spread across more tons of powder. The second factor is powder purchase cost. If a rotomolding manufacturer currently buys powder at a premium, producing powder internally can create immediate savings. The third factor is scrap recovery. Re-pulverizing suitable PE waste can reduce raw material loss and improve sustainability.

The fourth factor is product quality improvement. Better powder uniformity can reduce defects such as rough surfaces, uneven thickness, weak corners, and insufficient strength. Each rejected rotomolded product represents wasted material, energy, machine time, labor, and mold capacity. Reducing reject rates can therefore produce large hidden savings. The fifth factor is maintenance cost. Longer blade life and lower vibration reduce downtime and spare part expense.

Energy efficiency must also be evaluated per ton rather than by motor power alone. A high-powered machine may consume more instantaneous electricity, but if it produces far more powder per hour with stable quality, its electricity cost per ton can be lower than smaller or less efficient machines. This is why large factories often prefer a well-engineered high-capacity pulverizer rather than several smaller machines running near their limits.

Operational Stability for 24/7 Production

Large powder factories often require continuous operation. Machines may run for long periods with limited shutdown windows. Under these conditions, weak design points become obvious. Bearings, spindle assemblies, reducers, belts, discs, feeding systems, screens, blowers, and dust collectors must all work reliably. The 800 model is built with industrial-grade stability in mind, combining strong mechanical structure, balanced rotating components, durable blade material, and controlled thermal management.

Stable continuous operation depends on preventive maintenance. Operators should monitor bearing temperature, vibration, motor load, screen condition, dust collector pressure, cooling water flow, and powder quality. Blades should be inspected and refurbished before severe wear damages powder uniformity. Screens should be cleaned and replaced as needed. Dust collector bags should be maintained to preserve airflow and dust capture efficiency. When properly operated, the machine can support long production runs with consistent powder quality.

The advantage of a premium pulverizer is that maintenance becomes more predictable. Instead of reacting to frequent breakdowns or sudden quality changes, factories can schedule service around planned production stops. This improves production planning and reduces emergency downtime. For companies supplying powder to customers, predictable output also supports more reliable delivery commitments.

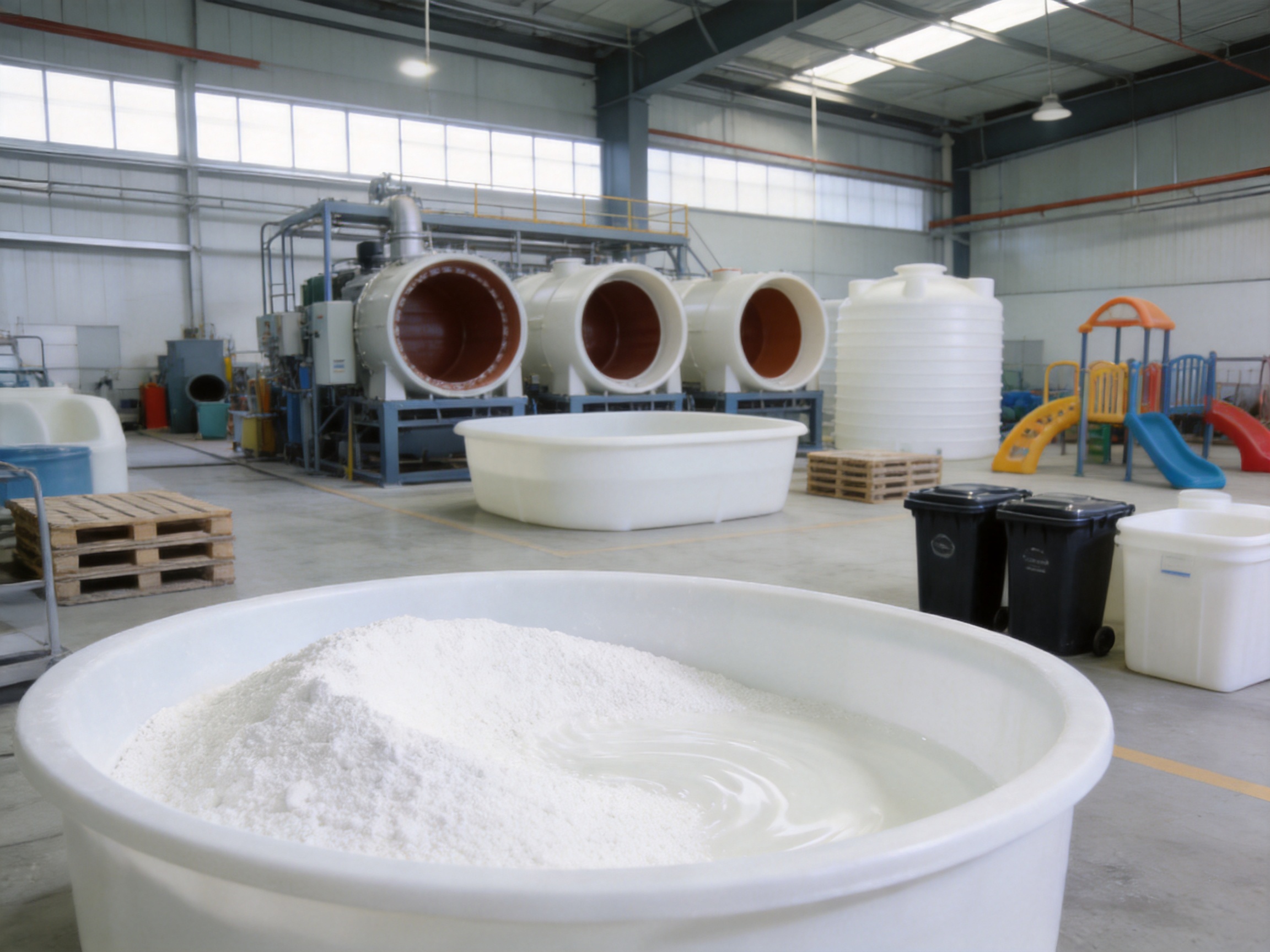

How the Machine Supports Better Rotomolded Products

The connection between pulverizer quality and finished rotomolded products is direct. Uniform powder improves melting behavior inside the mold. Good flowability helps powder distribute evenly over complex shapes, corners, ribs, and textured surfaces. Controlled particle size supports smoother surfaces and more consistent wall thickness. Reduced thermal degradation helps maintain polymer properties, color stability, and product strength.

For large water tanks, uniform wall thickness is critical for structural performance. Thin areas can weaken under water pressure, while excessively thick areas waste material and extend cooling time. For pallets and bins, impact resistance and consistent mechanical strength are important. For playground facilities, appearance, safety, and durability matter. In each case, better powder helps the molding process produce more reliable parts.

Powder quality also affects cycle time. If powder melts predictably, operators can optimize heating and cooling cycles more confidently. Poor powder may require longer heating to ensure complete melting of coarse particles, increasing energy consumption and reducing molding capacity. By producing more uniform powder, the pulverizer indirectly helps improve the efficiency of the entire rotomolding operation.

Customization and Integration into Production Lines

Every factory has different requirements. Some plants focus on virgin PE powder, while others process recycled material. Some require a particular mesh range, while others prioritize maximum output. Some have strict dust-control requirements, limited floor space, special voltage standards, or packaging integration needs. The manufacturer’s experience in customized solutions allows the 800 model to be adapted to practical site conditions.

Customization may include motor power selection, blower configuration, pipe diameter, screening size, dust collector capacity, feeding arrangement, electrical control design, cooling water interface, and line layout. For international customers, the ability to configure the system according to local power supply and safety expectations is important. A pulverizer should not be viewed as an isolated machine but as part of a complete powder production process.

Proper integration also includes upstream and downstream equipment. Upstream preparation may include crushing, granule storage, metal separation, material drying or conditioning, and feeding. Downstream handling may include screening, powder storage, blending, weighing, packaging, or direct supply to molding production. A well-designed line reduces bottlenecks and helps the pulverizer operate at its intended efficiency.

Comparison with Lower-Cost Alternatives

Some buyers compare pulverizers mainly by purchase price. This can be misleading. A lower-cost pulverizer may use less durable blade material, less precise machining, weaker cooling, simpler dust collection, ordinary pipe materials, limited balancing, or less robust electrical controls. It may appear attractive during procurement but become costly during production. The true cost includes electricity, labor, downtime, rejected powder, defective molded products, blade replacement, dust loss, cleaning, and maintenance.

The 800 model is designed for buyers who evaluate total cost of ownership. DC53 blades reduce wear-related quality decline. Precision grinding improves powder consistency. German dynamic balancing supports long mechanical life. Reinforced cooling protects powder flowability. Enclosed dust collection reduces material loss. Stainless-steel pipes improve cleanliness. Inverter control allows process adjustment. These advantages work together to reduce hidden costs.

Competitor machines may also struggle to maintain powder quality at high output. A machine can produce acceptable powder at low feed rates but fail when pushed to industrial capacity. The 800 model is built specifically as a high-capacity flagship machine, making it more suitable for factories that must combine output and quality rather than sacrifice one for the other.

Quality Control Recommendations for Users

To achieve the best results from the 800 model pulverizer, users should establish a powder quality control routine. Important checks include mesh distribution, bulk density, flowability, moisture condition, color consistency, dust content, and visual particle shape. For rotomolding applications, test molding or laboratory analysis can verify whether powder behavior matches product requirements.

Material preparation is also important. Feed material should be clean and suitable for pulverizing. Metal contamination must be avoided because it can damage blades and create safety risks. Oversized feed pieces should be properly crushed before entering the pulverizer. Moisture should be controlled because wet material may reduce flowability and affect screening. For recycled PE, consistent sorting and cleaning are essential.

Operating parameters should be recorded. Feed rate, motor load, temperature, cooling water flow, screen mesh, blade hours, and powder test results should be tracked. This data allows operators to identify trends before problems become severe. For example, if output decreases and motor load increases, blades may be wearing. If powder temperature rises, cooling water flow or airflow may need inspection. If fine dust increases, screen condition or blade gap may require adjustment.

Safety and Environmental Considerations

Industrial pulverizing equipment must be operated with proper safety procedures. Operators should receive training before using the machine. Guards, covers, electrical protections, emergency stops, and interlocks should be maintained. Maintenance should be performed only after proper shutdown and lockout procedures. Because the machine uses high-power motors and rotating discs, careless operation can be dangerous.

Dust control also has safety implications. Although PE dust behavior depends on concentration, particle size, and environmental conditions, factories should avoid dust accumulation and maintain proper housekeeping. The negative-pressure conveying and pulse dust collection system help reduce dust escape, but users should still inspect the dust collector, pipes, seals, and filters regularly. Good ventilation and cleaning practices support safer operation.

Noise control should also be considered. With stable operation and noise levels below 85 dB under suitable conditions, the machine supports a better work environment. However, factories should still measure site-specific noise levels because surrounding equipment, room acoustics, and installation conditions can affect actual exposure. Hearing protection may be required according to local regulations.

Service Support and Long-Term Partnership Value

A pulverizer is a long-life industrial asset, so service support matters. The manufacturer’s 30 years of industry experience and long-term cooperation with more than 5,000 enterprises provide a strong service foundation. Customers benefit from application knowledge, spare parts support, disc refurbishment capability, technical guidance, and customization experience.

Disc refurbishment is especially valuable. Instead of replacing dulled discs immediately, customers may restore cutting performance at a cost significantly lower than purchasing new discs. This reduces operating expense and supports sustainability by extending tooling life. Professional refurbishment also helps maintain correct tooth geometry, which is critical for powder quality. Poorly sharpened discs can cause more problems than they solve, so factory-level grinding capability is an important service advantage.

Long-term partnership also helps customers improve process performance over time. As production demands change, the pulverizing line may need adjustment. New materials, new mesh requirements, higher output targets, or stricter environmental standards may require technical support. A manufacturer with deep experience can help customers adapt rather than replace equipment prematurely.

Q&A Section

Q1: What is the main purpose of the 800 model PE rotomolding pulverizer?

The main purpose is to produce high-uniformity PE powder for rotational molding and related industrial applications. It is designed for large-scale production where output, powder consistency, cooling stability, and dust control are all important.

Q2: What capacity can users expect?

The standard specification lists a typical capacity of 450 to 900 kg/h, depending on material, mesh size, feeding condition, blade condition, and operating setup. In optimized PE rotomolding applications, higher application-dependent output ranges may be possible when material and fineness requirements allow.

Q3: Why is DC53 blade material important?

DC53 high-grade cold-work mold steel provides high hardness, toughness, fatigue resistance, and anti-chipping performance. Compared with conventional blade materials, it can maintain sharpness longer, reduce wear-related quality decline, and lower long-term tooling costs.

Q4: How does the machine improve powder uniformity?

Powder uniformity is supported by precision tooth grinding, accurate blade geometry, dynamic balancing, stable feeding, controlled cooling, and effective screening. These factors help reduce broad particle size distribution and improve flowability.

Q5: How does cooling affect PE powder quality?

Cooling prevents overheating in the grinding chamber. If PE becomes too hot, it may stick, clump, smear, or lose flowability. The water-cooling and airflow systems help maintain stable temperature and protect powder quality during continuous production.

Q6: What makes this machine different from lower-cost pulverizers?

Key differences include DC53 separated blades, precision CNC tooth grinding, German dynamic balancing, reinforced cooling, enclosed negative-pressure conveying, high-efficiency dust collection, stainless-steel pipes, inverter control, and stronger manufacturing quality. These features reduce hidden costs and improve long-term reliability.

Q7: Is the machine suitable for recycled PE material?

Yes, it can be used for re-pulverizing suitable waste PE rotomolding products, provided the material is properly cleaned, sorted, and pre-crushed. Metal contamination and inconsistent feed material should be avoided to protect the blades and maintain powder quality.

Q8: What mesh sizes are supported?

The standard specification lists 10 to 50 mesh. Application-specific requirements should be discussed according to material properties, desired flowability, output expectations, and screening configuration.

Q9: How does dust collection help reduce production cost?

Efficient dust collection captures fine powder that would otherwise be lost into the workshop. This improves material yield, keeps the factory cleaner, reduces cleaning labor, and supports environmental compliance.

Q10: What maintenance practices are recommended?

Users should monitor blade condition, vibration, bearing temperature, cooling water flow, motor load, screen condition, dust collector performance, and powder quality. Scheduled blade refurbishment and preventive maintenance help maintain stable operation and reduce downtime.

Conclusion

The 800 model PE rotomolding pulverizer is designed for manufacturers that need more than basic size reduction. It is a high-capacity powder production system built around uniformity, stability, efficiency, and long-term operating economy. Its 800 mm disc, selectable high-power motor configuration, DC53 separated grinding blades, precision tooth grinding, dynamic balancing, reinforced cooling, stainless-steel conveying, vacuum feeding, vibrating screening, inverter control, and pulse dust collection create a strong platform for large-scale PE powder production.

For rotomolding manufacturers, better powder means better products. It supports smoother surfaces, more uniform wall thickness, improved strength, fewer defects, and more predictable molding cycles. For powder suppliers, it supports professional output, stable batch quality, and competitive production cost. For recycling operations, it provides a route to recover value from suitable PE waste. For large factories, it can reduce labor intensity, improve environmental cleanliness, and lower cost per ton.

The machine’s competitive strength is also rooted in the manufacturer’s production capability. With three decades of experience, multiple workshops, advanced CNC grinding equipment, German dynamic balancing systems, Japanese welding systems, European quality orientation, CE certification, ISO 9001 quality management, and a long history of serving thousands of enterprises, Changzhou Mao Yue Intelligent Equipment Co., Ltd. provides not only a machine but also the manufacturing foundation and service knowledge required for reliable industrial powder production.

In an industry where powder quality determines product quality, the right pulverizer becomes a strategic asset. The 800 model is suited to companies that want to increase throughput while maintaining control, reduce hidden losses, and build a more stable powder supply chain. For large-scale PE rotomolding powder production, it represents a practical combination of capacity, precision, durability, and process intelligence.
