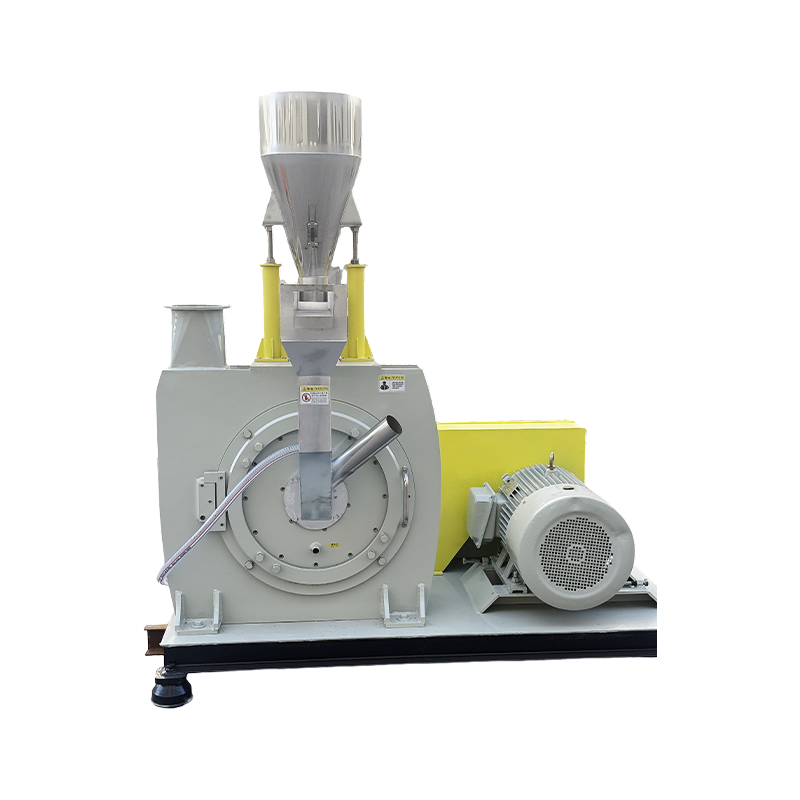

Model 500 Fine Powder Mill for Masterbatch Production

Jun 06, 2026

In modern masterbatch and modified plastics production, powder quality is no longer a secondary detail. It is a decisive factor that influences pigment dispersion, additive distribution, processing stability, extrusion consistency, downstream product appearance, and final material performance. As compounders move toward higher value-added formulations, tighter color tolerances, and more demanding functional applications, the need for a reliable fine powder milling system becomes increasingly important. The Model 500 fine powder mill is designed for this exact production environment: compact enough for flexible installation, powerful enough for industrial output, and precise enough to support demanding masterbatch applications.

This fine powder mill is developed for manufacturers that process polymer masterbatch, modified plastics, functional compounds, recycled plastic materials, and small-batch trial formulations. It is especially suitable for PE-based, PP-based, EVA-based, TPU-based, ABS, PS, PC, and other polymer materials that require controlled particle size and stable powder uniformity. In many production lines, inconsistent powder causes poor dispersion, uneven coloring, fisheyes, black spots, excessive waste, screen blocking, and unstable extrusion pressure. By improving the grinding process, the Model 500 helps producers achieve a more uniform powder foundation before compounding, reprocessing, or molding.

Compared with larger pulverizing systems, the Model 500 offers a practical balance between production capacity, energy consumption, floor space, and operating cost. It is suitable for small and medium-sized masterbatch plants, modified plastics factories, research centers, laboratory pilot lines, and recycling workshops that need professional fine powder output without committing to a large production footprint. Its compact structure, typical installation footprint of approximately 4 to 6 square meters, and total power configuration generally in the range of 35 to 45 kW make it attractive for companies that want industrial-grade performance while maintaining flexible workshop planning.

The machine is also engineered around long-term stability. Fine powder milling is a high-speed, high-friction process. The quality of the grinding disc, the dynamic balance of rotating parts, the temperature control system, the air conveying system, and the dust collection design all determine whether the machine can work continuously without excessive vibration, overheating, powder contamination, or frequent maintenance. The Model 500 addresses these issues through precision-manufactured grinding discs, controlled cooling, negative-pressure conveying, pulse dust collection, and strict manufacturing processes supported by advanced machining and balancing equipment.

Model 500 Fine Powder Mill for Masterbatch Production

Why Fine Powder Quality Matters in Masterbatch Production

Masterbatch production depends on the even distribution of pigments, fillers, flame retardants, conductive additives, antistatic agents, processing aids, and other functional components within a polymer carrier. The quality of this distribution is strongly affected by raw material particle size and particle size distribution. If particles are too coarse or inconsistent, pigment clusters may remain during compounding, resulting in visible color defects or poor mechanical and functional performance. Fine and uniform powder allows materials to mix more thoroughly, melt more evenly, and disperse more effectively during downstream processing.

In color masterbatch applications, uneven powder can lead to color difference, streaks, specks, and black spots. In white masterbatch, poor dispersion can cause opacity variation and surface defects. In carbon black masterbatch, insufficient powder uniformity can create agglomeration, unstable electrical properties, and poor appearance. In flame-retardant or conductive masterbatch, particle consistency can directly affect final product safety and performance. For this reason, a pulverizer used in masterbatch production must be evaluated not only by hourly capacity but also by powder uniformity, fineness adjustability, heat control, and long-term repeatability.

The Model 500 is built to support these requirements. Depending on material characteristics and fineness targets, its output can support stable single-machine production for fine powder applications, while fineness can be adjusted according to process needs. For many polymer materials, the machine can be configured for powder ranges commonly used in masterbatch, modified plastics, rotomolding powder, flooring core powder, and recycling reprocessing. With proper disc selection, cooling, and classification control, it can help producers obtain a narrow particle size distribution and reduce oversize particles that would otherwise return to the process or cause quality issues.

Another important issue is thermal sensitivity. Many polymers used in masterbatch can soften, smear, yellow, oxidize, or stick to the grinding chamber when exposed to excessive frictional heat. PE, PP, EVA, and TPU-based compounds are common examples. If the mill cannot control temperature, the resulting powder may contain melted particles, agglomerates, degraded material, or discoloration. The Model 500 addresses this problem with a water-cooling jacket, forced air cooling, temperature monitoring, and intelligent process control. Stable temperature helps preserve material properties and ensures that the powder remains free-flowing and clean.

Core Positioning of the Model 500 Fine Powder Mill

The Model 500 is positioned as a high-precision polymer pulverizing machine for companies that need reliable fine powder production without the size and energy demand of larger systems. It is particularly useful for masterbatch and modified plastics producers that require high dispersibility, consistent quality, and controllable production cost. The machine can function as a dedicated production unit, a pilot production mill, a supporting machine in a recycling and re-granulation line, or a flexible grinding system for multiple formulations.

Its 500 mm grinding disc diameter provides a strong balance between grinding surface area and machine compactness. Smaller machines may not provide enough output or stability for industrial masterbatch production, while much larger machines may require more space, higher investment, and higher power consumption. The Model 500 fills the gap between laboratory pulverizers and heavy production models by offering professional grinding performance in a manageable footprint.

In real production environments, the value of a fine powder mill is measured by more than its nameplate output. A machine must maintain accuracy after hours of continuous operation, handle formulation changes, reduce downtime during cleaning and maintenance, avoid excessive noise and vibration, and protect workers from airborne dust. The Model 500 addresses these operational concerns through a fully enclosed airflow conveying structure, pulse bag dust collector, vibration control, dynamic balancing, and durable tooling. These features allow the machine to serve as a practical investment rather than a short-term production tool.

The machine is also suitable for companies that are upgrading from general-purpose crushing equipment. Ordinary crushers and coarse pulverizers can reduce material size, but they often cannot deliver the fineness, distribution, or temperature control required for masterbatch powder. The Model 500 is designed specifically for fine polymer powder production, making it a more appropriate solution when the goal is uniformity, repeatability, and better downstream performance.

Key Technical Advantages Over Conventional Pulverizers

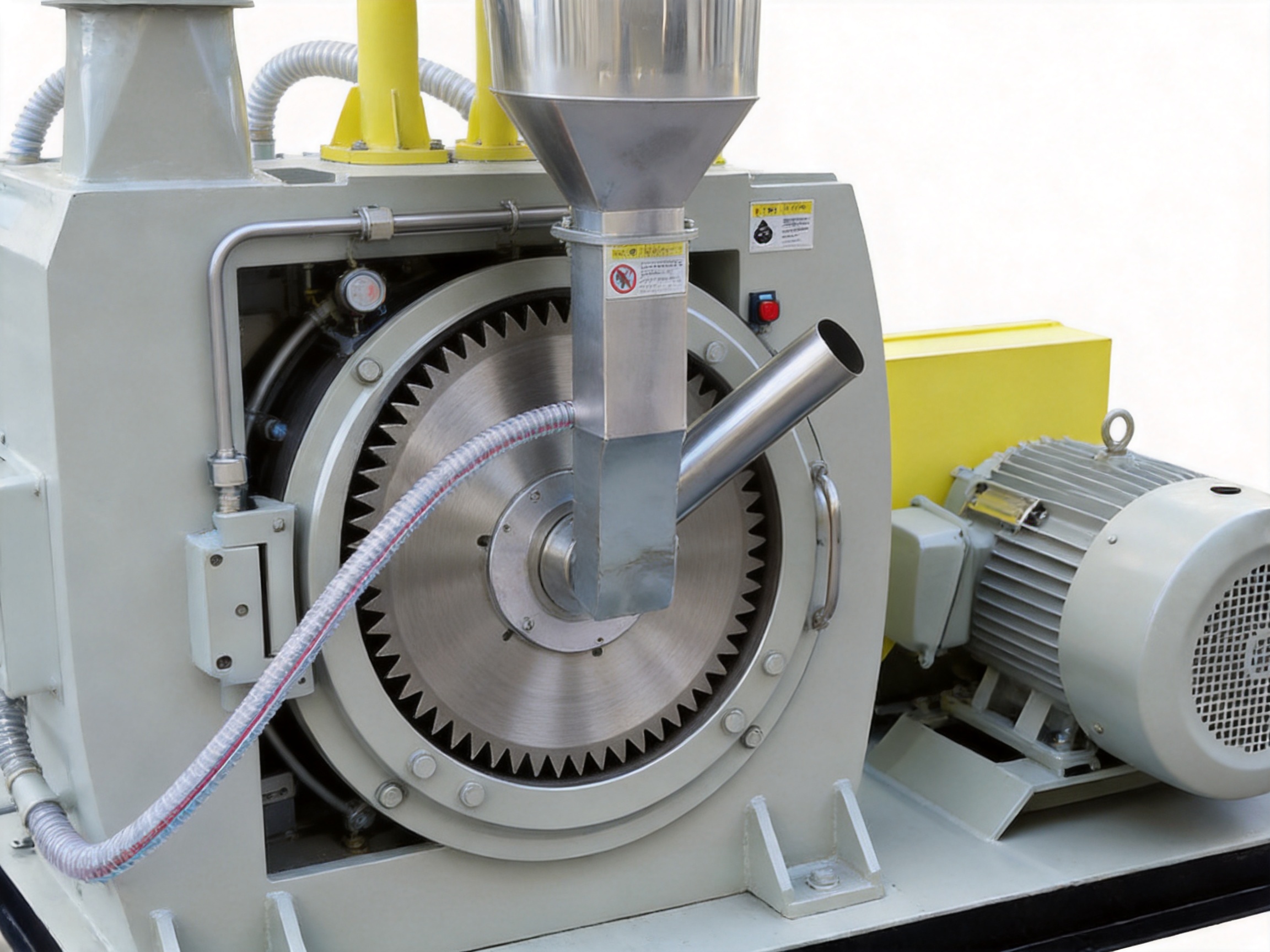

One of the most important advantages of the Model 500 is its grinding disc system. In a disc pulverizer, the grinding disc determines cutting efficiency, particle shape, powder fineness, operating temperature, vibration behavior, and maintenance cost. Low-quality discs may dull quickly, chip under load, generate excess heat, and produce a wide particle size distribution. The Model 500 can be equipped with premium high-grade mold steel grinding discs such as DC53 for demanding masterbatch applications. DC53 offers high hardness, toughness, fatigue resistance, and anti-chipping performance, which can provide longer service life than conventional disc materials under suitable operating conditions.

Compared with common D2 steel discs used in many standard machines, premium DC53 discs can offer better toughness and improved resistance to edge failure. This is significant because masterbatch materials may contain pigments, fillers, reinforcing agents, and functional additives that increase grinding difficulty. A brittle or poorly finished disc may suffer micro-chipping, which reduces powder quality and shortens service intervals. A high-performance disc maintains sharpness longer, helping the mill produce a more stable powder profile over extended production runs.

Another competitive advantage is the precision grinding of each tooth on the disc. The company uses imported Taiwanese professional CNC tool grinding equipment built to high machining standards. Tooth-by-tooth grinding improves blade angle consistency, edge sharpness, and overall disc symmetry. In practical operation, this means that the material is cut and sheared more evenly instead of being crushed randomly. The result is a narrower particle size distribution, reduced oversized particles, improved powder uniformity, and more efficient downstream dispersion.

Many competitor machines rely on discs with inconsistent tooth geometry. Even small differences in cutting angle can produce uneven load distribution, vibration, heat concentration, and unstable powder fineness. The Model 500 is manufactured with attention to micron-level precision in disc finishing, which helps maintain consistent grinding performance. For masterbatch producers, this translates into fewer quality fluctuations, fewer rejected batches, and more predictable formulation results.

Dynamic balancing is another area where the Model 500 demonstrates a clear advantage. High-speed rotating components must be balanced accurately. If balancing is poor, the machine will vibrate, bearings will wear faster, noise will rise, the spindle may experience stress, and powder quality may fluctuate. The company applies German-imported high-precision dynamic balancing equipment to each grinding disc and key rotating assembly. This produces excellent vibration control and supports stable continuous operation.

In practical terms, lower vibration means more than smoother machine operation. It reduces mechanical fatigue, protects bearings and the spindle, lowers maintenance costs, and helps maintain consistent disc clearance. Disc clearance is critical in fine powder milling. If vibration causes unstable clearance, powder fineness becomes inconsistent and temperature may rise. By improving balance, the Model 500 helps sustain precision over long operating periods.

Noise control is also improved by strong dynamic balance and stable mechanical design. The machine is designed to operate at noise levels below 85 dB under suitable conditions, which is important for workshop safety and operator comfort. Many older pulverizers are loud, unstable, and tiring to work around. A lower-noise machine supports a more professional production environment and helps manufacturers meet modern workplace expectations.

Temperature Control for Heat-Sensitive Masterbatch Materials

Fine grinding creates heat. This is unavoidable because polymers are exposed to friction, cutting, impact, and airflow within the grinding chamber. For heat-sensitive plastics, uncontrolled temperature can cause serious production problems. Materials may soften and stick to the discs, the powder may agglomerate, the color may yellow, and additives may lose performance. If the mill overheats, cleaning becomes more difficult, output drops, and rejected material increases.

The Model 500 uses a dual cooling strategy that combines a water-cooling jacket with forced air cooling. The water-cooling jacket removes heat from the grinding chamber structure, while forced air cooling helps carry heat away with the material flow. This combination is more reliable than simple airflow cooling alone, especially when processing materials with low softening temperatures or formulations containing waxes, elastomers, or sensitive additives.

Multi-point temperature sensors and PLC intelligent control can be used to monitor and regulate process temperature. For many masterbatch polymers, maintaining the grinding chamber within a controlled range such as 50 to 70 degrees Celsius is beneficial for preventing sticking, yellowing, and performance degradation. Temperature control also improves powder consistency because material behavior changes when temperature changes. A polymer that grinds cleanly at one temperature may smear or deform at a higher temperature.

Compared with competitor machines that rely only on operator experience or basic cooling pipes, the Model 500 provides a more systematic approach. Intelligent control reduces the chance of overheating during continuous operation, during seasonal workshop temperature changes, or when switching between materials. This is especially useful for manufacturers that process multiple formulations in one workshop and cannot afford long trial-and-error adjustments every time the recipe changes.

Effective temperature control also improves tooling life. Excessive heat can accelerate disc wear, affect hardness performance, and cause material deposits on cutting surfaces. When the grinding zone is kept within a stable temperature range, the disc can cut more cleanly and maintain performance longer. This contributes to lower operating cost and more stable powder quality.

Dust Control, Airflow Conveying, and Workshop Cleanliness

Powder production always creates dust-management challenges. Fine polymer powder can spread through the workshop if not properly contained, causing material loss, cleaning difficulty, worker discomfort, and potential safety issues. In masterbatch production, dust contamination can also cause cross-color contamination, formulation error, and quality complaints. A high-quality pulverizing system must therefore include not only a grinding machine but also an effective conveying and dust collection solution.

The Model 500 is designed with fully enclosed negative-pressure airflow conveying and a pulse bag dust collector system. Negative pressure helps keep powder inside the conveying route instead of escaping through small openings. The pulse dust collector captures fine particles efficiently, with dust capture rates designed to exceed 99.9 percent under suitable operating and maintenance conditions. This greatly improves workshop cleanliness and reduces material loss.

Compared with open discharge systems or simple cyclone collection setups, the enclosed negative-pressure design is far more suitable for modern masterbatch plants. It helps prevent color powder from spreading, reduces cleaning labor, protects operators from inhaling airborne dust, and supports compliance with cleaner production standards. For producers handling carbon black, titanium dioxide, flame retardants, or other fine additives, dust containment is especially important.

The airflow system also influences powder temperature and classification. Proper airflow removes ground powder from the grinding chamber quickly, preventing overgrinding and excessive heat buildup. It also supports stable discharge into the screening and collection system. If airflow is unstable, powder may accumulate inside the chamber, causing temperature spikes, capacity reduction, and inconsistent particle size. The Model 500’s integrated air conveying approach helps stabilize the entire process rather than treating dust collection as an afterthought.

For companies that produce multiple colors or functional formulations, enclosed conveying also reduces cross-contamination risk. Cleaning a powder-contaminated workshop is costly and time-consuming. By capturing dust at the source, the Model 500 helps maintain process discipline and improves batch-to-batch reliability.

Compact Design and Practical Return on Investment

One of the strongest reasons to choose the Model 500 is its balance between performance and investment efficiency. Larger pulverizing systems can deliver higher capacity, but they require greater floor space, higher installation cost, higher energy consumption, and more complex production planning. For many small and medium-sized masterbatch manufacturers, a large mill may be unnecessary or financially inefficient. The Model 500 provides a focused alternative: professional fine powder production with lower space and power requirements.

The machine’s typical footprint of approximately 4 to 6 square meters makes it suitable for existing workshops where space is limited. Its total power demand is generally lower than larger 600 or 800 models, which helps reduce electricity cost. When combined with durable grinding discs, lower maintenance demand, reduced reject rates, and improved production efficiency, the machine can support a practical return on investment period that may fall within 6 to 12 months depending on usage, material value, electricity cost, labor cost, and quality improvement.

Return on investment is not only calculated by output. A fine powder mill can create savings in several ways. It can reduce the need to purchase expensive pre-pulverized materials. It can recycle off-cuts, waste masterbatch, injection waste, and extrusion scraps into reusable powder. It can reduce rejects caused by poor dispersion. It can reduce blade replacement frequency. It can lower energy consumption compared with oversized machines. It can also shorten formula development time by providing predictable trial powder for laboratory and pilot production.

For masterbatch companies that compete on quality, powder uniformity itself becomes a financial advantage. Better powder can improve customer satisfaction, reduce complaints, and support premium product positioning. A machine that produces consistent powder day after day helps stabilize the entire production chain.

Application Areas in Masterbatch and Modified Plastics

The Model 500 is suitable for a wide range of polymer fine powder applications. In standard color masterbatch production, it can process PE, PP, ABS, PS, PC, and other base materials to support uniform pigment and additive dispersion. Fine and consistent powder helps pigments distribute more evenly in the carrier resin, reducing the chance of color difference, specks, fisheyes, and black spots.

In functional masterbatch production, the machine is useful for flame-retardant, antistatic, conductive, reinforced, and specialty additive formulations. These materials often require a narrow particle size distribution because performance depends on even additive distribution. For example, conductive masterbatch may need uniform carbon black or conductive filler dispersion to achieve stable electrical performance. Flame-retardant masterbatch may need consistent powder to ensure uniform protection and processing behavior.

The machine also supports modified plastics production where recycled materials, fillers, fibers, elastomers, and polymer blends must be prepared for compounding. Fine grinding can improve feeding stability and mixing uniformity. For certain formulas, powder form allows better contact between resin and additive, improving final compound consistency.

Recycling and re-granulation are another important application. Waste masterbatch scraps, injection molding waste, extrusion off-cuts, and rejected materials can often be pulverized and reused if they are clean and properly processed. The Model 500 helps convert these materials into reusable powder, reducing raw material cost and improving resource efficiency. For factories with regular production waste, this function can create significant savings.

The machine can also produce powder for rotational molding applications, where uniform powder flow and melt behavior are important. Typical rotomolding powder may fall within ranges such as 30 to 60 mesh depending on material and product requirements. The Model 500 can also support powder preparation for SPC flooring core layers and other plastic powder applications where consistency and controlled particle size are required.

For laboratories and small-batch trial production, the Model 500 provides flexibility. It is compact, adjustable, and suitable for formula validation, sample development, and process testing. Companies developing new masterbatch products need a machine that can produce repeatable powder without requiring large production batches. The Model 500 supports this development cycle and helps shorten the path from laboratory concept to industrial production.

Manufacturing Strength Behind the Machine

The performance of a pulverizer depends heavily on the manufacturing capability of the company that builds it. A fine powder mill is not simply an assembly of motor, housing, and disc. It requires accurate machining, precise disc grinding, stable welding, proper balancing, reliable electrical control, and strict quality inspection. Changzhou Mao Yue Intelligent Equipment Co., Ltd. brings approximately 30 years of experience in plastic crushing and pulverizing equipment, giving it a strong technical foundation for building machines that meet the needs of polymer processing companies.

The company is a source manufacturer focused on plastic pulverizers, pulverizer parts, and crushing and pulverizing lines. Its disc pulverizers are widely used in rotational molding, masterbatch, polymers, PVC, PE, recycling, powder coating, and related plastic size reduction processes. This broad application background is important because different materials behave differently under grinding conditions. Experience across multiple industries helps the engineering team understand how to configure machines for different powder goals.

The factory operates six processing workshops, each averaging approximately 1,400 square meters. This manufacturing scale supports component processing, machine assembly, testing, customization, and after-sales preparation. A company with internal manufacturing capability can control quality more effectively than a trading company or simple assembler. It can inspect raw materials, improve machining precision, manage welding quality, test dynamic balance, and respond more quickly to customization requests.

Advanced manufacturing equipment is one of the company’s key strengths. Taiwan-imported high-precision grinding machines built to German standards are used for disc machining and tooth finishing. German dynamic balancing equipment supports stable high-speed operation. Japanese welding systems contribute to structural reliability and cleaner fabrication quality. These manufacturing investments directly affect the finished machine. Precision equipment enables precision parts, and precision parts enable stable powder production.

The company’s technical team regularly studies advanced machine technologies from countries such as Germany. This approach helps the factory improve design details, component quality, and production processes. European quality standards are reflected in component manufacturing, belt pulley standards, stainless steel pipeline options, cooling arrangements, and machine reliability expectations. The company has also obtained CE mechanical certification and ISO 9001 quality management system certification, supporting product safety and manufacturing quality control.

For customers, these strengths reduce risk. A pulverizer is a long-term production asset. If the machine is poorly manufactured, the user may face vibration, disc damage, bearing failure, dust leakage, unstable fineness, and poor service support. A manufacturer with processing workshops, precision equipment, balancing capability, and quality management systems is better positioned to deliver consistent equipment and long-term technical support.

Grinding Disc Technology and Refurbishment Economy

Grinding discs are consumable precision components, and their cost has a major effect on long-term pulverizer economics. The Model 500’s grinding disc system is designed not only for high performance but also for maintainable cost. Premium disc materials such as DC53 can provide longer service life in demanding applications, while conventional D2 configurations may be available for standard use depending on customer requirements and material conditions. This flexibility allows customers to choose tooling according to budget, abrasiveness, output target, and powder fineness needs.

The company also supports professional refurbishment of dulled discs. This is a significant advantage because disc replacement can be expensive over the life of a pulverizer. Refurbishment can restore cutting performance at a fraction of the cost of new discs, commonly around one-quarter to one-third of new disc cost depending on disc condition and service scope. For factories running continuous production, this can produce substantial savings.

Professional refurbishment is different from simple manual sharpening. Manual grinding can easily damage tooth geometry, create imbalance, and reduce powder consistency. The company uses professional grinding equipment to restore disc tooth angles and cutting edges with precision. After refurbishment, dynamic balancing can be performed again to ensure smooth operation. This service helps maintain powder quality while controlling maintenance expenses.

Competitor machines often lack an integrated disc lifecycle solution. Users may purchase replacement discs frequently or send discs to general machining shops that do not understand pulverizer tooth geometry. This can lead to uneven powder, vibration, and shorter disc life. By combining precision disc manufacturing, professional refurbishment, and dynamic balancing, the Model 500 system provides a stronger long-term value proposition.

Process Stability During Continuous Operation

Many machines perform well during a short demonstration but struggle during continuous industrial operation. The real test of a fine powder mill is whether it can maintain stable capacity, fineness, temperature, and vibration during long production shifts. The Model 500 is designed for reliable 24-hour operation under suitable material, maintenance, and operating conditions. Its mechanical balance, cooling system, dust collection, and tooling durability all contribute to continuous performance.

Continuous operation requires stable feeding. The Model 500 can be configured with vacuum feeding, which reduces manual labor and improves feeding consistency. Stable feed rate helps maintain stable grinding load. If feeding is too fast, the chamber may overload and heat up. If feeding is too slow, output drops and powder quality may vary. Vacuum feeding supports more consistent production and cleaner material handling.

Screening is another important part of the process. A vibrating screen can separate qualified powder from oversize particles, allowing the system to maintain a defined particle size range. The screen motor and diameter are selected according to configuration requirements. Proper screening improves final powder quality and reduces customer complaints related to coarse particles.

Pipeline material also matters. Stainless steel piping helps maintain cleanliness, reduce contamination, and improve durability. Smooth internal surfaces support efficient airflow and easier cleaning. For masterbatch producers handling different colors, cleanable conveying paths are important for reducing contamination between production batches.

Typical Technical Configuration

The following table summarizes a typical Model 500 configuration. Actual specifications may vary according to material, fineness requirement, cooling demand, electrical standard, and customer customization. For high-precision masterbatch applications, upgraded grinding disc material and control options can be selected.

Item	Parameter	Typical Description
1	Machine type	Model 500 fine powder mill
2	Grinding disc diameter	500 mm
3	Capacity range	Commonly configured around 50 to 160 kg per hour for certain materials; higher production may be achieved depending on material, fineness, and system design
4	Fineness range	Typical production range may include 10 to 30 mesh or finer configurations; masterbatch applications can be adjusted according to process requirements
5	Main drive motor	37 kW or 45 kW
6	Speed control	Star-delta start, soft start, or inverter control
7	Belt pulley standard	European standard configuration available
8	Grinding disc material	D2 for standard configuration; premium DC53 option for demanding masterbatch applications
9	Blower motor	5.5 kW or 7.5 kW
10	Pipeline material	Stainless steel configuration available
11	Pipe diameter	159 mm typical configuration
12	Vibrating screen diameter	1000 mm typical configuration
13	Vibrating screen motor	1.1 kW
14	Feeding method	Vacuum feeding
15	Dust collector bag diameter	300 mm typical configuration
16	Cooling method	Water cooling with inlet and outlet, combined with airflow cooling depending on system design

How the Model 500 Compares With Competitor Equipment

When evaluating pulverizers, buyers often compare price first. However, the lowest purchase price rarely means the lowest total cost. A machine with poor disc quality, weak balancing, insufficient cooling, or poor dust collection can create high hidden costs through downtime, rejected powder, frequent disc replacement, high noise, operator fatigue, and difficult cleaning. The Model 500 is designed to compete on lifecycle value rather than only initial cost.

Compared with low-cost pulverizers, the Model 500 offers stronger disc precision, better balancing, more stable temperature control, and cleaner powder collection. These differences directly affect production. A cheaper machine may appear acceptable during initial testing, but after weeks of production it may show unstable fineness, disc wear, bearing problems, or powder leakage. The Model 500’s manufacturing quality helps reduce these risks.

Compared with large industrial pulverizers, the Model 500 offers better flexibility and lower energy demand for small and medium output needs. A large machine may be more suitable for very high-volume single-material production, but it can be inefficient for companies that frequently change formulas or run smaller batches. The Model 500 is easier to integrate into existing workshops and more practical for laboratories, pilot lines, and medium-capacity production.

Compared with general-purpose crushers, the Model 500 provides much finer powder capability and better control. Crushers are mainly designed for size reduction into flakes or granules. They cannot replace a precision pulverizer when the goal is controlled powder for masterbatch dispersion. The Model 500 fills the process gap between coarse crushing and compounding.

Compared with pulverizers that lack professional after-sales tooling support, the Model 500 has the advantage of disc refurbishment and manufacturer-backed parts. Over several years of use, tooling support becomes critical. Customers need reliable access to replacement discs, refurbished discs, technical guidance, and configuration upgrades. A manufacturer with 30 years of industry experience and dedicated processing workshops can provide more reliable support than companies without deep manufacturing capability.

Customization and Production Line Integration

Different factories have different production goals. Some need fine powder for color masterbatch. Others need coarse powder for rotomolding. Some process heat-sensitive materials, while others process abrasive filled compounds. Some require stainless steel contact parts, while others prioritize budget. The Model 500 can be configured according to customer requirements, making it suitable for a wide range of production conditions.

Possible customization areas include grinding disc material, motor power, speed control method, cooling arrangement, feeding system, dust collection capacity, screening mesh, pipeline layout, and electrical control design. Inverter control can provide more flexible speed adjustment for materials that require different cutting conditions. Enhanced cooling can be selected for heat-sensitive compounds. Stainless steel pipelines can support cleanliness and corrosion resistance. Dust collector size can be matched to powder characteristics and workshop requirements.

The machine can also be integrated into a crushing and pulverizing line. In such a line, larger plastic pieces are first reduced by a crusher, then fed into the fine powder mill, screened, collected, and returned or packed. This integrated approach improves efficiency and reduces manual handling. For recycling operations, a complete line can turn production waste into reusable powder or reprocessed material with lower labor intensity.

Because the company produces plastic crushing and pulverizing equipment as a source manufacturer, it can support line-level planning rather than only selling individual machines. This is valuable for customers who need a complete solution, including material feeding, grinding, cooling, screening, dust collection, and discharge.

Quality Control and Certification

Quality control is essential for machinery that operates at high speed and handles fine powder. The Model 500 benefits from a manufacturing system supported by ISO 9001 quality management and CE mechanical certification. These certifications indicate that the company has established processes related to manufacturing consistency, product safety, and quality assurance.

In addition to certifications, practical quality control includes material inspection, machining accuracy checks, welding inspection, assembly verification, dynamic balancing, trial running, and final performance testing. Each step affects the finished machine. For example, even if the motor and disc are powerful, poor welding may cause structural distortion. Even if the disc material is good, poor grinding may reduce cutting efficiency. Even if the dust collector is large, poor sealing may cause powder leakage. Quality must be built into every stage.

The company’s equipment base supports this quality approach. Precision grinding machines ensure accurate disc tooth geometry. Dynamic balancing equipment ensures smooth high-speed rotation. Welding systems improve structural stability. Skilled technicians and accumulated field experience help convert manufacturing capability into practical machine reliability.

For international customers, stable quality control is especially important. Machines may be shipped long distances and installed in different environments. Buyers need confidence that the equipment will arrive with reliable components, clear configuration, and manufacturer support. A factory with long-term export awareness and established quality systems is better suited to serve global users.

Operation and Maintenance Considerations

To obtain the best results from the Model 500, operators should match machine settings to material behavior. Different polymers require different feed rates, disc clearance, cooling intensity, airflow volume, and screen selection. Heat-sensitive materials should be processed with careful temperature monitoring. Abrasive materials may require premium discs and more frequent inspection. Materials with high moisture should be dried or evaluated before grinding to avoid sticking and poor powder flow.

Regular maintenance includes checking disc wear, bearing temperature, belt tension, screen condition, dust collector bags, pipeline cleanliness, cooling water flow, and electrical controls. Because the machine is designed for stable operation, maintenance can be planned rather than reactive when operators follow proper procedures. Preventive inspection helps avoid sudden downtime and protects key components.

Disc clearance and disc sharpness are especially important. If the disc becomes dull, output may drop, heat may increase, and particle size may become wider. Instead of continuing production with poor tooling, users should arrange disc refurbishment or replacement. The availability of professional refurbishment services helps maintain production quality at lower cost.

Dust collector maintenance is also essential. Bag filters should be inspected and cleaned according to operating conditions. Pulse cleaning should function properly. If filter bags become blocked, airflow will decrease, causing lower output, higher temperature, and possible dust leakage. A clean dust collection system supports both powder quality and workplace safety.

Suitable Buyers and Production Scenarios

The Model 500 is suitable for masterbatch manufacturers that need consistent fine powder for color and functional products. It is also suitable for modified plastics factories that process polymer blends, filled materials, or specialty compounds. Recycling companies can use it to recover waste plastic materials in powder form. Rotomolding powder producers can use it for suitable polymer powder ranges. Flooring material producers can use it for powder preparation in specific core layer applications.

Small and medium-sized factories will appreciate the compact design and controlled investment. Large factories may use the Model 500 as a pilot line, backup line, laboratory production unit, or special-material mill. Research and development teams can use it to test new formulas before scaling to larger equipment. Companies that frequently change color or formula may also benefit from a manageable machine size that is easier to clean and adjust.

The machine is particularly attractive for companies that want to reduce dependence on outsourced powder processing. Outsourcing may create delays, inconsistent quality, confidentiality concerns, and higher cost. By installing an in-house fine powder mill, producers gain direct control over powder preparation, formula protection, and production scheduling.

Q&A Section

What materials can the Model 500 fine powder mill process?

The machine is suitable for many polymer materials used in masterbatch and modified plastics, including PE, PP, ABS, PS, PC, EVA, TPU, and related compounds. Actual performance depends on material hardness, softening point, filler content, moisture level, and required fineness.

What is the main advantage of this mill for masterbatch production?

Its main advantage is the ability to produce more uniform polymer powder with controlled fineness, stable temperature, and reliable dust collection. This helps improve pigment and additive dispersion, reduce visible defects, and support consistent downstream compounding.

How does the Model 500 control heat during grinding?

The machine can use a water-cooling jacket and forced air cooling, supported by temperature monitoring and intelligent control. This helps keep the grinding chamber within a suitable temperature range and reduces the risk of sticking, yellowing, or material degradation.

Why is dynamic balancing important?

Dynamic balancing reduces vibration in high-speed rotating parts. Lower vibration protects bearings and the spindle, improves machine stability, reduces noise, and helps maintain consistent disc clearance for better powder quality.

What grinding disc materials are available?

Standard configurations may use D2 steel, while premium masterbatch applications can use upgraded DC53 high-grade mold steel discs. The correct choice depends on the material, abrasiveness, operating schedule, and budget.

Can worn grinding discs be repaired?

Yes. Professional disc refurbishment can restore cutting performance at a significantly lower cost than purchasing new discs. Proper refurbishment should preserve tooth geometry and include balancing to maintain stable operation.

Is the machine suitable for laboratory or pilot production?

Yes. Its compact size, adjustable configuration, and stable performance make it suitable for laboratories, formula development, trial production, and small-batch masterbatch testing.

How does the dust collection system benefit the workshop?

The enclosed negative-pressure conveying system and pulse bag dust collector help capture fine powder, reduce dust emission, protect worker health, prevent material loss, and reduce cross-contamination between batches.

What kind of return on investment can users expect?

Return on investment depends on production volume, material value, electricity cost, labor cost, waste reduction, and quality improvement. In suitable applications, savings from lower reject rates, reduced outsourcing, powder reuse, energy efficiency, and longer disc life can support a short payback period.

Why choose a source manufacturer instead of a trading supplier?

A source manufacturer has stronger control over machining, assembly, quality inspection, customization, spare parts, and technical service. This is especially important for high-speed pulverizers where precision manufacturing directly affects performance.

Conclusion

The Model 500 fine powder mill is a practical and high-value solution for masterbatch, modified plastics, recycling, rotomolding powder, and trial production applications. It combines compact structure, professional grinding capability, temperature control, dust containment, precision tooling, and strong manufacturing support. For producers that need uniform powder, reliable operation, and controlled long-term cost, it offers clear advantages over ordinary crushers, low-cost pulverizers, and oversized systems that are not optimized for flexible production.

Its value lies in the integration of multiple details: precision grinding discs, optional premium DC53 tooling, professional disc refurbishment, German-standard dynamic balancing, dual cooling, enclosed negative-pressure conveying, pulse dust collection, vacuum feeding, stainless steel pipeline options, and intelligent control. Each feature contributes to stable powder quality, lower maintenance demand, safer working conditions, and better production economics.

Behind the machine is a manufacturer with approximately 30 years of experience in plastic crushing and pulverizing equipment, multiple processing workshops, advanced imported machining equipment, German dynamic balancing systems, Japanese welding systems, CE certification, ISO 9001 quality management, and long-term partnerships with thousands of enterprises. This manufacturing foundation strengthens the reliability of the Model 500 and supports customers seeking durable, customized, and efficient pulverizing solutions.

For companies aiming to improve masterbatch dispersion, reduce production waste, recover valuable scrap, develop new formulas, or upgrade powder preparation quality, the Model 500 provides a balanced and dependable path forward. It is not merely a grinding machine; it is a production-quality tool designed to improve powder consistency, reduce operating cost, and support higher standards in polymer processing.
