Model 500 Fine Powder Mill for Masterbatch Production

Modern masterbatch production requires more than simple size reduction. Pigments, additives, polymer carriers, and functional fillers must be dispersed consistently throughout the finished compound. If the powder entering the mixing or extrusion process has a broad particle-size distribution, excessive heat history, or contamination from the grinding chamber, the final masterbatch may show color variation, black specks, fisheyes, weak dispersion, or unstable processing behavior. A precision pulverizer is therefore an essential part of a reliable masterbatch manufacturing line.

The Model 500 fine powder mill is designed for manufacturers that need stable pulverizing performance, controlled particle size, efficient cooling, and practical operating costs in a compact machine. It is suitable for masterbatch producers, modified-plastic manufacturers, recycling operations, laboratories, and small-to-medium production plants. Depending on the polymer, feed condition, target fineness, and complete system configuration, the machine can be arranged for production rates ranging from approximately 50 to 160 kg/h under conventional operating conditions, while specialized configurations and suitable materials may support higher output ranges of approximately 150 to 400 kg/h.

This article explains the machine’s working principles, design advantages, manufacturing quality, cooling and dust-control systems, application range, maintenance requirements, and selection considerations. It also examines why the Model 500 configuration is an attractive alternative to larger pulverizers when space, energy consumption, product quality, and investment return must be balanced carefully.

1. The Role of Fine Pulverizing in Masterbatch Production

Masterbatch is a concentrated mixture of pigments, additives, and polymer carrier resin. During downstream processing, the masterbatch must disperse rapidly and uniformly into a base polymer. The quality of that dispersion depends on several factors, including formulation, mixing energy, residence time, polymer compatibility, pigment properties, moisture content, and the particle-size distribution of the feed material.

Pulverizing reduces polymer chips, scraps, pellets, or other feedstock into a controlled powder. A properly prepared powder offers a larger effective surface area and more uniform contact between the carrier polymer and the pigment or additive. This can improve mixing efficiency and help reduce the risk of poorly dispersed agglomerates.

However, producing fine polymer powder is more demanding than crushing a brittle mineral. Many plastics are heat-sensitive, elastic, or prone to softening. When excessive friction raises the temperature inside the grinding chamber, the material may become sticky. It can adhere to the discs, block the air-conveying system, form irregular particles, or suffer thermal discoloration. Materials such as polyethylene, polypropylene, EVA, TPU, and certain modified polymers require carefully managed grinding conditions.

The Model 500 fine powder mill addresses these challenges through a combination of precision grinding discs, controlled airflow, water cooling, forced air cooling, temperature monitoring, and enclosed dust collection. The result is a system intended to produce stable powder quality without requiring the floor space, installed power, or capital investment associated with a larger pulverizer.

2. Overview of the Model 500 Configuration

The Model 500 is identified primarily by its approximately 500 mm grinding-disc diameter. Its compact format allows it to be installed in small and medium-sized masterbatch plants, pilot facilities, laboratories, recycling workshops, and test lines. The machine can be integrated with vacuum feeding, stainless-steel conveying pipes, an air blower, a vibrating screen, and a pulse bag dust-collection system.

The standard machine specification includes a 37 or 45 kW drive motor, a 5.5 or 7.5 kW blower motor, a 1.1 kW vibrating-screen motor, water cooling, and a stainless-steel conveying system. Speed-control options may include star-delta starting, soft starting, or inverter control. The preferred configuration depends on material characteristics, required output, target fineness, local electrical standards, and the customer’s automation requirements.

In conventional specification references, the Model 500 may be listed with a capacity of approximately 50–160 kg/h and a fineness range of approximately 10–30 mesh. In masterbatch-oriented configurations, the machine can be optimized for finer powder, commonly within a practical range of 20–100 mesh and, with suitable materials and operating conditions, up to approximately 120 mesh or finer. These figures are not universal guarantees because throughput and fineness are influenced by polymer type, feed size, moisture, disc condition, air volume, cooling-water temperature, and the required product distribution.

A technical evaluation before purchase is therefore recommended. A representative sample should be tested to determine the appropriate disc design, motor power, air volume, screen arrangement, cooling capacity, and expected production rate. This approach provides a more reliable result than selecting a machine based only on a nominal model number.

Model 500 Fine Powder Mill for Masterbatch Production

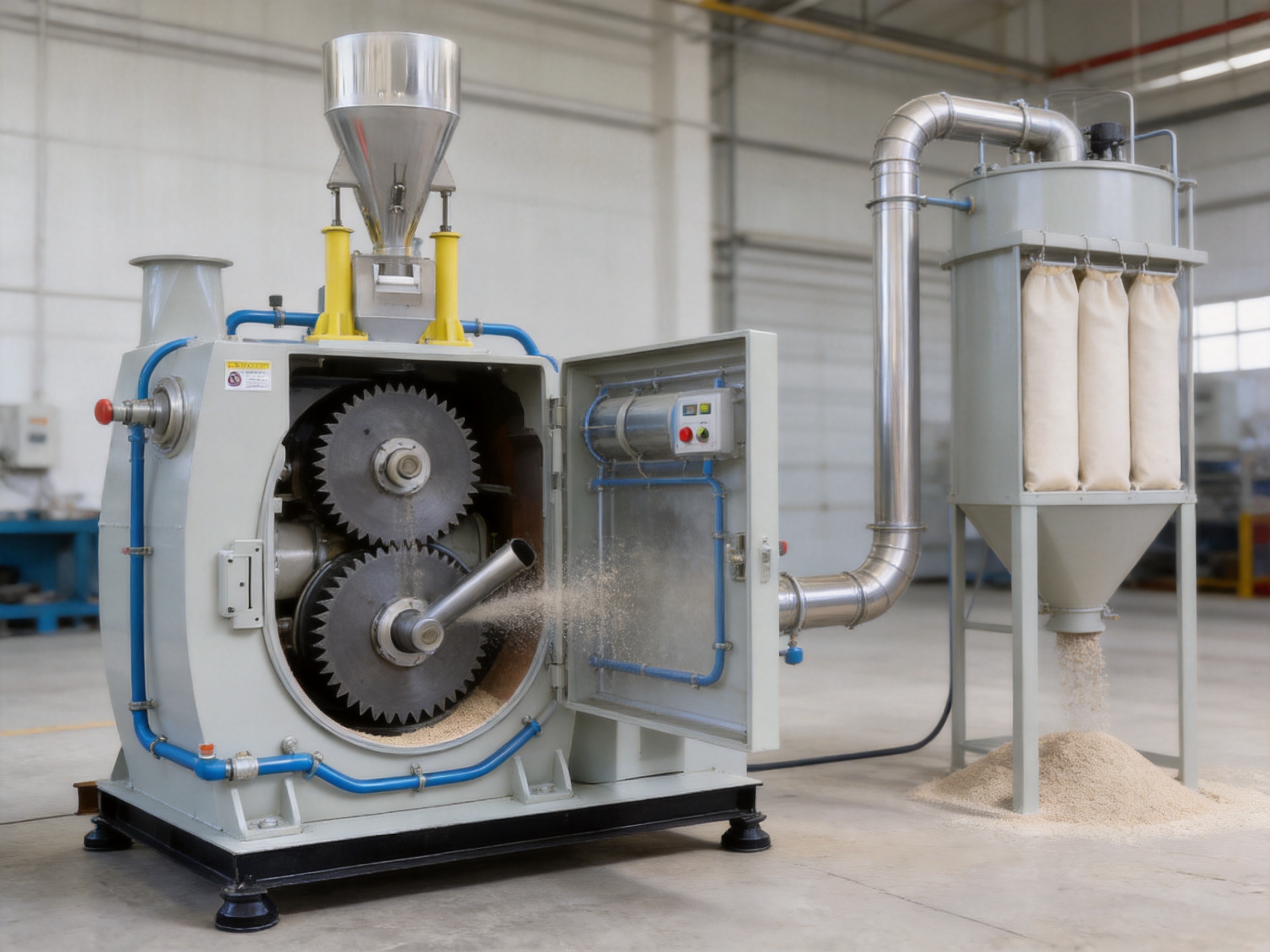

3. Precision Grinding Disc Design

The grinding discs are among the most important components in a plastic pulverizer. Their tooth geometry, hardness, toughness, balance, surface finish, and alignment directly influence capacity, particle-size distribution, power consumption, vibration, and maintenance frequency.

The advanced Model 500 configuration uses DC53 high-grade mold steel for the grinding discs. With a reported hardness of approximately HRC 62–64, DC53 offers a combination of wear resistance and toughness that is advantageous in demanding polymer pulverizing applications. Compared with conventional D2 steel, DC53 is designed to provide improved resistance to chipping and fatigue under repeated mechanical loading.

The practical benefit is not simply a harder disc. Excessive hardness without sufficient toughness may increase the risk of edge chipping, particularly when foreign particles or hard contaminants enter the chamber. A balanced material selection helps the disc maintain a sharp working edge while tolerating the cyclic stresses associated with continuous operation.

For suitable operating conditions, the service life of advanced DC53 discs may be approximately 1.5 to 2.5 times that of standard discs. Actual service life depends on the material being processed, contamination level, feed preparation, operating temperature, disc gap, cleaning practice, and the frequency of adjustment. In some standard equipment configurations, D2 discs remain available as an economical option. Customers should confirm the selected disc material and treatment before ordering.

Tooth-by-Tooth Machining Accuracy

Disc geometry must remain consistent around the entire circumference. If individual teeth have noticeably different angles or heights, some areas of the disc will perform more work than others. This can create uneven wear, unstable current draw, increased vibration, and a wider particle-size distribution.

The manufacturing process uses imported Taiwanese professional CNC tool grinders for tooth-by-tooth precision grinding. This equipment allows the tooth angle, cutting edge, relief geometry, and radial position to be controlled more accurately than ordinary manual or general-purpose grinding methods. Consistent edge geometry supports stable pulverizing performance and helps the machine produce a more uniform powder.

Precision disc machining is particularly valuable for masterbatch production. Pigment and additive dispersion can be affected by oversized particles and agglomerates. A narrow and stable particle-size distribution makes downstream feeding, mixing, and extrusion more predictable. The machine does not replace proper compounding conditions, but it provides a more consistent raw-material preparation stage.

Disc Refurbishment and Lifecycle Cost

Grinding discs are wear components, but replacement is not always the only option. When the disc body remains structurally sound and the wear pattern is within acceptable limits, professional refurbishment can restore the working edges and extend the component’s useful life.

The Model 500 disc-refurbishing service is intended to reduce long-term tooling expenditure. Refurbishment costs may be approximately one-quarter to one-third of the price of a new disc, depending on the extent of wear and the required machining work. Refurbishment should be performed by qualified technicians because incorrect tooth geometry, insufficient balancing, or excessive material removal can affect the performance of the complete pulverizer.

A planned refurbishment program can reduce unplanned downtime. Operators can monitor disc sharpness, motor current, production rate, powder fineness, and vibration. When these indicators begin to change, the disc can be inspected and scheduled for service before product quality is seriously affected.

4. Dynamic Balancing and Low-Vibration Operation

High-speed rotating components must be balanced carefully. Even a relatively small imbalance can create centrifugal forces that increase rapidly with rotational speed. These forces can damage bearings, place stress on the spindle, loosen fasteners, and produce inconsistent grinding conditions.

Each disc is dynamically balanced using high-precision German-imported balancing equipment. Dynamic balancing measures the distribution of mass while the component rotates and identifies the correction required to minimize vibration. This is more effective than relying only on static balancing, which may not detect all rotating-condition defects.

Low vibration provides several advantages. It improves operator comfort, reduces mechanical fatigue, supports longer bearing and spindle life, and helps maintain a stable disc gap. It also makes it easier to identify abnormal conditions such as foreign-object entry, bearing wear, loose components, or disc damage.

The company describes the resulting stability through a “coin-standing” demonstration, in which a coin remains upright while the equipment operates. Although this demonstration is illustrative rather than a formal engineering measurement, it communicates the importance placed on vibration control. The reported operating noise is below 85 dB under stated conditions, although the actual sound level depends on installation layout, blower operation, room acoustics, material feed, and enclosure design.

5. Cooling System for Heat-Sensitive Polymers

Temperature management is central to polymer pulverizing. Friction between the disc surfaces and the material generates heat. If the temperature rises too high, the polymer may soften, smear, agglomerate, discolor, or stick to the grinding chamber. These problems are especially serious when the final powder is intended for a colored masterbatch or a formulation with narrow processing limits.

The Model 500 uses a water-cooling jacket combined with forced air cooling. Water circulates through the cooling jacket to remove heat from the grinding chamber, while the air system transports the pulverized material and contributes to heat removal. The standard cooling arrangement is described as water entering through one connection and leaving through another, allowing continuous heat exchange.

Multi-point temperature sensors and PLC-based control can be used to monitor the grinding chamber and regulate the operating condition. A typical controlled temperature range is approximately 50–70°C, although the suitable target depends on the polymer’s softening behavior, formulation, moisture, and required fineness.

Maintaining a stable temperature can help prevent:

• Softening and adhesion of polymer powder.

• Yellowing or other thermal discoloration.

• Loss of flowability in the conveying system.

• Increased formation of oversized particles and agglomerates.

• Degradation of heat-sensitive additives.

• Unstable motor load caused by material buildup.

Cooling performance depends on more than the presence of a water jacket. The water flow rate, inlet temperature, heat-exchanger capacity, pipe cleanliness, ambient temperature, airflow, and feed rate must all be considered. Operators should monitor both the inlet and outlet water temperatures and verify that the cooling system remains within its design condition.

Processing PE, PP, EVA, and TPU

Polyethylene and polypropylene are common carrier materials in masterbatch production. Their behavior varies according to grade, melt-flow index, filler content, pigment loading, and feed form. EVA and TPU can be more sensitive to heat and may soften or become elastic during grinding. The Model 500’s cooling and airflow systems are intended to provide a more controlled environment for these materials.

Before full-scale production, the operator should test the target polymer using a conservative feed rate. The disc gap, airflow, cooling-water temperature, and feed size can then be adjusted to achieve the required powder quality. A higher feed rate is not always better if it causes temperature rise or an unstable particle distribution.

6. Enclosed Conveying and Dust Collection

Fine polymer powder can become airborne during feeding, grinding, conveying, screening, and discharge. Dust may settle on equipment surfaces, contaminate nearby products, create housekeeping problems, and expose employees to unnecessary airborne particles. In some formulations, pigment or additive dust may also require additional occupational-control measures.

The Model 500 can be equipped with a fully enclosed negative-pressure airflow conveying system and a pulse bag dust collector. The negative-pressure arrangement draws air through the process rather than pushing dusty air into the workshop. This helps contain powder inside the conveying circuit and directs the air stream toward the filtration unit.

The reported dust-capture rate is greater than 99.9% under specified system conditions. The actual performance depends on filter selection, filter condition, air volume, sealing quality, pulse-cleaning settings, powder characteristics, and correct installation. A dust collector must be inspected and maintained regularly to preserve its filtration efficiency.

The use of stainless-steel conveying pipes provides a clean and durable material path. The standard pipe diameter is listed as approximately 159 mm, although final sizing may vary with the blower, material density, conveying distance, and layout. Smooth internal surfaces and properly designed bends can reduce powder accumulation and make cleaning easier.

Vacuum feeding is another practical feature. It can reduce manual handling, improve feed consistency, and connect the pulverizer with upstream storage or pre-processing equipment. Automated feeding also helps stabilize the load on the main motor, which is important when a narrow particle-size distribution is required.

Pulse Cleaning and Filter Maintenance

Pulse bag collectors remove accumulated powder from the filter bags by using short bursts of compressed air. The cleaning cycle must be adjusted to the material and operating rate. Excessive pulse frequency may shorten bag life, while insufficient cleaning may increase pressure drop and reduce airflow.

Operators should inspect filter bags for abrasion, tears, blinding, and chemical attack. Seals, access doors, discharge valves, and duct connections should also be checked for air leakage. A leak on the clean-air side can reduce dust-capture performance, while a leak on the dirty-air side can allow powder to escape into the workshop.

7. Screening and Particle-Size Control

After pulverizing and conveying, the powder may pass through a vibrating screen. Screening removes oversized particles and helps produce a more controlled final product. The standard configuration lists a vibrating screen with an approximate diameter of 1,000 mm and a 1.1 kW motor.

Particle-size requirements differ between applications. Some recycling and rotational-molding processes may require a relatively coarse powder in the 30–60 mesh range. Fine masterbatch applications may require a narrower distribution at 20–100 mesh or a finer result, depending on the carrier and formulation. The screen opening, disc design, airflow, and operating speed should be selected together rather than treated as separate variables.

Mesh size is a useful reference but does not fully describe powder quality. Two powders can pass the same nominal mesh while having different distributions, shapes, bulk densities, and levels of fines. For demanding masterbatch applications, particle-size analysis should be used to confirm the percentage passing the target screen and the amount of oversize or excessive fines.

A stable powder should also have acceptable flowability. Powder that is too fine may increase dust and cohesion, while powder that is too coarse may disperse poorly. The optimum condition is determined by the downstream process and should be verified through mixing and extrusion trials.

8. Application Areas

Color Masterbatch

Color masterbatch production requires consistent pigment distribution and repeatable color strength. The Model 500 can process polymer carriers such as PE, PP, ABS, PS, and PC when the feed preparation and machine configuration are appropriate. Uniform powder supports better contact between the carrier and the pigment during compounding.

A well-controlled powder can help reduce visible color variation, black spots, fisheyes, and undispersed pigment agglomerates. These defects may also be caused by formulation errors, inadequate mixing, contamination, moisture, or extrusion problems, so the pulverizer should be considered one part of the overall quality system.

Functional Masterbatch

Functional masterbatches may contain flame retardants, antistatic agents, conductive additives, reinforcing materials, nucleating agents, processing aids, or other performance modifiers. Many of these formulations require consistent dispersion and controlled particle size. The Model 500 is suitable for preparing polymer feedstock for such applications, subject to material testing and wear evaluation.

Conductive and reinforced compounds may be more abrasive than ordinary carrier polymers. In these cases, disc material, wear monitoring, and dust-collection design become especially important. The use of wear-resistant disc steel and planned refurbishment can help manage operating costs.

Modified Plastics

Manufacturers of modified plastics often work with many grades and relatively short production campaigns. A compact pulverizer provides flexibility for formula changes, trial batches, and specialized orders. The adjustable operating parameters allow the same machine to be evaluated across different polymer systems.

Recycling and Re-Granulation

Production scrap, injection-molding waste, extrusion off-cuts, and rejected masterbatch can often be pulverized for reuse, provided that the material is clean and compatible with the intended formulation. Recycling these materials can reduce raw-material consumption and lower disposal costs.

Feed preparation is essential in recycling applications. Large pieces should be reduced to a suitable size before entering the pulverizer. Foreign metal, stones, excessive moisture, and incompatible polymers should be removed. A magnetic separator, pre-crusher, or screen may be required depending on the waste stream.

Rotational Molding Powder

The Model 500 can also be used to produce relatively uniform rotational-molding powder. Rotomolding applications commonly require controlled powder flow, suitable particle size, and consistent bulk density. The machine can be configured for the required range, including approximately 30–60 mesh where appropriate.

SPC Flooring and Other Polymer Powders

Polymer powder may be used in the core layer of SPC flooring and in other composite or sheet-material processes. The required powder quality depends on the resin system, mineral loading, downstream mixer, and extrusion conditions. A compact pulverizer can support production trials and material-recovery operations without requiring a large industrial footprint.

Laboratory and Pilot Production

Research laboratories and small-batch production lines benefit from the Model 500’s compact structure and adjustable fineness. It can be used for new-formula validation, sample preparation, pilot runs, and process optimization. The same basic machine architecture can provide useful data before a larger production system is selected.

9. Advantages Over Conventional Pulverizer Designs

Compact Footprint

The Model 500 generally requires approximately 4–6 square meters of floor space, depending on the final system layout, dust collector, electrical cabinet, feeding equipment, and service clearance. This is advantageous where plant space is limited or where a dedicated pilot line must be installed without major building modifications.

Lower Installed Power

Compared with larger 600 or 800 models, the Model 500 can reduce installed power and associated electrical infrastructure. A typical complete system may use approximately 35–45 kW for the main drive and related equipment, although the final total depends on the selected motor, blower, screen, feeder, cooling equipment, and control system.

Lower power consumption can reduce operating costs, but energy efficiency should be evaluated against actual output. A smaller machine that processes material steadily may be more economical than a larger machine operating at low utilization. The best comparison is specific energy consumption, expressed as energy used per kilogram of acceptable powder.

Reduced Blade Replacement Expense

Longer-lasting disc materials, precision machining, dynamic balancing, and refurbishment can reduce the frequency and cost of disc replacement. These benefits are particularly important for plants that operate continuously or process abrasive formulations.

Improved Product Consistency

Consistent tooth geometry, controlled temperature, stable airflow, and screening work together to improve particle uniformity. Product consistency can reduce downstream rejects and make color and additive dispersion easier to control.

Flexible Starting and Speed Control

Star-delta starting, soft starting, and inverter control provide different approaches to motor management. Soft starting can reduce mechanical shock and electrical inrush, while inverter control can provide greater flexibility when processing materials with different grinding behavior. The correct choice depends on the plant’s power supply, process requirements, and automation system.

Suitability for Continuous Operation

Low vibration, enclosed conveying, temperature control, and robust components support reliable operation over extended production periods. The machine is intended for demanding use, including continuous or near-continuous operation, provided that operators follow appropriate inspection and maintenance procedures.

10. Manufacturing Process and Factory Strengths

The performance of a pulverizer depends heavily on how its components are manufactured. A machine may have an attractive specification on paper, but poor machining accuracy, inadequate welding, incorrect balancing, or inconsistent assembly can reduce its actual service life. Changzhou Mao Yue Intelligent Equipment Co., Ltd. emphasizes in-house processing capability and specialized manufacturing equipment.

The company operates six processing workshops, each averaging approximately 1,400 square meters. This production structure supports separate processing activities, component preparation, assembly, inspection, and equipment customization. It also provides capacity for handling different machine models and replacement-component requirements.

Precision Machining

Taiwan-imported high-precision grinding machines built to German standards are used for components requiring accurate machining. Precision machining helps ensure correct fits between the spindle, disc, housing, bearings, and mounting surfaces. Proper tolerances reduce runout and support stable alignment.

For grinding discs, specialized CNC tool-grinding equipment is used to control the geometry of individual teeth. This is a critical difference from low-cost manufacturing methods that may rely on less consistent manual finishing.

Dynamic Balancing

German dynamic-balancing equipment is used to verify rotating components. Balancing is performed before final assembly so that vibration-related problems can be addressed at the component level. This approach is preferable to attempting to compensate for imbalance after the complete machine has been installed.

Welding Quality

Japanese welding systems are used in the company’s manufacturing process. Consistent welding can improve the structural integrity and appearance of the frame, hopper, ducting, cooling jacket, and other fabricated parts. Welding quality is also important for maintaining airtightness in negative-pressure conveying and dust-collection systems.

Technical Experience

The company has approximately 30 years of experience in plastic crushing and pulverizing equipment. Its products are used in rotational molding, masterbatch, polymer processing, PVC, PE, recycling, and powder-coating applications. Long-term experience across these sectors helps the engineering team understand the relationship between polymer behavior, disc design, airflow, cooling, and final powder quality.

Quality and Certification

Changzhou Mao Yue Intelligent Equipment Co., Ltd. has obtained CE mechanical certification and ISO 9001 quality management system certification. CE certification supports conformity with applicable European mechanical-safety requirements, while ISO 9001 provides a framework for quality-management procedures. Customers should confirm the exact certification scope and documentation required for their destination market.

The company reports long-term cooperation with more than 5,000 enterprises in domestic and international markets. This installed-equipment experience can be valuable when selecting auxiliary components, planning layouts, troubleshooting material behavior, and arranging replacement parts.

11. Installation and Process Integration

Before installation, the customer should prepare a level foundation with sufficient load-bearing capacity. Adequate clearance must be provided around the pulverizer, electrical cabinet, blower, screen, dust collector, and cooling connections. Maintenance personnel need access to the grinding chamber, disc assembly, filters, bearings, and belt drive.

The electrical supply must match the selected motor voltage, frequency, starting method, and protection requirements. A qualified electrician should verify cable sizing, grounding, overload protection, emergency-stop circuits, and interlocking between the feeder, pulverizer, blower, screen, and dust collector.

The conveying system should be routed to minimize sharp bends and unnecessary vertical rises. Poorly designed ducting can increase pressure loss, reduce conveying efficiency, and create powder accumulation. All joints should be sealed properly so that the negative-pressure system can maintain effective airflow.

Cooling-water lines should include suitable valves, flow indicators, and temperature monitoring. The water quality should be appropriate for the cooling circuit, and the system should be protected against scaling, blockage, freezing, or corrosion where necessary.

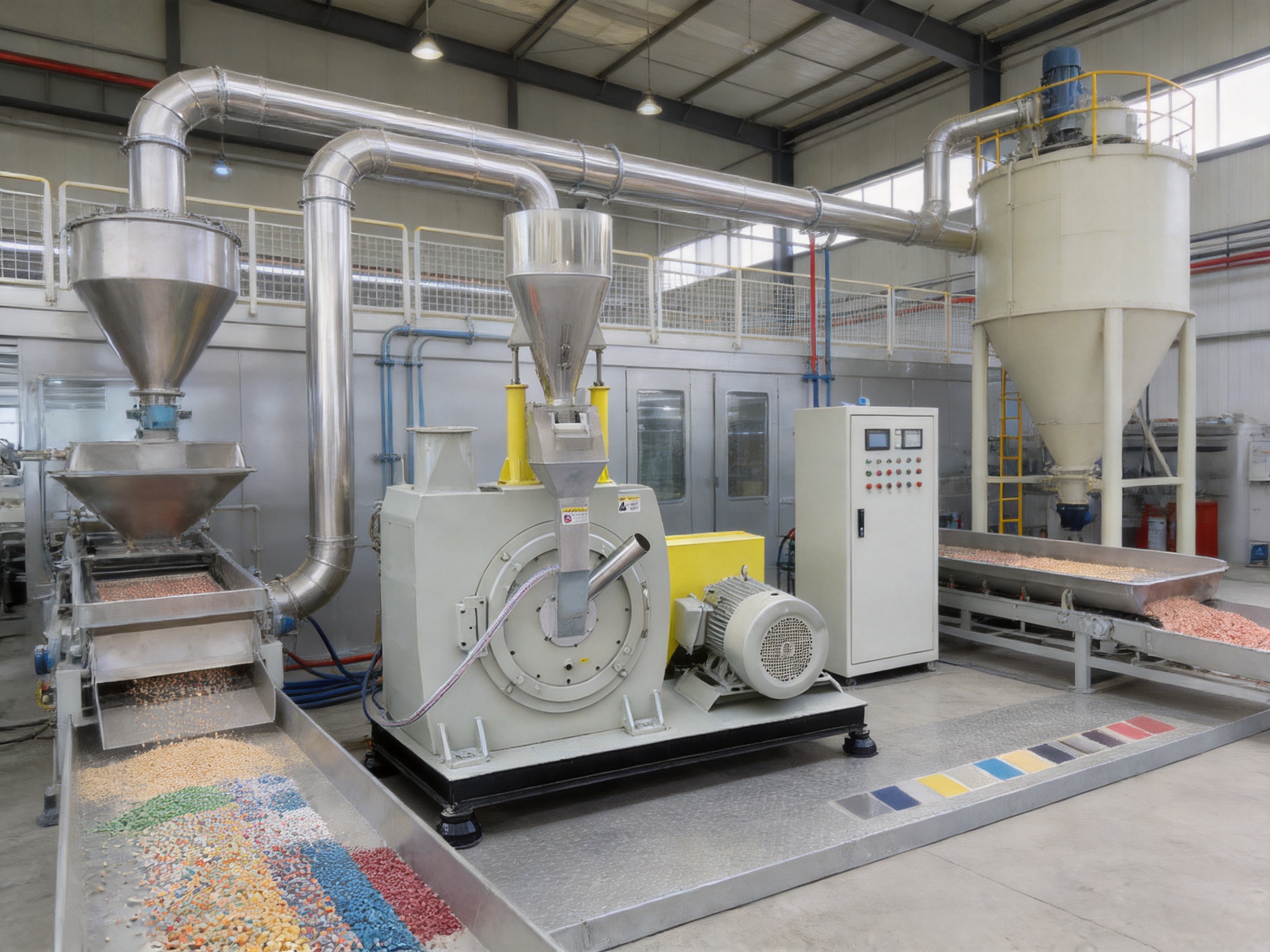

A typical process sequence may include:

1. Preliminary crushing or size reduction of oversized feedstock.

2. Removal of metal, stones, incompatible materials, and excessive moisture.

3. Vacuum feeding into the Model 500 pulverizer.

4. Controlled grinding with water cooling and forced airflow.

5. Pneumatic conveying through stainless-steel pipes.

6. Screening to remove oversized powder.

7. Dust filtration through the pulse bag collector.

8. Collection and packaging of the finished powder.

The exact sequence depends on the customer’s raw material and whether the pulverizer is integrated into a complete crushing and pulverizing line.

12. Operating Procedure

Operators should inspect the machine before starting. The grinding chamber must be free from foreign objects, the disc must be secured correctly, and all guards and access doors must be closed. The cooling-water supply, blower, dust collector, screen, and electrical controls should be checked before material is introduced.

In a typical start-up sequence, the dust collector and conveying blower are started first, followed by the cooling system, screen, and pulverizer. The feeder is then started gradually. This sequence helps establish airflow and cooling before material enters the grinding chamber.

The initial feed rate should be conservative. Motor current, chamber temperature, powder appearance, airflow, and vibration should be monitored. Once stable conditions are confirmed, the feed rate can be increased to the target operating level.

If the temperature rises unexpectedly, the operator should reduce feed rate and confirm water flow and airflow. If the motor current becomes unstable, the system should be checked for feed surges, material buildup, disc wear, foreign objects, or conveying blockage.

At shutdown, the material feed should be stopped first. The pulverizer and blower should continue running long enough to clear remaining powder from the chamber and pipeline. Cooling should continue until the equipment reaches a safe temperature. This reduces the chance of material remaining inside the machine and hardening during a long stoppage.

13. Maintenance Recommendations

Routine maintenance is essential for maintaining output and powder quality. The grinding discs should be inspected for tooth wear, chipping, cracks, and uneven wear. The disc gap should be checked and adjusted according to the material and required fineness.

Bearings should be monitored for abnormal noise, heat, and vibration. Lubrication must follow the manufacturer’s recommendations because both insufficient and excessive lubrication can cause problems. Belts and pulleys should be inspected for tension, alignment, cracking, and wear.

The blower should be checked for impeller accumulation and vibration. A buildup of powder on the impeller can affect balance and reduce airflow. Stainless-steel pipes, elbows, screens, and collection bins should be cleaned at suitable intervals, especially when changing colors or polymer grades.

Filter bags should be checked regularly. A rising pressure difference across the collector may indicate filter blinding, excessive powder loading, inadequate pulse cleaning, or a blocked discharge path. Damaged filter bags must be replaced promptly to maintain dust-control performance.

The PLC, temperature sensors, motor-protection devices, emergency stops, and interlocks should be tested according to a documented schedule. Electrical and control-system inspections are particularly important for plants operating multiple shifts.

14. Selecting the Correct Configuration

A Model 500 pulverizer should be selected according to the material and process rather than capacity alone. The following factors should be evaluated before final confirmation:

• Polymer type and grade.

• Feed size and shape.

• Moisture content.

• Required powder fineness.

• Acceptable particle-size distribution.

• Target production rate.

• Abrasiveness of pigments, fillers, or additives.

• Heat sensitivity and softening temperature.

• Required operating hours per day.

• Local voltage and frequency.

• Available cooling water and compressed air.

• Dust-control and workplace-safety requirements.

• Available floor space and building height.

• Required degree of automation.

Customers should provide representative material samples whenever possible. A test can establish whether the requested fineness and output can be achieved simultaneously. In many cases, a higher fineness requires a lower throughput because the material remains in the grinding zone longer or requires additional classification.

Item	Typical Model 500 Information	Application Consideration
Machine type	Model 500 fine powder mill	Designed for compact masterbatch and polymer powder production
Grinding-disc diameter	Approximately 500 mm	Provides a balance between capacity, footprint, and energy demand
Conventional capacity reference	Approximately 50–160 kg/h	Depends on polymer, feed condition, and fineness
Masterbatch-oriented output range	Approximately 150–400 kg/h under suitable conditions	Requires material testing and optimized system configuration
Typical fineness	Approximately 20–100 mesh	Some materials may reach approximately 120 mesh or finer
Standard mesh reference	Approximately 10–30 mesh	May apply to a different screen or operating configuration
Main drive motor	37/45 kW	Selection depends on material load and required capacity
Blower motor	5.5/7.5 kW	Determines part of the conveying and cooling airflow
Vibrating-screen motor	1.1 kW	Supports separation of oversized particles
Speed control	Star-delta, soft start, or inverter	Choose according to process flexibility and electrical requirements
Disc material options	DC53 advanced configuration or D2 standard reference	Confirm material, hardness, and refurbishment provisions
Cooling method	Water jacket plus forced air cooling	Suitable for controlled processing of heat-sensitive polymers
Pipe material	Stainless steel	Supports clean conveying and easier product changeover
Pipe diameter reference	Approximately 159 mm	Final size depends on airflow and conveying distance
Vibrating-screen diameter	Approximately 1,000 mm	Provides screening area for powder classification
Feeding method	Vacuum feeding	Reduces manual handling and improves feed consistency
Dust-collector bag diameter reference	Approximately 300 mm	Final filter arrangement depends on system design

15. Economic Value and Return on Investment

The economic value of a pulverizer should be measured across its complete operating life. Purchase price is only one part of the calculation. Electricity, replacement discs, maintenance labor, production losses, rejected powder, dust control, and downtime can have a greater effect on total cost.

The Model 500’s compact design can reduce the cost of building preparation, electrical installation, and supporting infrastructure. Its lower installed power compared with larger models may reduce demand charges and electricity consumption. Precision discs can reduce the frequency of replacement, while refurbishment can further lower tooling expenses.

Improved powder consistency may also reduce downstream waste. If poorly pulverized material causes color variation, extrusion defects, or inconsistent dispersion, the resulting losses may be significantly higher than the cost of the pulverizer itself. A stable powder preparation step can improve the predictability of the complete masterbatch process.

A typical projected return-on-investment period may be approximately 6–12 months in suitable applications, particularly where the machine replaces manual rework, reduces scrap, lowers energy consumption, and increases usable output. This period is application-specific and should be calculated using actual local electricity rates, labor costs, production hours, material value, maintenance costs, and expected utilization.

16. Competitive Positioning

Many low-cost pulverizers compete primarily on initial purchase price. They may use conventional disc steel, less precise tooth machining, basic cooling, open conveying, or limited monitoring. Such designs can be adequate for simple materials, but they may create higher lifecycle costs when used for heat-sensitive polymers or demanding masterbatch applications.

The Model 500 is positioned as a precision-oriented alternative. Its competitive advantages include advanced disc material, CNC tooth grinding, professional dynamic balancing, dual cooling, PLC temperature control, enclosed negative-pressure conveying, pulse filtration, and disc refurbishment support.

Compared with a larger machine, it offers a smaller footprint and lower power requirement while retaining the ability to produce fine polymer powder. Compared with a basic small pulverizer, it offers greater emphasis on temperature stability, vibration control, dust containment, component quality, and long-term serviceability.

The most suitable customer is not necessarily the one seeking the highest nominal capacity. It is the customer that values reliable quality, controlled operating conditions, moderate investment, and the ability to process several polymer grades. Masterbatch manufacturers, modified-plastic plants, and recycling operations often benefit from this balance.

17. Safety and Environmental Considerations

Operators must follow site-specific safety procedures when working with rotating equipment, electrical systems, hot surfaces, polymer dust, and compressed air. Guards should never be removed while the machine is operating. Lockout and tagout procedures should be applied before opening the grinding chamber or performing maintenance.

Polymer dust may present respiratory, housekeeping, or combustible-dust concerns depending on its composition and particle size. The dust-collection system should be designed and operated according to the material’s safety data and the regulations applicable at the installation site. Grounding and bonding should be considered to reduce static-electricity risks.

Color pigments, flame retardants, conductive fillers, and other additives may require specific handling procedures. The filtration system should be selected to suit the material, and workers should use appropriate personal protective equipment during cleaning, bag replacement, and maintenance.

Water-cooling systems should be inspected for leaks. Electrical components must be protected from water exposure, and drainage should be arranged to prevent slippery floors or damage to nearby equipment.

18. Why Choose a Specialized Manufacturer

A pulverizer is not simply a motor connected to two discs. Its performance depends on the relationship between mechanical design, material science, airflow, cooling, automation, fabrication, balancing, and service support. A specialized manufacturer can evaluate these factors as a complete system.

Changzhou Mao Yue Intelligent Equipment Co., Ltd. focuses on plastic crushing and pulverizing equipment rather than general-purpose machinery. Its product experience covers masterbatch, polymers, PVC, PE, rotational molding, recycling, and powder-coating applications. This specialization supports more informed recommendations regarding disc materials, feed preparation, fineness, cooling, and auxiliary equipment.

The company’s manufacturing resources include six processing workshops, CNC grinding equipment, German dynamic-balancing equipment, Japanese welding systems, and a technical team familiar with advanced equipment technologies. These capabilities support the production of stable components and customized layouts.

After-sales support is also important. Customers may require installation guidance, process testing, spare discs, refurbished discs, filter bags, electrical assistance, or troubleshooting. A manufacturer with long-term experience can help identify whether a problem is caused by the material, operating parameters, wear components, airflow, cooling, or another part of the production line.

19. Q&A

Q1: What materials can the Model 500 pulverize?

The machine is designed for a wide range of polymers and masterbatch-related materials, including PE, PP, ABS, PS, PC, EVA, TPU, modified plastics, production scraps, injection-molding waste, extrusion off-cuts, and selected recycling materials. Suitability depends on feed size, moisture, softening behavior, contamination, and the required powder fineness. A sample test is recommended for unfamiliar materials.

Q2: What output can the machine achieve?

Published capacity references may range from approximately 50–160 kg/h under conventional conditions to approximately 150–400 kg/h in optimized masterbatch-oriented configurations. Actual output depends on the polymer, feed size, material temperature, disc condition, airflow, cooling performance, screen specification, and target fineness. Capacity should therefore be confirmed through a material trial.

Q3: Can it produce powder finer than 100 mesh?

The machine can be configured for approximately 20–100 mesh and may reach approximately 120 mesh or finer with suitable materials and operating conditions. Very fine powder usually requires lower throughput, careful temperature control, sharp discs, and suitable classification. The final result should be verified through particle-size testing.

Q4: Why are two different capacity and mesh ranges associated with the Model 500?

Different specifications may refer to different configurations, screens, materials, or operating targets. A coarse-powder configuration can provide a different output from a fine-powder masterbatch configuration. Customers should request a final technical specification based on their material and required product rather than relying on a general table alone.

Q5: Is DC53 better than D2 for grinding discs?

DC53 is an advanced option offering high hardness, toughness, fatigue resistance, and anti-chipping performance. It may provide a longer service life than conventional D2 under suitable conditions. D2 remains a practical standard option for some applications. The correct choice depends on material abrasiveness, contamination, operating schedule, budget, and expected refurbishment practice.

Q6: How does the cooling system prevent polymer sticking?

The water-cooling jacket removes heat from the grinding chamber, while forced air cooling assists heat transfer and conveys the powder away from the grinding zone. Temperature sensors and PLC control can help maintain a controlled operating range, commonly around 50–70°C. Operators must still select a suitable feed rate and maintain adequate water and airflow.

Q7: Is the machine suitable for continuous operation?

The Model 500 is designed for reliable extended operation when correctly installed and maintained. Low vibration, dynamic balancing, temperature monitoring, enclosed conveying, and robust components support continuous production. Regular inspection of discs, bearings, belts, filters, cooling lines, and safety devices remains essential.

Q8: Does it require a separate dust collector?

A complete system normally includes or connects to a pulse bag dust collector. The collector is important for containing fine polymer powder and maintaining negative-pressure conveying. The final collector size and filter arrangement depend on airflow, material characteristics, production rate, and local environmental requirements.

Q9: Can the machine process recycled plastic waste?

It can process suitable clean and compatible recycling materials, including masterbatch scraps, injection waste, extrusion off-cuts, and other polymer residues. Oversized pieces should be pre-crushed, and metals, stones, moisture, and incompatible plastics must be removed. Abrasive or contaminated waste may require upgraded wear protection and additional separation equipment.

Q10: What is the approximate floor-space requirement?

The Model 500 pulverizer itself is compact, and a typical complete arrangement may occupy approximately 4–6 square meters. The actual footprint depends on the feeder, blower, vibrating screen, dust collector, electrical cabinet, pipe routing, service clearance, and packaging equipment.

Q11: Can the grinding discs be refurbished?

Yes. When the discs remain structurally suitable, professional refurbishment can restore their working edges. Refurbishment costs may be approximately one-quarter to one-third of the price of new discs, depending on wear and machining requirements. Refurbishment should include accurate tooth grinding and appropriate balancing.

Q12: What information should a customer provide for a quotation?

The customer should provide the polymer type, feed form, approximate feed size, moisture level, desired mesh range, required capacity, operating hours, local electrical conditions, available cooling water, dust-control requirements, and whether the machine will be integrated into an existing line. Material samples are especially valuable for reliable process evaluation.

20. Conclusion

The Model 500 fine powder mill is a compact and technically focused solution for masterbatch, modified-plastic, recycling, rotational-molding, and laboratory applications. Its value comes from the integration of precision disc manufacturing, advanced steel options, dynamic balancing, controlled cooling, enclosed conveying, screening, and dust filtration.

For masterbatch producers, the most important benefits are stable powder quality, controlled heat exposure, narrow particle-size distribution, and reliable operation. For smaller plants, the compact footprint and moderate power requirement provide a practical alternative to oversized equipment. For manufacturers concerned with lifecycle cost, durable discs and refurbishment support can reduce replacement expenses.

Changzhou Mao Yue Intelligent Equipment Co., Ltd. strengthens this product through specialized experience, multiple processing workshops, high-precision grinding technology, dynamic-balancing capability, Japanese welding systems, CE mechanical certification, and ISO 9001 quality management. These manufacturing strengths support the company’s objective of providing stable, efficient, and customized pulverizing solutions for customers in China and international markets.

The final performance of any pulverizer depends on correct configuration and operation. By matching the disc material, motor power, cooling capacity, airflow, screening system, and feeding method to the customer’s polymer and production target, the Model 500 can provide an effective route to consistent fine powder production.

References

1. Changzhou Mao Yue Intelligent Equipment Co., Ltd. Product information for Model 500 polymer masterbatch pulverizers.

2. Changzhou Mao Yue Intelligent Equipment Co., Ltd. Technical information on plastic crushing, pulverizing, cooling, conveying, and dust-collection systems.

3. ISO 9001, Quality Management Systems—Requirements.

4. European machinery-safety principles and CE conformity assessment practices applicable to mechanical equipment.

5. General engineering principles for dynamic balancing of rotating machinery.

6. General polymer-processing guidelines for temperature control, particle-size distribution, dust management, and material recycling.

Product: Model 500 Fine Powder Mill for Masterbatch Production
