Blade-Type Crushing and Pulverizing Production Line for High-Value Plastic Recycling

May 21, 2026

Introduction

Modern plastic recycling is no longer limited to simple size reduction. As recycled polymers are increasingly used in rotational molding, masterbatch production, modified plastics, extrusion, injection molding, sheet production, and flooring applications, the quality of the reclaimed powder directly affects downstream processing stability and final product performance. A production line must therefore do more than break waste into smaller pieces. It must deliver consistent particle size, controlled temperature, low dust leakage, stable conveying, reliable screening, and high automation.

The blade-type crushing and pulverizing production line is designed for this new generation of plastic recycling requirements. It combines heavy-duty blade crushing, precision disc pulverizing, negative-pressure pneumatic conveying, cyclone separation, vibrating screening, and pulse-jet baghouse dust collection into one continuous processing system. The line is especially suitable for medium-hardness and high-impact plastic waste, including PVC, PE, PP, PET, ABS, EVA, plastic pipes, profiles, sheets, barrels, pallets, woven bags, bottle flakes, appliance shells, toy scrap, injection molded waste, and mixed rigid or semi-flexible materials.

Unlike traditional hammer-type crushing systems, which often generate excessive dust, heat, noise, and uncontrolled particle shapes, a blade-type system applies high-speed shearing and cutting. This method produces more uniform granules before pulverizing, reduces unnecessary over-grinding, minimizes material entanglement, and improves feeding stability into the disc mill. The result is a more efficient route from bulky waste plastics to fine powder in the range of 20 to 80 mesh or finer, depending on material characteristics and process configuration.

The production line discussed in this article is supported by a manufacturer with decades of experience in plastic crushing and pulverizing equipment. Its strengths include advanced machining, German-standard dynamic balancing, Taiwan-imported precision grinding technology, Japanese welding systems, strict quality control, CE mechanical certification, ISO 9001 quality management certification, and a long-term focus on customized pulverizing solutions. These manufacturing foundations are essential because the performance of a pulverizing line depends not only on its design concept, but also on the precision, rigidity, balance, and durability of every key component.

Core Concept of the Blade-Type Crushing and Pulverizing Line

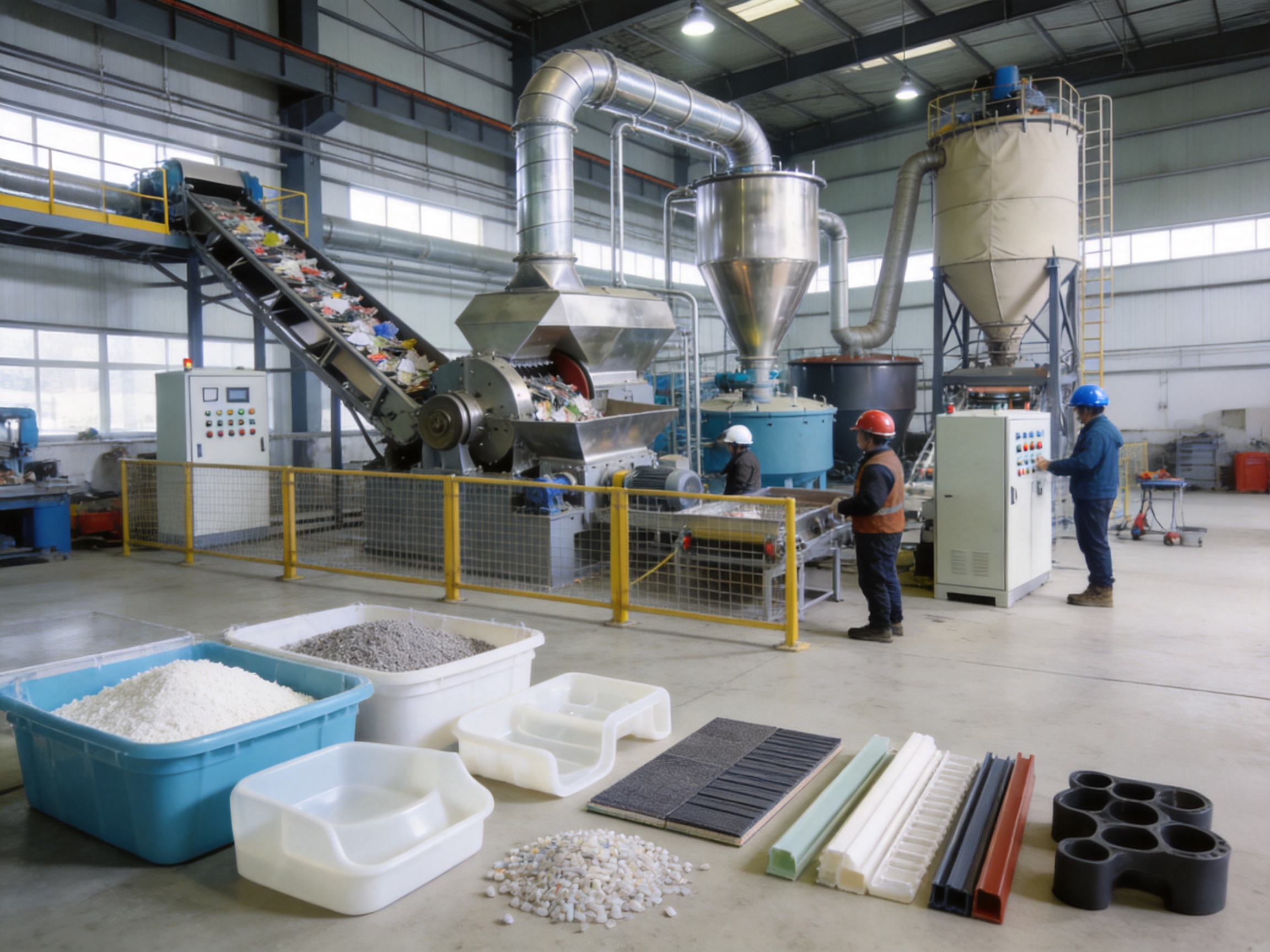

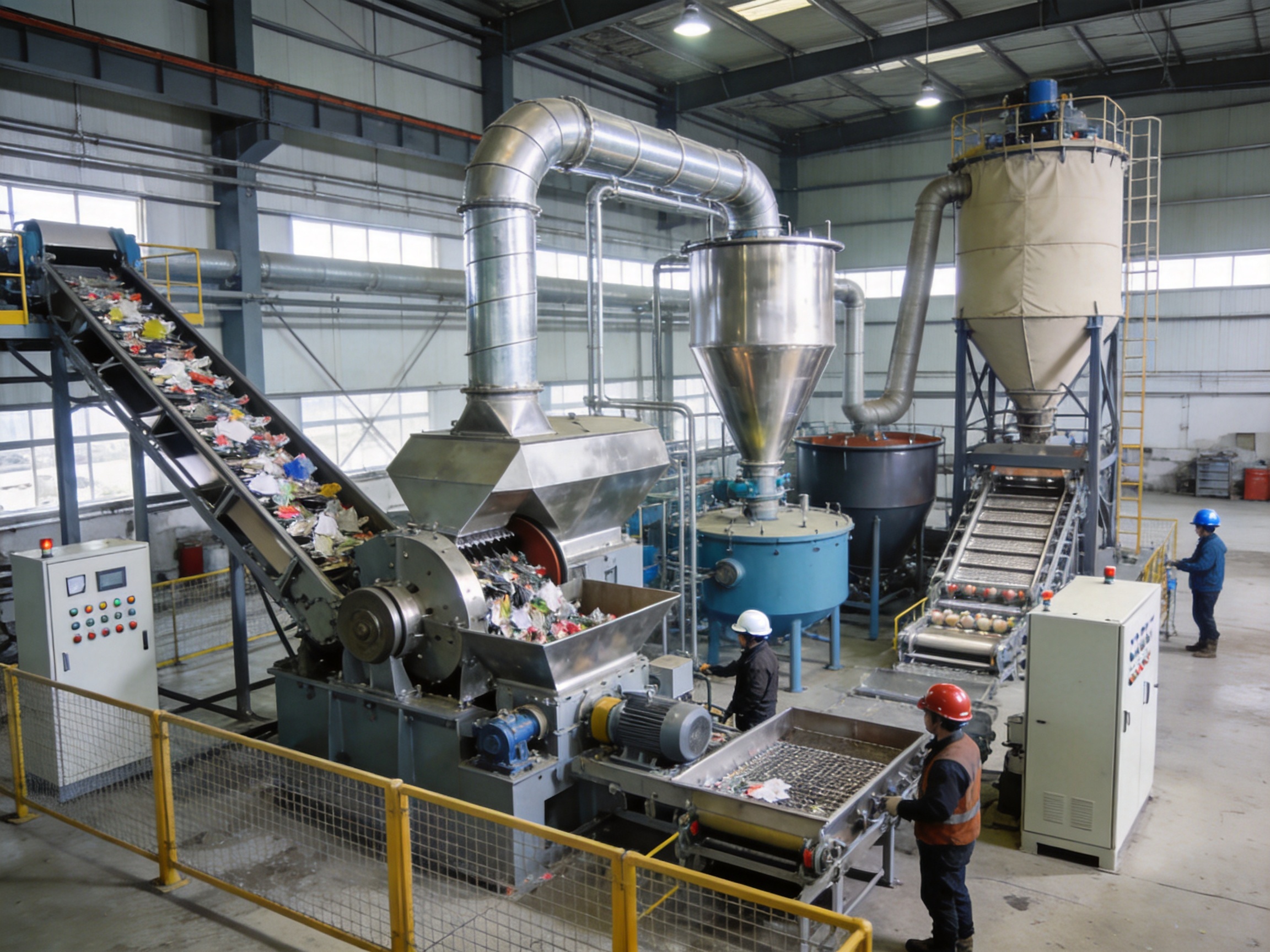

The production line is built around a practical and efficient process flow: feeding, blade crushing, pneumatic transfer, precision pulverizing, cyclone separation, screening, powder collection, and dust filtration. Each stage is designed to support the next one. The front-end blade crusher reduces large waste pieces into controlled small fragments. These fragments then enter a disc pulverizer, available in models such as 500, 600, and 800 series configurations, where they are ground into fine powder. The material is moved by a negative-pressure conveying system, separated by cyclone equipment, classified by vibrating screens, and cleaned through a pulse-jet baghouse dust collector.

This integrated design reduces manual handling and allows continuous operation. Instead of using separate machines with open transfer points, the line uses enclosed conveying and coordinated control. This improves plant cleanliness, reduces material loss, and supports safer production. For plastic recycling plants, especially those processing dusty or heat-sensitive materials, enclosure and automation are major advantages. They reduce the burden on operators and make production more predictable.

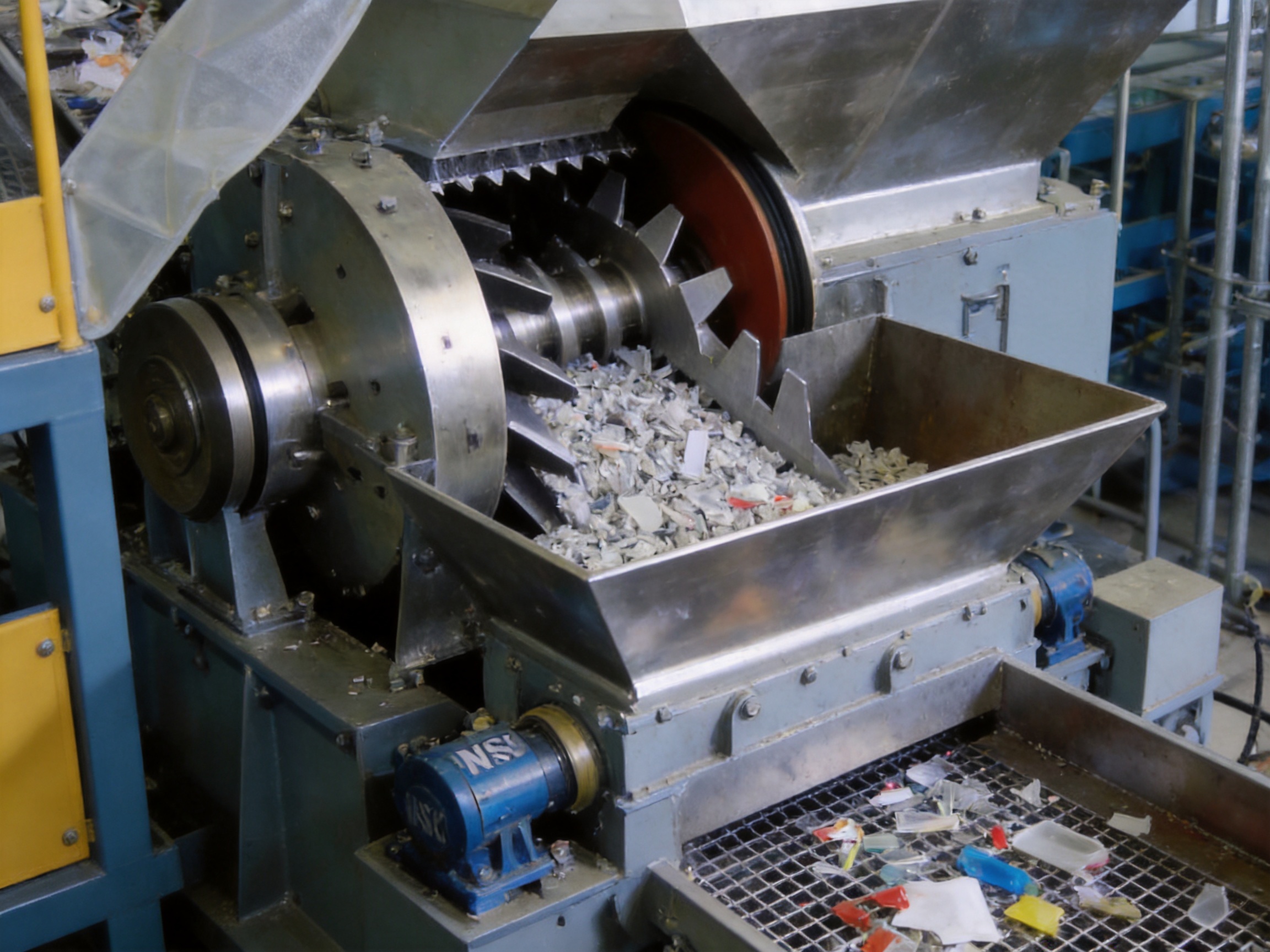

The blade-type crusher is the first critical unit. It uses a multi-blade rotor and fixed knife arrangement to cut plastic waste under high-speed rotation. The purpose is not merely to smash the material, but to create consistent particle sizes that are suitable for stable feeding into the pulverizer. This is especially valuable for rigid plastics, brittle materials, hollow items, and mixed waste forms that may otherwise cause uneven feeding or clogging.

The pulverizing section is the second key unit. The disc mill uses precision grinding discs made from high-grade mold steel, such as DC53 for suitable configurations. The grinding disc geometry, tooth profile, hardness, balance, and machining accuracy strongly influence powder quality. Properly manufactured discs can produce a narrow particle size distribution, high uniformity, smooth powder flow, and reduced agglomeration. These qualities are essential for high-value applications such as color masterbatch, functional masterbatch, modified plastics, rotomolding powder, SPC flooring core powder, and recycled plastic compounds.

Why Blade Cutting Offers an Advantage Over Hammer Crushing

Traditional hammer crushers rely on repeated impact. In many applications, hammer crushing can be useful, but it often has limitations when used as the front-end process for fine plastic pulverizing. Impact-based crushing may create excessive fines, generate heat, increase dust, and produce irregular particles. For plastics that soften, cling, or deform under heat, these problems can lead to poor feeding, screen blockage, motor overload, or frequent shutdowns.

Blade-type cutting works differently. It applies controlled shearing between rotary knives and fixed knives. Instead of repeatedly hitting material until it breaks, the machine cuts it into more predictable fragments. This reduces over-crushing and helps preserve a consistent feedstock shape for the downstream pulverizer. As a result, the disc mill can operate with better load stability, which contributes to improved powder consistency and lower energy waste.

For medium-hardness plastics, blade cutting can be especially effective. Materials such as PVC, PP, PE, PET, ABS, and EVA may react differently under impact, depending on their thickness, temperature, moisture content, and contamination level. A blade system gives the processor more control over the first stage of size reduction. It can handle injection molded scrap, bottles, profiles, sheets, film clumps, electrical casings, pallets, and rigid panels with reduced risk of uncontrolled dust generation.

Another important advantage is reduced entanglement. Some plastic materials, especially film clumps, woven bags, and mixed flexible waste, may wrap around shafts or hammer structures. Blade crushers designed with appropriate knife geometry and rotor configuration can reduce this risk. This improves continuous production and decreases the need for operators to stop the line for cleaning or material removal.

Blade systems also help protect downstream equipment. When a disc pulverizer receives material with a more consistent size, the grinding chamber experiences more stable loading. This reduces sudden torque fluctuations, improves temperature control, and can extend the service life of grinding discs and bearings. In a recycling plant where uptime is a major economic factor, this stability can have a direct effect on profitability.

Integrated Processing from Large Waste to Fine Powder

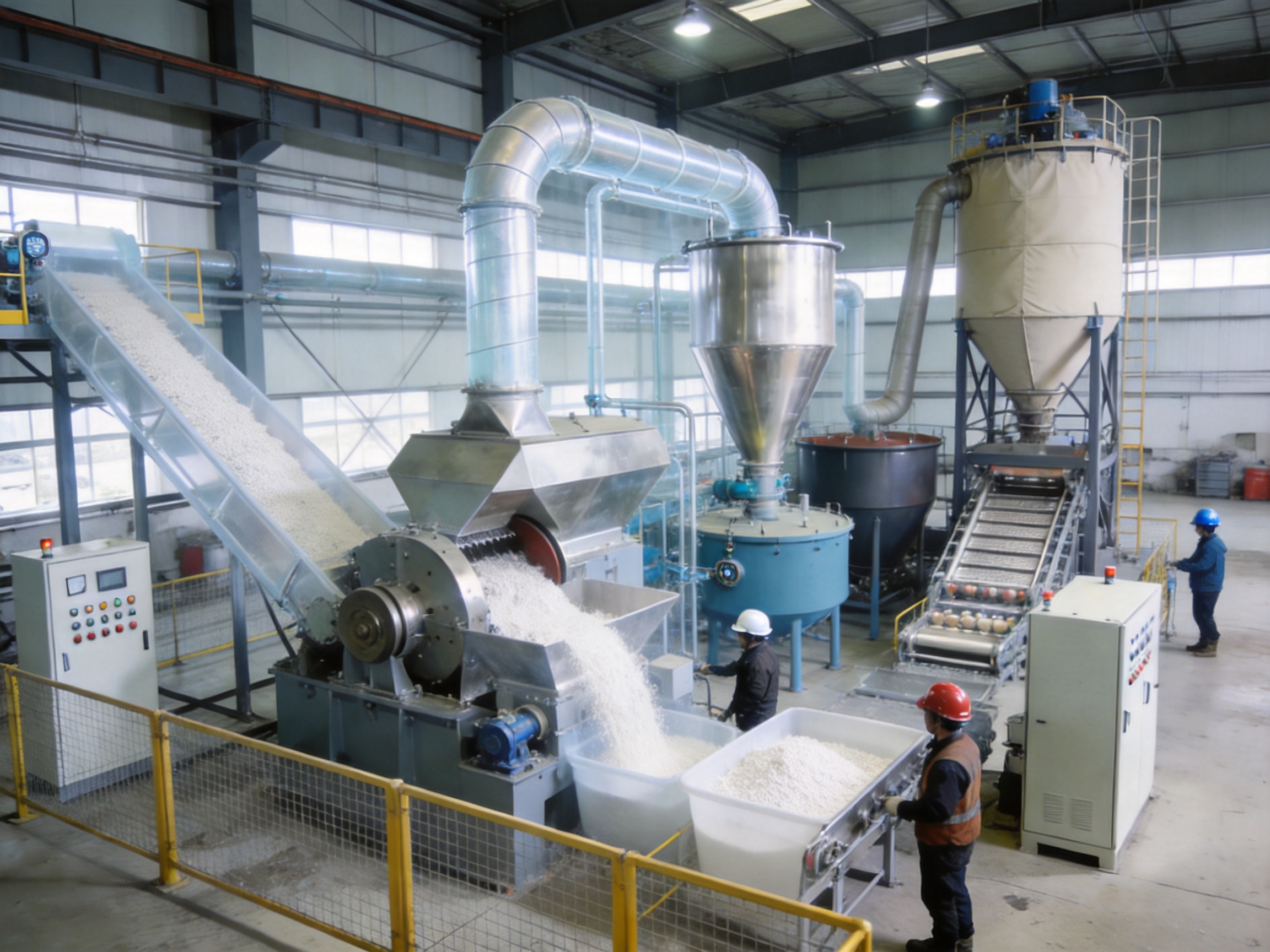

The production line is intended to convert large waste pieces into high-quality fine powder without unnecessary intermediate handling. In a typical process, waste plastic is fed into the blade crusher through a feeding opening sized for the selected model. The crusher cuts the plastic into smaller particles, often controlled by a screen size such as 16 mm. These particles are then conveyed into the pulverizing system.

Inside the pulverizer, material passes through the gap between rotating and stationary grinding discs. The grinding action reduces the material into powder. The final powder size may be adjusted according to the grinding disc design, machine speed, feed rate, material type, and screening configuration. For many recycling applications, powder in the 20 to 80 mesh range is suitable, while finer output may be possible depending on process conditions.

After pulverizing, the powder and air stream move to cyclone separation. Cyclones remove a large portion of powder from the conveying air through centrifugal separation. The powder then enters screening or collection equipment, while fine dust is directed toward the baghouse dust collector. The pulse-jet baghouse periodically cleans filter bags with compressed air pulses, maintaining airflow and dust capture efficiency.

This closed-loop style process provides several operational benefits. It reduces dust leakage, improves raw material utilization, and creates a cleaner workshop. It also helps protect workers from airborne dust exposure. In many modern recycling plants, environmental performance is not optional. Dust control affects regulatory compliance, employee health, equipment cleanliness, fire risk management, and customer confidence.

The automated and modular nature of the line allows it to be configured for different plant layouts. A customer may need a compact system for limited workshop space, or a higher-capacity system for large recycling operations. Modular integration helps adapt the line to the actual material flow, production capacity, and finished powder requirements of each project.

Precision Pulverizing and Powder Quality

Fine powder quality is one of the most important indicators of a pulverizing production line. Downstream processes require powder that flows well, disperses evenly, melts predictably, and blends consistently with additives or virgin resin. Poorly controlled powder may cause uneven melting, poor color dispersion, weak mechanical properties, rough product surfaces, high reject rates, or unstable extrusion and molding behavior.

The disc pulverizing system is designed to deliver a narrow particle size distribution. A narrow distribution means that the powder contains fewer oversized particles and fewer excessive fines. Oversized particles may not melt or disperse properly, while excessive fines can create dust, bridging, poor flow, and inconsistent feeding. Balanced powder distribution supports stable processing and improves final product quality.

Grinding disc quality is central to this result. High-grade mold steel, precision tooth grinding, accurate heat treatment, and dynamic balancing all matter. A grinding disc that is not properly balanced may vibrate, generate noise, shorten bearing life, create inconsistent powder, and reduce machine stability. A disc with inaccurate tooth geometry may grind unevenly or wear quickly. Advanced machining and balancing therefore provide a competitive advantage that directly affects the user’s production results.

The manufacturing process uses Taiwan-imported high-precision grinding equipment built to demanding standards, along with German dynamic balancing equipment. This enables tooth-by-tooth accuracy and stable rotation. In high-speed pulverizing, small errors can become large problems. Precision manufacturing helps reduce vibration, improve powder uniformity, and extend the life of the machine.

For high-value powder applications, the benefits are clear. In color masterbatch production, uniform powder improves pigment dispersion and color consistency. In functional masterbatch applications, powder uniformity helps distribute additives such as flame retardants, fillers, stabilizers, or processing aids. In rotomolding, consistent powder supports even melting and smoother molded surfaces. In SPC flooring core powder production, stable particle size contributes to uniform compounding and product strength.

Temperature Control for Heat-Sensitive Plastics

Many plastics are sensitive to heat during grinding. PVC may yellow or degrade if exposed to excessive temperature. PET and ABS can suffer property changes or surface quality issues. PE and PP may soften, smear, or adhere to machine surfaces if heat is not properly managed. Heat build-up also increases the risk of material sticking to blades or grinding discs, reducing efficiency and requiring more frequent cleaning.

The production line addresses this issue through reinforced cooling and intelligent temperature monitoring. The grinding section can use a dual cooling system to stabilize the grinding chamber temperature, commonly within a controlled range such as 50 to 80°C depending on material and process requirements. Multi-point temperature sensors and PLC-based intelligent control help operators monitor and adjust the process more effectively.

Temperature stability is important because pulverizing is a high-energy process. Friction between plastic particles and grinding discs creates heat. If the feed rate is too high, airflow is insufficient, cooling is weak, or the material has a low softening point, powder quality may deteriorate quickly. An integrated cooling system reduces this risk and allows longer continuous production.

The coarse crushing section may also be configured with air cooling or localized water cooling around the blade area. This is useful when processing materials that generate heat during cutting or when long production runs are required. By keeping the blade area cooler, the system can reduce material adhesion and extend blade life.

Good temperature control is also linked to powder flowability. Overheated plastic powder may partially melt, clump, or agglomerate. Agglomerated powder causes screening difficulties and may not feed evenly into downstream equipment. By stabilizing process temperature, the line helps maintain complete powder properties and smooth flow.

Dust Control and Environmental Performance

Dust is one of the most common challenges in plastic pulverizing. Fine plastic dust can contaminate the workshop, reduce raw material recovery, affect worker health, increase cleaning costs, and create safety concerns. In traditional open systems, dust may escape from transfer points, crusher outlets, screening units, and collection bins. A modern pulverizing line must therefore treat dust control as a core design requirement.

The blade-type crushing and pulverizing line uses fully enclosed negative-pressure pneumatic conveying. Negative pressure means that air tends to move inward at possible leakage points instead of pushing dust outward. This helps prevent powder escape during transfer. Combined with cyclone separation and pulse-jet baghouse filtration, the system can achieve very high dust capture efficiency.

The pulse-jet baghouse is especially important for fine dust. It captures particles that are too small to be separated effectively by the cyclone alone. Filter bags collect dust while cleaned air is discharged according to the system design. Periodic compressed-air pulses remove accumulated dust from the bags, allowing the filtration system to maintain airflow and efficiency.

Strong dust collection does more than improve cleanliness. It also increases material utilization. Powder that escapes as dust is lost product. In high-value recycling, even small losses can accumulate into significant cost over time. Capturing fine powder improves yield and supports better economic performance.

Environmental compliance is another major benefit. As regulations become stricter, recycling plants must demonstrate responsible dust control and safe operation. A sealed, negative-pressure line with efficient filtration helps companies meet modern expectations for clean manufacturing. It also supports a more professional plant image, which can be important when serving international customers or high-end downstream manufacturers.

Applications Across Plastic Recycling Industries

The production line is suitable for a wide range of recycling applications. Its combination of blade crushing, precision grinding, cooling, screening, and dust collection makes it useful for processors handling different plastic forms and polymer types.

Injection Molding and Blow Molding Waste

Injection molding and blow molding plants often generate sprues, runners, rejected parts, bottles, caps, and trimming waste. These materials may be reused internally if they can be processed into a consistent form. The blade-type line can rapidly crush injection molded parts and bottle waste, then pulverize them into fine powder for reuse in molding, compounding, or masterbatch production.

For manufacturers, this reduces raw material procurement costs and improves sustainability. Instead of selling scrap at a low price, factories can convert it into higher-value powder. When powder quality is stable, it can be blended with virgin resin or used in modified material formulations.

PET Bottle Flakes and Sheet Recycling

PET waste, including bottle flakes, sheets, and packaging straps, can be processed into powder for regenerated PET sheets, fibers, injection molded products, or other recycled applications. PET is relatively brittle compared with some polyolefins, so controlled crushing and temperature management are important. Excessive heat or poor cutting can affect powder quality.

The line’s shearing action and cooling capabilities help improve PET processing stability. After crushing, PET particles can be fed into the disc mill for fine grinding. Uniform PET powder supports downstream melting, extrusion, and compounding performance.

ABS and PS Engineering Plastic Recycling

ABS and PS waste often comes from appliance housings, keyboards, monitor shells, toys, and consumer products. These materials can have good recycling value if properly processed. Fine powder may be used in injection molding, modification, composite material production, or blending with other materials.

The blade-type system is well suited for rigid engineering plastic waste. It reduces large shells and panels into uniform granules before pulverizing. Stable powder improves dispersion and can help maintain mechanical performance in recycled products.

PVC Film, Rigid PVC, and Mixed Rigid-Flexible Materials

PVC recycling requires careful temperature control because the material can degrade if overheated. Waste PVC film, flooring offcuts, pipe scrap, profile scrap, and mixed rigid-flexible compounds can be processed for reuse in pipe extrusion, flooring substrates, profile regeneration, and other PVC circular economy applications.

The production line’s temperature monitoring, cooling, and controlled cutting are valuable for PVC. By reducing overheating and adhesion, the system helps preserve material properties and supports stable powder production.

Masterbatch and Functional Masterbatch Recycling

Masterbatch scraps and related production waste often contain pigments, additives, fillers, and polymer carriers. These materials may have high value, but only if they can be processed into uniform powder. Poor grinding may lead to uneven pigment distribution or unstable additive performance.

The precision pulverizing section produces powder suitable for masterbatch remanufacturing or functional masterbatch preparation. Better powder uniformity improves pigment dispersion, additive distribution, and final product consistency. This is a strong advantage for manufacturers that want to recover valuable colored or functional materials rather than downgrade them.

Model Specifications and Technical Parameters

The line can be configured with different crusher models to match capacity requirements. The following table summarizes representative blade crusher configurations used in the crushing section. Actual production performance may vary according to material type, bulk density, moisture content, feed form, screen size, pulverizer model, cooling configuration, and finished powder mesh requirements.

Parameter	Type 665	Type 1200	Type 1500
Knife Quantity	10 rotary knives, 4 fixed knives	15 rotary knives, 6 fixed knives	20 rotary knives, 8 fixed knives
Capacity	400 to 650 kg/h	700 to 1000 kg/h	800 to 1150 kg/h
Screen Mesh Size	16 mm	16 mm	16 mm
Drive Motor	22, 30, 37, or 45 kW	30, 45, or 55 kW	45, 55, or 75 kW
Speed Control	Star-delta or soft start	Star-delta or soft start	Star-delta or soft start
Bearing Standard	Imported NSK bearings	Imported NSK bearings	Imported NSK bearings
Blade Material	9CrSi	9CrSi	9CrSi
Main Rotor Speed	550 r/min	550 r/min	650 r/min
Feeding Size	665 mm	665 mm	665 mm

The availability of multiple motor options allows the system to be matched to different materials and throughput targets. For example, a plant processing lighter or more brittle plastic may not require the highest motor power, while a plant handling thick profiles, dense scrap, or demanding continuous operation may choose a stronger configuration. Soft start or star-delta starting helps reduce electrical impact during startup and supports more stable operation.

Imported bearings, such as NSK bearings, contribute to rotational stability and service life. Bearings are critical in high-speed crushing and pulverizing equipment because they carry dynamic loads and must withstand vibration, dust, temperature variation, and continuous operation. Reliable bearings reduce downtime and maintenance cost.

Blade material is also important. 9CrSi offers hardness and wear resistance suitable for many crushing applications. Proper blade design, heat treatment, installation accuracy, and maintenance planning determine cutting efficiency and service life. For processors, the advantage is not only in the initial cutting performance but also in longer operating intervals between blade maintenance.

Manufacturing Strength Behind Reliable Equipment

The performance of a plastic pulverizing line depends heavily on manufacturing quality. Even a well-designed system can fail to meet expectations if the machine frame is weak, the rotor is not balanced, the grinding disc teeth are inaccurate, or the welding and machining are inconsistent. For this reason, the manufacturer’s production capability is a key part of the value proposition.

Changzhou Mao Yue Intelligent Equipment Co., Ltd. is a source manufacturer with 30 years of experience in plastic crushing and pulverizing equipment. The company has developed its expertise through long-term work in plastic size reduction applications, including rotational molding, masterbatch, polymers, PVC, PE, recycling, and powder coating. This application experience allows the company to understand not only how machines are built, but also how customers use them in real production environments.

The factory operates six processing workshops, each averaging about 1,400 square meters. This production scale supports machining, assembly, inspection, and customized equipment manufacturing. A strong workshop base is important for lead time control, component consistency, and after-sales support. It also allows the manufacturer to build systems rather than only single machines.

Advanced equipment is used in the manufacturing process. Taiwan-imported high-precision grinding machines built to German standards support accurate grinding of critical parts. German dynamic balancing equipment helps ensure rotor and disc stability. Japanese welding systems contribute to structural consistency and frame reliability. These technologies are especially important for high-speed machines, where precision directly affects safety, noise, vibration, powder quality, and long-term durability.

The company’s technical team regularly studies advanced machine technologies from countries such as Germany. This continuous learning supports product improvement and helps integrate international manufacturing practices into equipment design. In an industry where energy efficiency, automation, dust control, and powder quality are increasingly important, ongoing technical development is a significant competitive advantage.

Quality certification further strengthens customer confidence. CE mechanical certification indicates attention to machine safety requirements, while ISO 9001 quality management certification demonstrates a systematic approach to manufacturing control. For international customers, these certifications are valuable because they show that the manufacturer is prepared to meet recognized quality and safety expectations.

Competitive Advantages in Real Production

The blade-type crushing and pulverizing line offers several practical advantages over many conventional recycling systems. These advantages become most visible during continuous production, where small differences in design and manufacturing quality can significantly affect cost, output, and reliability.

Higher Cutting Precision

Blade cutting creates more controlled material fragments than impact crushing. This improves feeding into the pulverizer and reduces the chance of overload caused by irregular large pieces. Better front-end particle consistency contributes to smoother powder production.

Lower Dust Generation

Because the blade crusher cuts rather than violently impacts material, it can reduce unnecessary dust formation during coarse crushing. The enclosed negative-pressure conveying and pulse filtration system further reduce dust leakage. Compared with open or semi-open systems, this helps keep workshops cleaner and improves powder recovery.

Reduced Energy Waste

Stable crushing and feeding reduce sudden load fluctuations. When the pulverizer receives consistent feedstock, it can operate more efficiently. Energy that would otherwise be wasted on over-grinding, reprocessing, clogging, or repeated startups is reduced.

Longer Tool Life

Controlled cutting, appropriate blade materials, cooling options, and stable feeding all contribute to longer blade and grinding disc life. Tool replacement and sharpening are major maintenance costs in size reduction plants. Extending maintenance intervals improves overall production economics.

Better Powder Uniformity

Precision grinding discs and balanced high-speed operation produce a more uniform powder. This is particularly important for applications that require dispersion, flowability, and surface quality. In many downstream processes, powder quality is more valuable than simple throughput.

Improved Environmental Compliance

Dust collection efficiency, enclosed conveying, and clean operation help users meet environmental and workplace safety requirements. This is increasingly important in regions where environmental regulations and occupational health standards are strict.

Shorter Payback Period

When a system reduces downtime, improves powder value, lowers dust loss, decreases maintenance, and saves labor, it can shorten the investment payback period. The economic benefit comes from the combined effect of higher yield, better quality, cleaner production, and improved operational stability.

Automation and Control

Automation is a central feature of an integrated crushing and pulverizing line. A well-designed system reduces manual intervention and allows operators to monitor production through coordinated controls. PLC-based control can connect feeding, crushing, conveying, pulverizing, temperature monitoring, screening, and dust collection into a more stable process.

Automatic control helps maintain consistent production conditions. If temperature rises, the system can alert operators or adjust relevant parameters depending on configuration. If airflow changes, dust collection and conveying conditions can be checked. If feeding becomes unstable, operators can respond before serious blockage occurs. This proactive control improves uptime.

Automation also supports labor reduction. In traditional systems, operators may need to manually transfer materials between machines, clean dust frequently, watch for clogging, and adjust equipment repeatedly. An integrated line reduces these tasks and allows workers to focus on supervision, quality control, and maintenance planning.

For companies expanding production, automation improves scalability. A plant that relies heavily on manual handling may struggle to increase capacity without adding labor. A modular automated line allows higher throughput with better process consistency.

Maintenance Considerations

Every plastic size reduction system requires maintenance, but good design can reduce maintenance frequency and simplify service work. The blade-type line is designed for stable operation, extended maintenance intervals, and easy access to key components where practical.

Blade inspection is important. Operators should monitor cutting performance, particle size consistency, machine noise, vibration, and motor load. Dull blades may increase energy consumption and reduce output quality. Proper blade sharpening or replacement keeps the crusher operating efficiently.

Grinding discs also require attention. Wear can affect powder fineness and distribution. Precision-manufactured discs generally offer better stability and service life, but all grinding components should be inspected according to production hours and material abrasiveness. Materials containing fillers, glass fiber, minerals, or contamination may accelerate wear.

Dust collection maintenance is equally important. Baghouse filters should be inspected for clogging, damage, or leakage. Pulse cleaning systems require proper compressed air pressure and timing. A well-maintained dust collector keeps airflow stable and protects the production environment.

Bearings, belts, pulleys, seals, screens, and conveying pipes should be included in routine maintenance plans. Preventive maintenance is generally less costly than emergency repair. Because the line uses critical high-speed components, operators should pay close attention to vibration and abnormal sound.

How to Select the Right Configuration

Selecting the right production line configuration requires careful evaluation of materials, capacity, powder requirements, and site conditions. The first question is the type of plastic waste. PVC, PET, PE, PP, ABS, EVA, PS, and mixed materials may require different crushing, cooling, and pulverizing settings. Heat-sensitive materials need stronger temperature control, while tough or thick materials may need more powerful crushing.

The second question is throughput. A small recycling operation may require a moderate-capacity system, while a large plant may need higher-capacity models. The selected crusher capacity should match the pulverizer capacity and downstream screening capacity. If one unit is too small, it becomes a bottleneck. If one unit is too large, investment and energy use may be inefficient.

The third question is finished powder size. Producing 20 mesh powder is different from producing 80 mesh powder or finer powder. Finer output generally requires more energy, more precise grinding, stronger cooling, and efficient classification. The customer should define the target mesh range and acceptable particle size distribution before selecting the system.

The fourth question is workshop layout. The line includes crusher, pulverizer, cyclone, screen, dust collector, conveying pipes, control cabinet, and collection equipment. A modular system can be arranged to fit different spaces, but planning is important for maintenance access, material flow, forklift movement, electrical connection, and dust discharge.

The fifth question is environmental expectation. If the plant must meet strict dust control standards, the dust collection system should be properly sized. Negative-pressure conveying and pulse filtration should be configured according to airflow, powder fineness, and production volume.

Finally, customers should consider after-sales service and technical support. A source manufacturer with long-term experience can provide process advice, equipment customization, spare parts support, and troubleshooting guidance. This is especially valuable for customers processing difficult materials or developing new recycled products.

Economic Value for Recycling Plants

The economic value of a blade-type crushing and pulverizing line comes from multiple sources. The most obvious is the conversion of low-value plastic waste into higher-value fine powder. Powder can be reused internally, sold to compounders, supplied to masterbatch producers, or used in specialized applications such as rotomolding and flooring. The higher and more consistent the powder quality, the more market opportunities it can access.

Another value source is raw material cost reduction. Manufacturers that generate their own scrap can recycle it back into production. This reduces dependence on virgin resin and helps stabilize material costs. In industries where resin prices fluctuate, internal recycling provides a strategic advantage.

Labor savings also contribute. An integrated automated line reduces manual transfer and cleaning work. Fewer open handling points mean less dust cleanup and less material spillage. Operators can manage production more efficiently, and the plant can maintain a cleaner working environment.

Energy efficiency matters as well. A system that avoids over-grinding, reduces clogging, and maintains stable feeding uses energy more effectively. While motor power is important, actual energy cost depends on how smoothly the system operates. Stable operation often saves more than a simple comparison of installed power suggests.

Maintenance cost reduction is another benefit. Longer blade life, better bearing stability, precision-balanced rotating components, and reduced vibration all lower the frequency of repairs. Downtime is expensive not only because production stops, but also because workers, upstream material, and downstream orders may be affected.

Finally, environmental compliance has economic value. Cleaner workshops, reduced dust emissions, and safer production help avoid regulatory problems and improve customer trust. Many buyers increasingly prefer suppliers that can demonstrate responsible recycling and manufacturing practices.

Quality Assurance and Long-Term Reliability

Long-term reliability depends on both design and manufacturing discipline. The production line benefits from a manufacturer that emphasizes quality, service, innovation, and customized solutions. With partnerships across thousands of enterprises in domestic and international markets, the manufacturer has accumulated practical knowledge from many operating conditions.

Machine reliability begins with structural strength. Crushing and pulverizing equipment must withstand continuous mechanical stress. Heavy-duty frames, reliable welding, precise machining, and stable assembly reduce deformation and vibration. Japanese welding systems and careful workshop practices contribute to this foundation.

Rotating component reliability is equally important. Rotors, pulleys, and grinding discs must be balanced and aligned. German dynamic balancing equipment helps ensure that high-speed rotation remains stable. Reduced vibration improves bearing life, lowers noise, and protects powder consistency.

Component accuracy affects both performance and safety. Precision grinding machines help create accurate disc tooth profiles and consistent component surfaces. When parts fit properly and rotate smoothly, the machine operates more predictably. This is especially important in pulverizers, where small clearance variations can affect powder fineness.

The company’s focus on customized solutions is valuable because plastic recycling is not a one-size-fits-all industry. Customers process different materials, have different contamination levels, require different powder sizes, and operate under different environmental requirements. A manufacturer with engineering experience can recommend appropriate cooling, conveying, screening, and dust collection options.

Q&A Section

What materials can the blade-type crushing and pulverizing production line process?

It can process many medium-hardness and high-impact plastic materials, including PVC, PE, PP, PET, ABS, EVA, PS, bottle flakes, plastic sheets, profiles, pipes, barrels, pallets, woven bags, injection molded scrap, appliance shells, toy waste, flooring offcuts, and mixed rigid or semi-flexible plastic waste.

What finished powder size can the line produce?

The system is commonly used for producing fine powder in the range of 20 to 80 mesh or finer, depending on the material, pulverizer model, grinding disc configuration, cooling performance, feed rate, and screening setup.

Why is blade crushing better than hammer crushing for many plastic recycling applications?

Blade crushing uses shearing and cutting rather than repeated impact. This produces more uniform coarse particles, reduces dust generation, lowers the risk of over-grinding, decreases material entanglement, and improves feeding stability into the pulverizer. It is especially useful for medium-hardness, brittle, or mixed plastic waste.

How does the line control dust?

The line uses enclosed negative-pressure pneumatic conveying, cyclone separation, vibrating screening, and pulse-jet baghouse dust collection. Negative pressure helps prevent dust leakage, while the baghouse captures fine particles and maintains a cleaner production environment.

Why is temperature control important?

Plastic grinding generates heat through friction. If temperature is not controlled, materials such as PVC, PET, and ABS may yellow, degrade, soften, adhere to machine surfaces, or form agglomerates. Cooling systems and temperature sensors help maintain stable powder quality and continuous operation.

What are the advantages of precision grinding discs?

Precision grinding discs produce a narrower particle size distribution, better powder uniformity, lower vibration, and improved flowability. Accurate disc tooth geometry and dynamic balancing also help extend equipment life and reduce maintenance.

Which industries can benefit from this line?

Industries that can benefit include plastic recycling, rotational molding, masterbatch production, functional masterbatch production, modified plastics, PVC pipe and profile recycling, PET sheet and fiber recycling, ABS engineering plastic recovery, SPC flooring material preparation, powder coating material preparation, and recycled polymer compounding.

How does the production line improve return on investment?

It improves return on investment by increasing powder value, reducing raw material waste, lowering dust loss, decreasing manual labor, improving uptime, extending tool life, reducing energy waste, and helping plants meet environmental requirements.

What manufacturing strengths support the equipment quality?

The manufacturer has 30 years of experience, six processing workshops, high-precision grinding equipment, German dynamic balancing equipment, Japanese welding systems, a professional technical team, CE mechanical certification, and ISO 9001 quality management certification. These strengths support stable machine performance and consistent manufacturing quality.

Can the system be customized?

Yes. The line can be configured according to material type, capacity target, required powder mesh, cooling needs, dust control requirements, workshop layout, and downstream application. Customization is important because different plastics and recycling goals require different process settings.

Conclusion

The blade-type crushing and pulverizing production line represents a practical solution for high-value plastic recycling. By combining heavy-duty blade cutting with precision disc pulverizing, enclosed negative-pressure conveying, efficient separation, screening, and pulse-jet dust collection, it provides a complete route from bulky plastic waste to uniform fine powder.

Its advantages over conventional hammer-based systems are clear. Blade cutting improves coarse particle consistency, reduces dust, lowers entanglement risk, and supports stable pulverizer feeding. Precision grinding discs improve powder uniformity and flowability. Cooling and temperature control protect heat-sensitive plastics. Enclosed conveying and efficient filtration support cleaner, safer, and more environmentally compliant production.

The value of the system is strengthened by advanced manufacturing capability. A manufacturer with decades of experience, large workshop capacity, precision machining equipment, German-standard balancing technology, Japanese welding systems, strict quality management, and international certifications can provide equipment that performs reliably in demanding production environments. For recycling plants, this means not only a machine purchase, but a long-term production asset.

As recycled plastic markets continue to demand higher quality, better consistency, and cleaner production, integrated blade-type crushing and pulverizing systems will play an increasingly important role. Whether processing injection molding waste, PET bottle flakes, ABS shells, PVC offcuts, masterbatch scraps, or mixed plastic materials, this line helps transform waste into valuable powder with strong processing stability and economic potential.
