Model 800 PVC High-Efficiency Energy-Saving Pulverizer for Large-Scale Industrial Powder Production

The Model 800 PVC High-Efficiency Energy-Saving Pulverizer is designed for manufacturers and recyclers that need stable, high-output PVC powder production with reliable fineness control, low energy consumption per kilogram, and long service life under demanding industrial conditions. Positioned for medium-to-large PVC plants, recycling centers, pipe and profile manufacturers, cable recycling enterprises, and modified material producers, this pulverizer provides a balanced combination of capacity, durability, automation, and process stability.

In modern PVC processing, powder quality directly affects extrusion stability, surface finish, foaming uniformity, mechanical strength, material reuse value, and downstream production efficiency. A pulverizer is therefore not only a size-reduction machine; it is a core production asset that determines whether recycled PVC can be converted into high-value raw material. The Model 800 is built to answer this requirement by delivering consistent powder particle size, high throughput, dependable cooling, and reduced operating losses over long production shifts.

Compared with smaller models, the Model 800 offers a major improvement in production capacity and industrial continuity. Compared with many conventional pulverizers in the same class, it emphasizes energy-saving operation, heavy-duty shear performance, wear-resistant grinding components, intelligent temperature management, stable vibration control, and easier integration into large-scale recycling and compounding lines. For enterprises that need to overcome capacity bottlenecks without moving immediately to a more complex oversized system, the Model 800 provides a highly practical upgrade path.

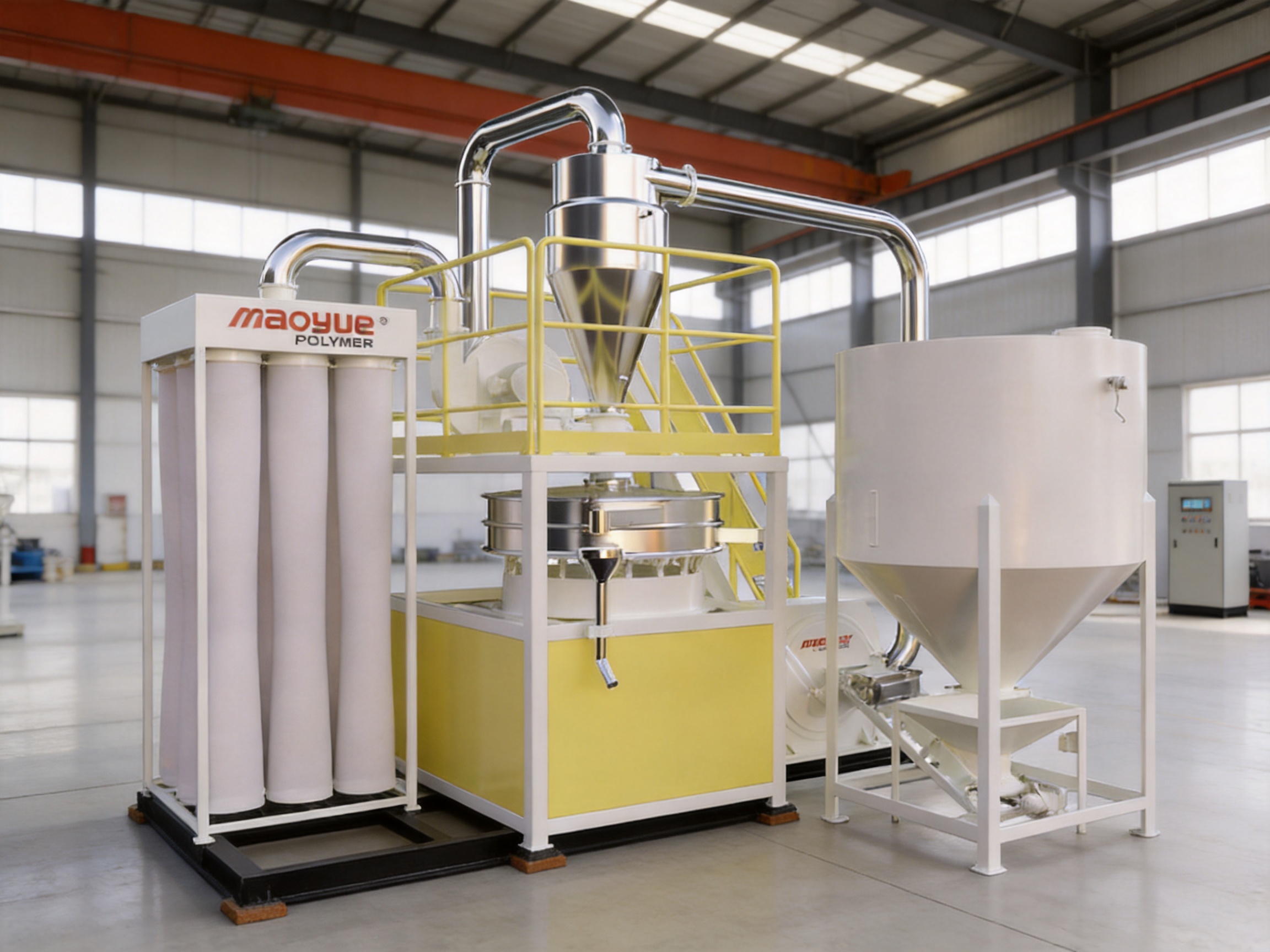

Model 800 PVC High-Efficiency Energy-Saving Pulverizer

Product Positioning and Core Application Value

The Model 800 PVC Pulverizer is developed for high-consistency PVC powder production in applications where daily output, powder stability, and equipment durability are all critical. It is especially suitable for plants targeting daily processing volumes of approximately 15 to 20 tons, depending on raw material type, mesh requirement, feeding condition, operator settings, and line configuration. This makes it a strong solution for enterprises that have already moved beyond small-batch recycling and now require continuous industrial production.

The machine is particularly effective for processing waste PVC pipes, door and window profiles, construction scrap, PVC foam board materials, cable sheath materials, wire scraps, and high-filler PVC compounds. These materials often contain calcium carbonate, stabilizers, impact modifiers, flame retardants, pigments, and other additives that create high abrasion and heat sensitivity during grinding. A standard pulverizer may suffer from rapid disc wear, unstable fineness, temperature rise, powder adhesion, or reduced output when handling such materials. The Model 800 is designed to reduce these risks through a strong mechanical structure, high-wear-resistant alloy discs, controlled airflow, water cooling, and stable feeding.

For recycling enterprises, the value of the Model 800 lies in converting bulky, mixed, or irregular PVC waste into reusable powder with consistent fineness and high downstream usability. For building material manufacturers, it supports closed-loop recycling by transforming production scrap into powder that can be reused in pipe, profile, sheet, board, and panel production. For cable recycling plants, it helps prepare recycled PVC compounds with improved dispersion and more stable processing behavior. For modified material producers, it provides a dependable powder foundation for functional PVC formulations requiring flame retardancy, weather resistance, impact resistance, or chemical corrosion resistance.

Main Technical Advantages

The Model 800 is designed around several key technical objectives: higher output, lower energy consumption per unit of finished powder, stronger wear resistance, safer temperature control, smoother continuous operation, and improved powder consistency. These objectives are especially important in PVC processing because PVC is sensitive to heat and can degrade, discolor, adhere to plates, or produce unstable material properties if the grinding process is poorly controlled.

One of the defining advantages of the Model 800 is its heavy-duty multi-layer shear structure. Instead of relying only on simple impact or friction, the machine uses a disc-based grinding principle that applies intensive shearing and cutting action to reduce material size efficiently. This structure improves the grinding effect while helping control energy waste. In practical terms, more of the motor power is converted into useful size reduction, while less is lost through vibration, excess heat, inefficient circulation, or repeated over-grinding.

The pulverizer is equipped with premium high-wear-resistant alloy grinding discs. These discs are designed for long service life when processing abrasive PVC materials, including high-calcium and high-filler formulations. In many recycling operations, filler content can be high, and ordinary grinding components may wear quickly, causing unstable particle size, reduced output, and frequent downtime. The alloy grinding discs of the Model 800 help extend service intervals, reduce replacement frequency, and improve the total cost of ownership.

Another major advantage is cooling performance. PVC materials are thermally sensitive, so high-capacity pulverizing must be supported by strong heat removal. The Model 800 uses water cooling with inlet and outlet circulation, and it can be configured with high-flow cooling concepts and temperature-assisted control to maintain safer operating temperatures. Effective cooling reduces the risk of powder scorching, agglomeration, plate adhesion, and material degradation. This is essential for producing high-value recycled PVC powder that can be used in demanding downstream applications.

Performance Compared with Conventional Pulverizers

Many conventional pulverizers can produce acceptable powder at low to medium loads, but their weaknesses become obvious when production demand increases. Common problems include unstable feeding, excessive motor load fluctuation, rapid disc wear, poor heat control, uneven powder fineness, dust leakage, high noise, vibration, and frequent maintenance stops. These problems reduce the real production capacity of a plant even when the machine’s nominal capacity appears sufficient.

The Model 800 is designed to maintain efficiency over extended shifts. Industrial-grade vibration damping supports smoother operation, while low-noise fan design helps keep working noise under better control. For factories operating 16 hours or more per day, equipment stability is not a luxury; it is essential for meeting production schedules. Reduced vibration also protects bearings, belts, pulleys, frames, pipelines, screens, and surrounding line components, improving long-term reliability.

Compared with smaller 700-class systems, the Model 800 provides a substantial increase in grinding capacity and a more industrialized structure. This helps plants reduce the number of machines required for a given production target, simplify line management, reduce labor intensity, and improve the consistency of powder from batch to batch. Compared with larger and more complex 850-class systems, the Model 800 can be easier to operate and more suitable for enterprises that require high output but still want manageable maintenance and operation.

For many customers, the most important advantage is the balance between investment and return. The Model 800 represents a medium-to-high equipment investment, but it can deliver favorable long-term ROI by increasing output, reducing downtime, extending wear-part life, lowering energy consumption per kilogram, and improving the market value of recycled powder. In industrial recycling, profitability is often determined by the difference between low-value waste input and high-value powder output. A stable pulverizer makes that value conversion more predictable.

Technical Specification Overview

The following table summarizes a typical Model 800 PVC Pulverizer configuration. Actual specifications may vary according to customer requirements, raw material characteristics, desired mesh size, cooling configuration, electrical standards, dust collection requirements, and production line layout.

Grinding Quality and Powder Characteristics

High-quality PVC powder requires more than simple size reduction. It must have suitable fineness, narrow particle size distribution, good flowability, minimal thermal damage, low impurity level, and consistent behavior in downstream processing. The Model 800 is designed to produce powder suitable for extrusion, calendering, foaming, compounding, and certain injection molding applications when matched with proper raw material preparation and formulation control.

Uniform particle size is important because uneven powder can cause unstable melting, poor mixing, surface defects, weak mechanical properties, and inconsistent product dimensions. In PVC pipe and profile extrusion, powder inconsistency may lead to extrusion pressure fluctuation, die build-up, rough surfaces, or dimensional variation. In foam board production, inconsistent powder can affect cell structure, foaming uniformity, wall thickness, and sheet strength. In cable compound recycling, powder uniformity influences plasticization and electrical performance stability.

The Model 800 supports powder production in the approximate 10 to 50 mesh range. Coarser powder may be suitable for some basic recycling and blending applications, while finer powder is often required for higher-value extrusion, foaming, compounding, and modified material production. The inverter speed control allows operators to adjust operating parameters according to raw material condition and powder target. Combined with appropriate screen selection and line setup, this helps plants respond to multiple product requirements with one flexible machine platform.

Flowability is another important advantage. Powder with good flowability is easier to convey, dose, mix, and feed into downstream equipment. Poorly controlled grinding can produce overheated or partially fused particles that bridge in hoppers, clog conveying lines, or cause unstable feeding. The cooling system and shear design of the Model 800 help reduce agglomeration and improve the usability of the final powder.

Energy-Saving Design and Operating Economy

Energy consumption is one of the largest operating costs in pulverizing. A pulverizer that appears less expensive at the purchase stage may become costly if it consumes excessive power, requires frequent disc replacement, produces unstable powder, or cannot maintain rated capacity under real production conditions. The Model 800 addresses operating economy by combining high throughput with efficient grinding action and stable mechanical transmission.

The heavy-duty shear structure improves the efficiency of material size reduction. When the grinding chamber, discs, feeding, airflow, and screening system are well matched, materials can be processed with fewer unnecessary cycles. This improves actual output and reduces energy consumption per unit of qualified powder. For plants processing thousands of kilograms per day, even modest energy savings per ton can create meaningful annual cost reductions.

Inverter speed control further improves operational flexibility. Different PVC materials behave differently during pulverizing. Rigid pipe scrap, window profile material, foamed sheet scrap, cable sheath, and high-calcium compounds may require different speeds and feeding rates. Inverter control allows operators to tune the process rather than forcing every material through the same fixed operating condition. This can reduce overload, limit unnecessary heat generation, and improve powder quality.

Wear-part economy is also central to ROI. Grinding discs are critical consumables in a PVC pulverizer. If disc wear is rapid, production cost increases not only through replacement expense but also through downtime, labor, and inconsistent powder quality as discs lose sharpness. The high-chromium alloy disc system of the Model 800 is intended to extend service life under abrasive conditions, helping enterprises reduce total production cost and improve line availability.

Cooling and Temperature Management for PVC Safety

PVC is more heat-sensitive than many other polymers. During grinding, mechanical energy is converted into heat. If this heat is not removed efficiently, the material may soften, smear, adhere to grinding surfaces, discolor, or degrade. Degradation may reduce product value and can create processing odor or instability. Therefore, cooling is one of the most important design features of a PVC pulverizer.

The Model 800 uses water cooling with inlet and outlet circulation to remove heat from critical grinding areas. In high-output configurations, dual-loop high-flow cooling and temperature-assisted control can help maintain more stable thermal conditions. This is especially valuable when processing high-filler PVC or operating continuously for long shifts. Stable temperature control helps protect powder whiteness, melt behavior, particle shape, and downstream processing reliability.

Temperature stability also helps reduce plate adhesion. When PVC begins to soften due to excessive heat, it may stick to the grinding plates or create deposits that reduce grinding efficiency. This can lead to rapid capacity decline, uneven powder, increased vibration, and emergency cleaning stops. By improving cooling and controlling operating conditions, the Model 800 helps maintain cleaner grinding surfaces and more consistent output.

For plants producing premium recycled powder, thermal control is directly related to product grade. Powder that has been scorched or overheated may be unsuitable for high-end profiles, foam sheets, cable compounds, or modified materials. The Model 800’s cooling approach helps preserve material value and supports applications where stable color, performance, and processing behavior are required.

Industrial Structure, Vibration Damping, and Noise Control

Large pulverizers must withstand continuous mechanical load. A weak frame or poorly balanced rotating assembly can result in vibration, noise, bearing wear, belt instability, and poor powder consistency. The Model 800 is built with an industrial-grade structure and heavy-duty vibration damping to support continuous production. This is particularly important for plants operating multiple shifts or running 16 hours or more per day.

Low-noise fan design and stable conveying reduce workshop noise, with operating noise controlled to a level suitable for industrial production management. Lower noise improves the working environment and can help factories meet internal occupational safety standards. Although all pulverizing equipment requires appropriate safety and hearing protection procedures, a better-controlled machine design reduces unnecessary noise stress.

Imported NSK bearings are used in the listed configuration to improve rotation stability and support long service life. Bearings are critical to pulverizer reliability because the grinding system operates at high speed and under variable load. High-quality bearings reduce the risk of abnormal vibration and heat, helping maintain safe operation and consistent performance.

Stainless steel piping improves material cleanliness and durability. In PVC powder production, clean conveying lines reduce contamination risk and support higher-value powder output. Stainless steel also provides better resistance to wear and corrosion than ordinary materials in many operating environments. Combined with a dust collection system, the conveying design supports cleaner production and easier workshop management.

Application in PVC Pipe and Profile Recycling

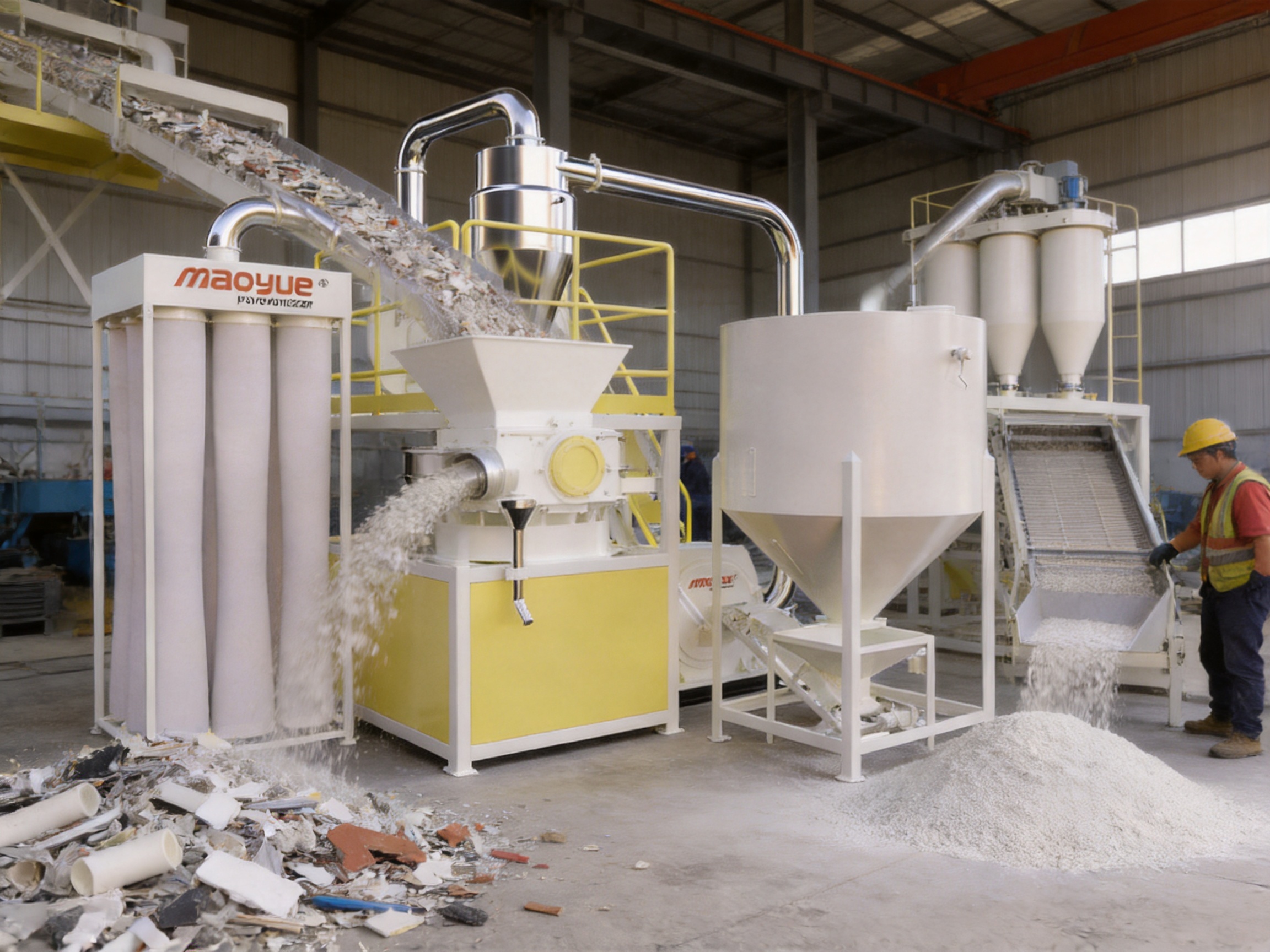

One of the most important applications of the Model 800 is large-scale recycling of PVC pipes and profiles. Construction waste PVC pipes, door and window profiles, extrusion scrap, trimming waste, and rejected profiles represent a large volume of recyclable material. When properly sorted, crushed, and pulverized, these materials can be transformed into powder suitable for producing recycled pipes, profiles, and building material products.

The challenge in this application is that pipe and profile materials may contain fillers, stabilizers, pigments, and different formulation histories. If the pulverizer cannot maintain stable fineness and low thermal damage, the recycled powder may have limited value. The Model 800 supports centralized processing of high-volume PVC waste into powder with controlled particle size and good purity, helping recycling plants increase the economic value of waste material.

For pipe manufacturers, in-house recycling reduces raw material costs and waste disposal pressure. Production scrap can be crushed and pulverized, then blended back into suitable formulations according to product requirements. This supports a circular production model in which waste generated during manufacturing is converted into reusable feedstock. With the Model 800, medium-to-large pipe and profile plants can process higher volumes without relying on multiple small machines.

For independent recycling centers, the ability to produce consistent powder improves market competitiveness. Customers purchasing recycled PVC powder often require reliable fineness, stable bulk density, low impurity levels, and predictable performance. A high-efficiency pulverizer helps recyclers offer more standardized material rather than low-value crushed flakes. This can open access to higher-value downstream customers.

Application in PVC Foam Board and Sheet Production

PVC foam boards, decorative panels, thick-walled sheets, and related building materials require well-prepared powder to achieve uniform foaming, smooth surfaces, stable thickness, and reliable mechanical properties. Recycled or reprocessed PVC powder can be used in these applications when powder quality is properly controlled. The Model 800 provides the grinding consistency needed for medium-to-large sheet and board production lines.

Foaming processes are sensitive to material dispersion and heat history. If powder is uneven, contaminated, overheated, or agglomerated, foaming may become unstable. This can lead to large cells, weak areas, warpage, uneven density, or poor surface finish. The Model 800 supports powder with narrow particle size distribution and good flowability, helping downstream extrusion or calendering lines maintain stable feeding and melting.

Building material enterprises can benefit from closed-loop recycling by using production scrap from foam boards and sheets. Instead of selling scrap at low value or paying for disposal, the plant can reprocess material into powder and reincorporate it into suitable product layers or formulations. This reduces material waste and improves production economy. The Model 800’s high-capacity operation is well suited for this type of integrated recycling system.

The machine is also valuable for manufacturers that need both output and product appearance quality. Decorative panels and construction boards often require smooth surfaces and consistent color. Powder that has been degraded during grinding may affect surface finish or final product performance. By controlling temperature and reducing adhesion, the Model 800 helps preserve powder quality for higher-grade applications.

Application in Cable and Wire Recycling

Cable and wire recycling often involves PVC sheaths, insulation scraps, and composite cable materials. These materials may include plasticizers, stabilizers, fillers, pigments, flame retardants, and other additives. They can be difficult to grind consistently because their mechanical behavior differs from rigid PVC pipe or profile scrap. The Model 800 is suitable for batch processing of high-filler PVC cable materials and helps produce powder with improved dispersion and minimal impurity impact when proper sorting and pre-processing are used.

Recycled cable PVC compounds require stable processing flowability and performance. If powder is too coarse, uneven, or contaminated, downstream compounding may become unstable. If the powder has been thermally damaged, electrical and mechanical properties may be affected. By providing controlled pulverizing, strong cooling, and stable screening, the Model 800 supports quality upgrading in cable recycling operations.

For cable recycling enterprises, output volume is also critical. Large quantities of cable sheath waste must be processed efficiently to make recycling profitable. The Model 800’s capacity range allows plants to handle industrial-scale input while maintaining powder consistency. This helps transform cable waste into reusable material for recycled cable compounds, floor materials, mats, modified PVC products, and other applications depending on formulation and local market requirements.

Application in Functional Modified PVC Materials

Functional modified PVC materials require careful control of raw material particle size and purity. Applications may include flame-retardant panels, weather-resistant profiles, automotive interior components, electronic enclosures, and chemical-resistant products. In these applications, powder consistency affects mixing uniformity, additive dispersion, mechanical behavior, and final product stability.

The Model 800 is suitable for producing PVC-based composite powders used in mid-to-high-end modification. With proper upstream sorting and formulation control, it can support powder purity targets and stable particle size consistency. This is important because functional additives must be evenly distributed during compounding. If the base PVC powder is inconsistent, additive dispersion becomes more difficult and final product performance may vary.

Modified PVC products often have higher added value than basic recycled materials. Therefore, the equipment used to prepare the powder must protect material quality. The Model 800’s wear-resistant grinding discs, strong cooling, and stable screening system contribute to a reliable powder foundation for downstream processing. For manufacturers seeking to move from low-grade recycling to higher-value modified products, this machine provides an important step toward industrial upgrading.

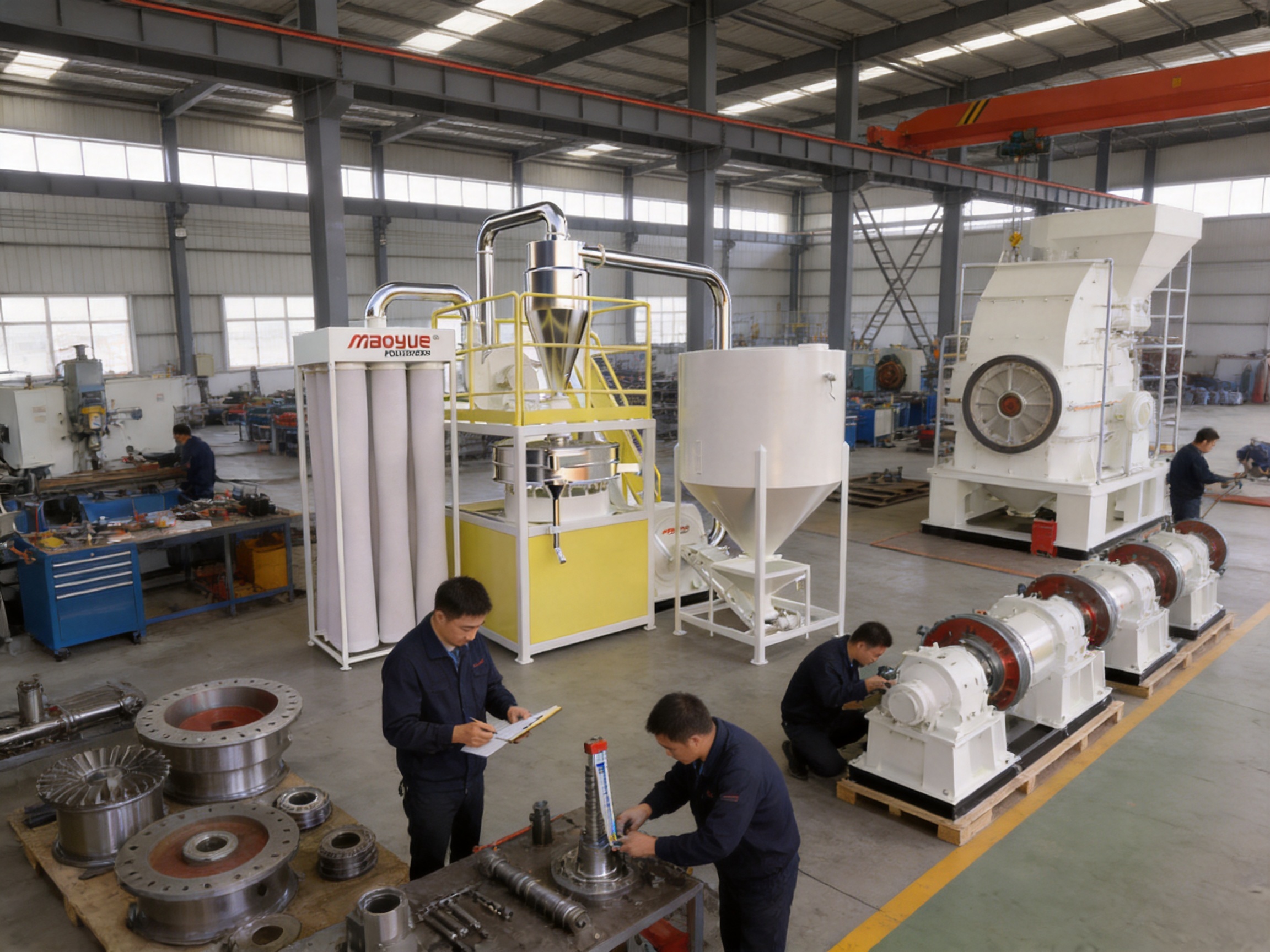

Manufacturing Strength Behind the Machine

The reliability of a pulverizer depends not only on its design concept but also on manufacturing quality. Changzhou Mao Yue Intelligent Equipment Co., Ltd. is a source manufacturer with 30 years of experience in plastic crushing and pulverizing equipment. The company has long focused on disc pulverizers and plastic size-reduction solutions for rotational molding, masterbatch, polymers, PVC, PE, recycling, and powder coating industries.

The company’s manufacturing capability supports the stability of the Model 800. It operates six processing workshops, each averaging about 1,400 square meters, allowing specialized production, machining, assembly, inspection, and customization work. A professional technical team regularly studies advanced machine technologies, including equipment concepts and manufacturing standards from Germany. This continuous learning supports improvements in accuracy, structure, balancing, and operational reliability.

Precision machining is especially important for pulverizers. Grinding discs, shafts, bearing seats, pulleys, and rotating components must be manufactured with tight tolerances. Even small deviations can cause vibration, uneven wear, noise, and unstable powder quality. The factory is equipped with Taiwan-imported high-precision grinding machines built to German standards, German dynamic balancing equipment, and Japanese welding systems. These manufacturing assets help ensure accurate components, stable machine frames, and reliable long-term performance.

Dynamic balancing is a major strength in pulverizer manufacturing. High-speed rotating parts must be balanced to reduce vibration and protect bearings. A machine with poor balancing may perform acceptably at the beginning but develop serious maintenance problems over time. German dynamic balancing equipment helps improve rotational stability and contributes to smoother operation, lower noise, and longer component life.

Welding quality also affects machine durability. Pulverizers experience mechanical load, vibration, and long operating hours. Japanese welding systems support stable weld quality and structural strength. Strong, accurate welding helps prevent deformation, cracking, misalignment, and vibration issues. Combined with precision machining and assembly inspection, this contributes to the industrial reliability expected from the Model 800.

Quality Certifications and Customer Support

Changzhou Mao Yue Intelligent Equipment Co., Ltd. has obtained CE mechanical certification and ISO 9001 quality management system certification. These certifications reflect attention to machine safety, manufacturing process control, and quality management. For international buyers, certification is important because equipment must meet safety expectations and support stable production after installation.

The company has built long-term partnerships with more than 5,000 enterprises in domestic and international markets. This broad customer base provides practical application experience across different materials, plant layouts, output requirements, and operating conditions. Such experience is valuable because pulverizing solutions often require customization. Raw material characteristics, desired fineness, dust control requirements, cooling water conditions, and downstream process needs can vary greatly between customers.

Customization is one of the company’s strengths. The Model 800 can be adapted according to customer production goals, material type, electrical standards, screening requirements, feeding method, dust collection design, and line integration needs. A pulverizer is most effective when it is matched with the full production process, including crushing, conveying, metal removal, feeding, grinding, screening, cooling, dust collection, and powder storage. The manufacturer’s experience in crushing and pulverizing lines allows it to provide more complete solutions rather than only a single machine.

Service is also important for long-term success. Customers need guidance on installation, operation, disc adjustment, maintenance, bearing care, cooling water management, screen selection, and troubleshooting. A source manufacturer with deep technical knowledge can support customers more effectively than a trading company or general equipment supplier. This reduces start-up risk and helps operators achieve stable production more quickly.

Why the Model 800 Is a Strong Choice for Medium-to-Large PVC Plants

The Model 800 is especially suitable for enterprises that have reached the limits of smaller pulverizers but do not want unnecessary complexity. It offers a practical middle-to-high capacity solution with strong output, manageable operation, and durable industrial design. For plants processing 15 to 20 tons per day, a stable pulverizer can significantly improve production planning and reduce the pressure caused by bottlenecks.

Its advantages are clear in several areas. First, the machine improves capacity compared with smaller systems, helping factories process more material with fewer machines. Second, it supports energy-saving operation by improving grinding efficiency and reducing repeated processing. Third, the wear-resistant alloy grinding discs lower the frequency of maintenance and replacement under abrasive PVC conditions. Fourth, the cooling system protects PVC powder quality by reducing thermal damage. Fifth, the vibration damping and stable structure support long-shift operation.

Competitor machines may offer similar nominal motor power or capacity claims, but actual production value depends on integrated performance. A pulverizer must maintain output, fineness, temperature, noise, vibration, and wear life at the same time. The Model 800 is designed as an industrial system rather than a simple grinding unit. Its combination of mechanical strength, cooling, airflow, screening, and manufacturing precision helps it deliver more dependable performance in real factory conditions.

For companies focused on high-value recycling, the Model 800 helps upgrade waste material into powder with better market value. For manufacturers focused on internal scrap reuse, it helps reduce raw material cost and improve circular production. For modified material producers, it provides a stable powder base for more advanced formulations. These advantages make the machine a strong investment for enterprises seeking higher efficiency, better quality, and more sustainable PVC production.

Operational Recommendations for Best Performance

To achieve the best results from the Model 800, raw material preparation should be carefully managed. PVC waste should be sorted by material type, cleaned when necessary, and crushed to a suitable feeding size before pulverizing. Metal removal is essential because metal contaminants can damage grinding discs and create safety risks. The listed iron-removal feeding arrangement helps protect the machine, but upstream sorting and inspection remain important.

Moisture control also affects output and powder quality. Wet material can reduce grinding efficiency, cause clogging, increase adhesion risk, and affect screening. Materials should be dried or stored properly when moisture is present. Consistent feeding is another key factor. Overfeeding may overload the motor and increase heat, while underfeeding reduces efficiency and may create unstable powder. Operators should adjust feeding rate according to motor load, powder temperature, and screening performance.

Grinding disc gap and condition should be inspected regularly. As discs wear, particle size and output may change. Timely adjustment helps maintain powder consistency and prevents unnecessary energy consumption. When discs reach the end of service life, replacement or resurfacing should be planned to avoid unexpected downtime. Preventive maintenance is more economical than emergency repair.

Cooling water flow and temperature should be monitored. Insufficient cooling can lead to powder degradation, adhesion, and capacity reduction. Operators should ensure that cooling lines are clean and that inlet and outlet circulation is stable. Dust collection bags and air paths should also be maintained to preserve airflow, workshop cleanliness, and conveying efficiency.

Q&A Section

What materials is the Model 800 PVC Pulverizer mainly designed to process?

It is mainly designed for rigid and semi-rigid PVC materials, including waste PVC pipes, door and window profiles, construction scrap, foam board scrap, sheet materials, cable sheath materials, wire scraps, and high-filler PVC compounds. With proper configuration and pre-processing, it can also support PVC-based modified material powder preparation.

What is the typical production capacity?

Depending on configuration, material type, mesh size, filler content, feeding condition, and cooling performance, the capacity can generally range from approximately 400 to 800 kg/h. For large production systems, this supports daily processing targets of around 15 to 20 tons under suitable operating conditions.

Why is cooling so important for PVC pulverizing?

PVC is sensitive to heat. Excessive grinding temperature can cause softening, adhesion, discoloration, degradation, agglomeration, and unstable downstream processing. The Model 800 uses water cooling and can be configured with enhanced cooling control to help maintain powder quality during high-output operation.

How does the Model 800 reduce operating costs?

It reduces operating costs by increasing output, improving grinding efficiency, reducing energy consumption per kilogram of qualified powder, extending grinding disc service life, lowering downtime, and producing powder with better downstream value. Its inverter control also helps operators adapt machine speed to different material conditions.

What makes the grinding discs suitable for abrasive PVC?

The machine uses high-chromium wear-resistant alloy grinding discs. These discs are designed to withstand abrasion from high-filler and high-calcium PVC materials, extending service life and helping maintain stable fineness for longer production periods.

Can the machine be used in a complete crushing and pulverizing line?

Yes. The Model 800 can be integrated with crushing, conveying, metal removal, feeding, screening, dust collection, cooling, and powder storage systems. This makes it suitable for industrial recycling lines and in-house scrap reuse systems.

Is the Model 800 better than a smaller pulverizer?

For high-volume PVC powder production, yes. It provides higher capacity, stronger industrial structure, better long-shift stability, and improved production economy. Smaller pulverizers may be suitable for limited output, but medium-to-large plants often require the Model 800 class to remove capacity bottlenecks.

What company capabilities support the quality of this machine?

Changzhou Mao Yue Intelligent Equipment Co., Ltd. has 30 years of experience in plastic pulverizing equipment, six processing workshops, precision grinding machines, German dynamic balancing equipment, Japanese welding systems, CE certification, ISO 9001 certification, and long-term partnerships with more than 5,000 enterprises. These strengths support product reliability, customization, and after-sales technical service.

Conclusion

The Model 800 PVC High-Efficiency Energy-Saving Pulverizer is a high-value solution for industrial PVC powder production. It combines strong capacity, efficient shear grinding, durable alloy discs, advanced cooling, inverter control, stable screening, vibration damping, and reliable manufacturing quality. For medium-to-large PVC recycling plants, pipe and profile manufacturers, foam board producers, cable recycling companies, and modified material enterprises, it provides the performance needed to convert PVC waste and production scrap into consistent, usable, high-value powder.

Its strength lies not only in output but also in balanced long-term performance. A successful pulverizer must deliver capacity without sacrificing powder quality, energy efficiency, cooling safety, wear life, or operational stability. The Model 800 meets these requirements through a design focused on real factory conditions. It is more industrialized than smaller machines, easier to manage than oversized systems, and well suited to enterprises seeking strong ROI through higher output and better recycled material value.

Supported by the manufacturing experience, precision equipment, certification systems, and customization capability of Changzhou Mao Yue Intelligent Equipment Co., Ltd., the Model 800 stands as a dependable upgrade option for plants ready to improve production efficiency, reduce labor intensity, and build more stable PVC recycling and powder preparation operations.
